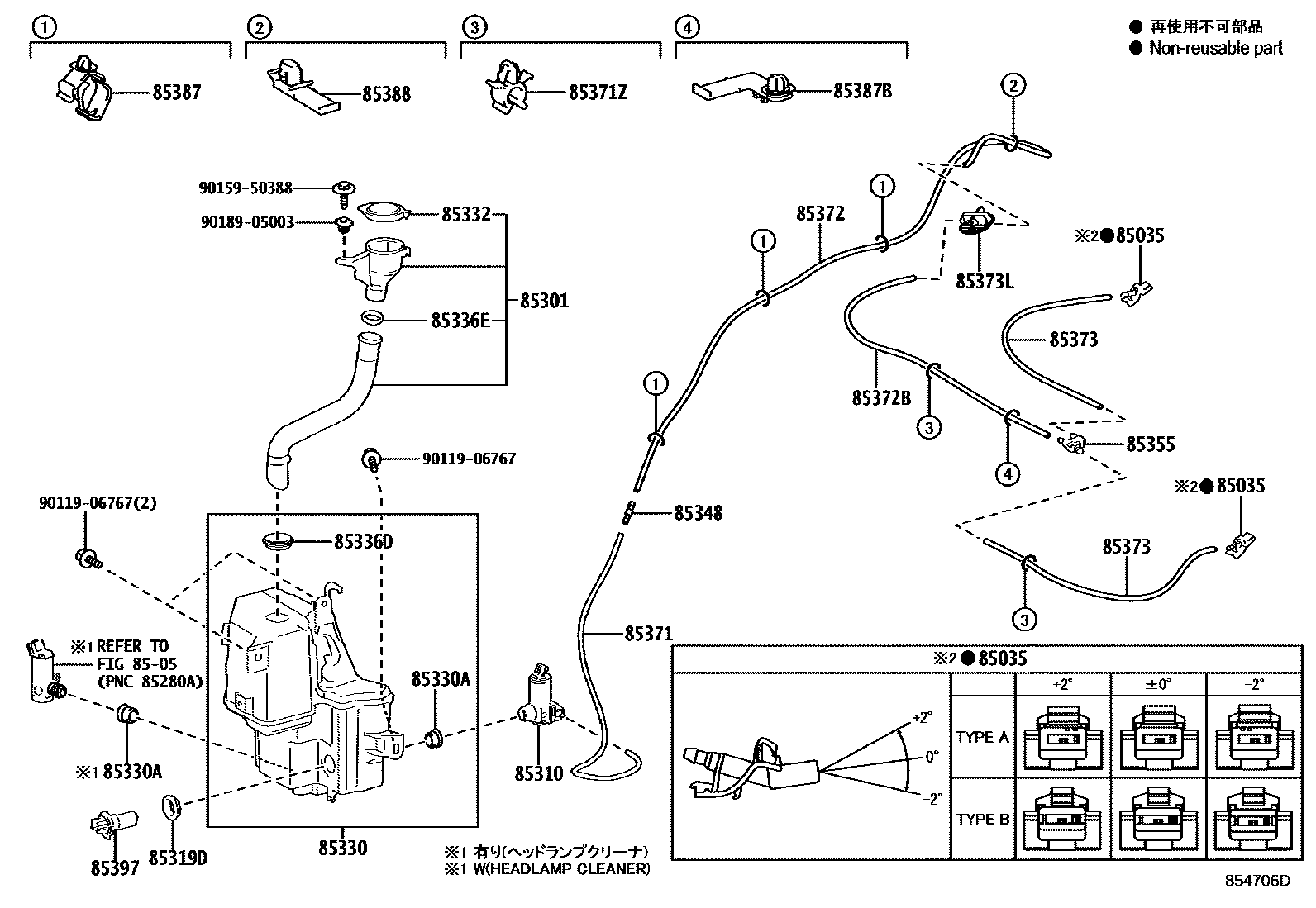

85035NOZZLE SUB-ASSY, WASHER

main85381-47090×2i202403-202506

main85381-47100×2i202111-202210

main85381-47110×2i202111-202210

main85381-78030×2i202403

main85381-78040×2i202210-202403

main85381-78050×2i202403-202506

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-78010i202111-202403

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100i202111-202403

85319DPACKING, FRONT WASHER

main85319-33230i202403

85330JAR ASSY, WINDSHIELD WASHER

main85355-78040supersedes 85315-78060i202403

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089×3i202403

85332CAP, WINDSHIELD WASHER JAR

main85316-78070i202403-202506

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160×2i202403

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320i202403-202506

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202403-202506

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202403-202506

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i202403

85371ZCLAMP, WASHER HOSE

main90469-07011×2i202403-202506

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i202403-202506

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i202403-202506

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2i202403-202506

85373LGROMMET, WASHER

main85373-12050i202403-202506

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350×2i202403-202506

85387BCLAMP, WASHER, NO.3

main82711-10500i202403-202506

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main82711-3A640i202403-202506

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i202403-202506

9011906767

main90119-06767

9015950388

main90159-50388

9018905003

main90189-05003
