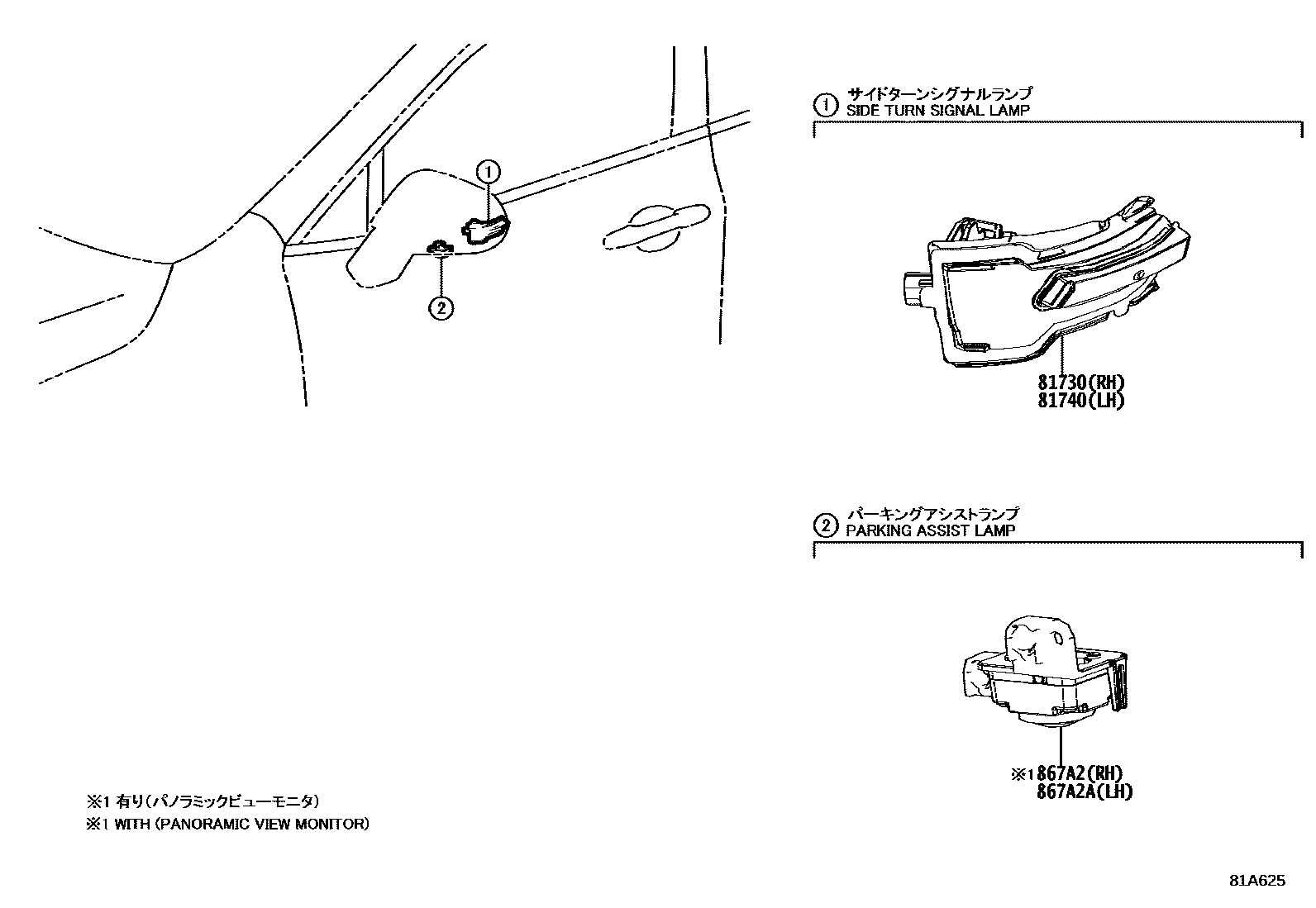

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-78020iAAZH2#,TAZA25202403

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-78020iAAZA2#202403-202506

867A2LIGHT, PARKING ASSIST, RH

main867A2-48040iAAZA2#202403-202506

main867A2-78010iAAZA2#,AAZH2#,TAZA25202111-202211

867A2ALIGHT, PARKING ASSIST, LH

main867A2-48030supersedes 867A2-48040iAAZA2#202403-202506

main867A2-78020iAAZA2#,AAZH2#,TAZA25202111-202211

4 parts on this diagram · 2 diagrams in section
