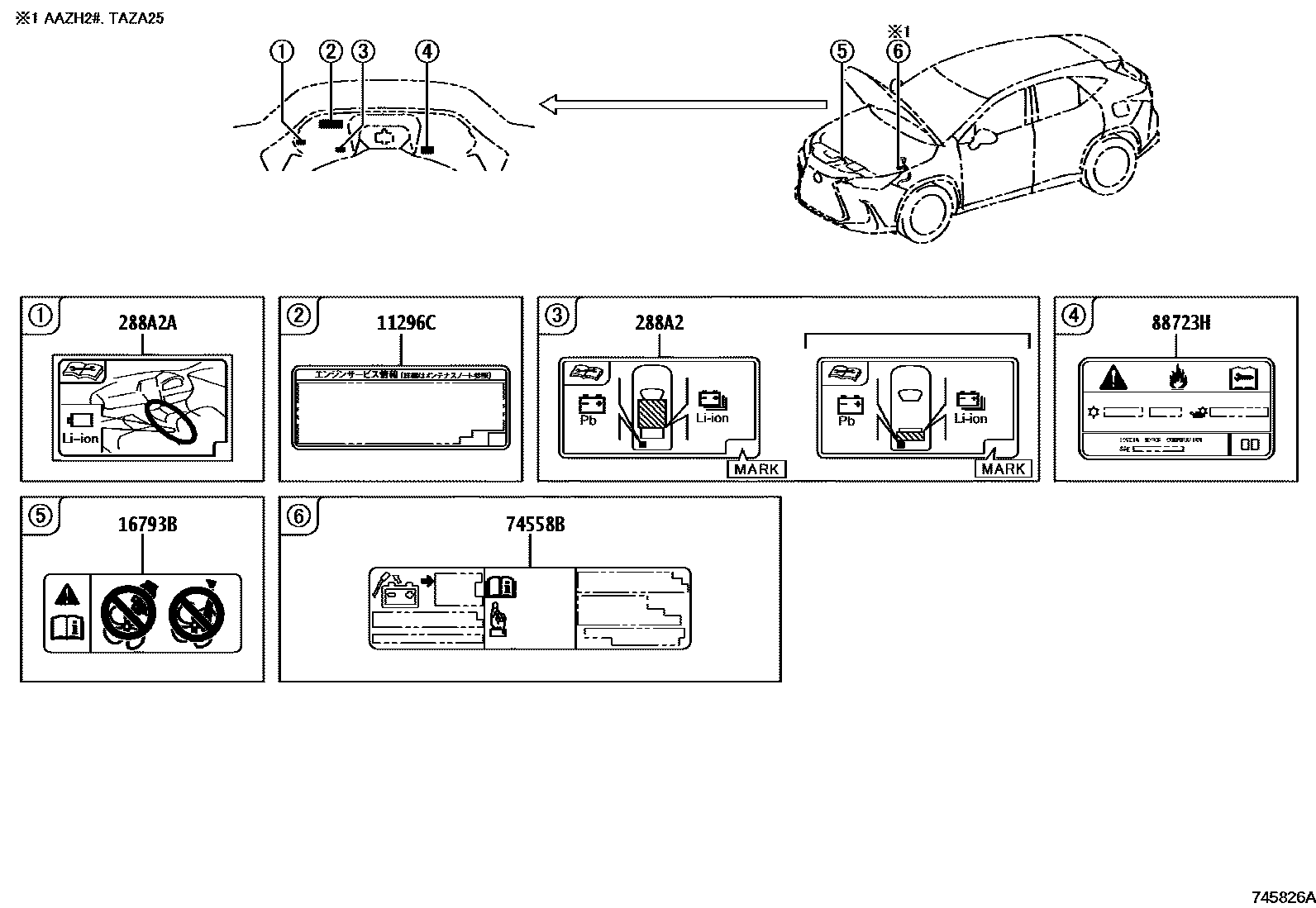

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1�������� 0002 1����� & ����

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-24020iA25#..AAZA2#,AAZH2#202111-202403

main11296-47080iT24AFTS..TAZA25202403

16793BLABEL, COOLING FAN INFORMATION

main16793-36030iA25AFKS..AAZA2#202403-202506

288A2LABEL, BATTERY LOCATION

main288A2-25020iA25AFXS..AAZH26202203-202403

main288A2-25030iA25AFXS..AAZH20,25202203-202403

288A2ALABEL, BATTERY LOCATION, NO.2

main288A2-25010iA25AFKS..AAZA2#202403-202506

74558BLABEL, BATTERY INSPECTION INFORMATION

main74558-78010iTAZA25202403

main74558-78020iAAZH2#202403

88723HLABEL, COOLER SERVICE CAUTION

main88723-42110iAAZH26202403

main88723-60590iTAZA25202403

main88723-76110iAAZH20,25202111-202403

6 parts on this diagram · 2 diagrams in section
