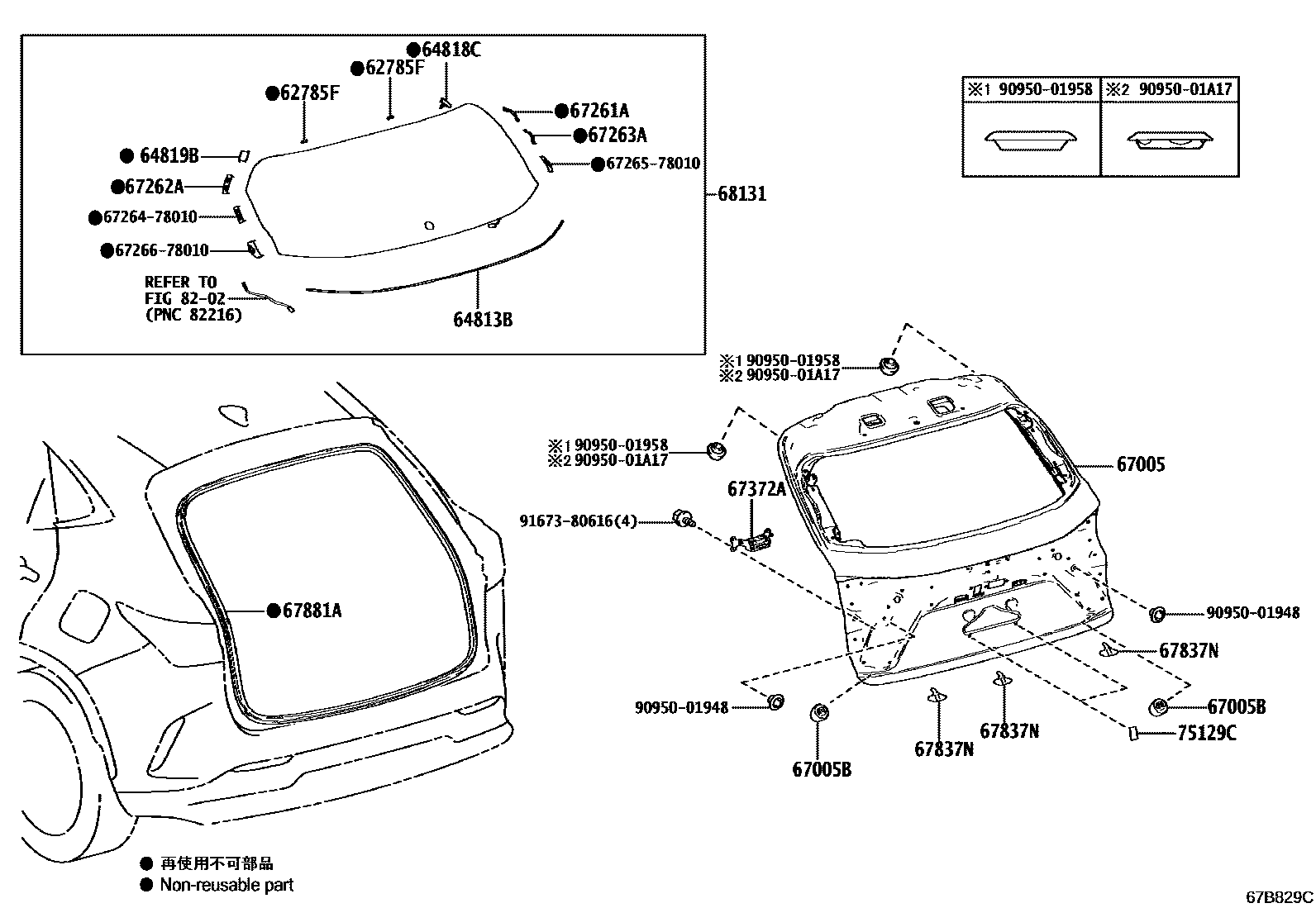

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62785FSPACER, BACK DOOR GLASS

main62785-60030×2iAAZA2#,AAZH2#,TAZA25202111-202403

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iAAZA2#202403-202506

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-78020iAAZA2#,AAZH2#,TAZA25202111-202403

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-78020iAAZA2#,AAZH2#,TAZA25202111-202403

67005PANEL SUB-ASSY, BACK DOOR

main67005-78170iAAZH2#,TAZA25202403

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09143×2iAAZA2#202403-202506

67261APLATE, BACK DOOR REINFORCEMENT, NO.1 RH

main67261-78020iAAZA2#202403-202506

67262APLATE, BACK DOOR REINFORCEMENT, NO.1 LH

main67262-78020iAAZA2#,AAZH2#,TAZA25202111-202403

67263APLATE, BACK DOOR REINFORCEMENT, NO.2 RH

main67263-78010iAAZH2#,TAZA25202403

67372AWEIGHT, BACK DOOR

main67372-78020iAAZA2#202403-202506

67837NSEAL, BACK DOOR DUST PROOF

main67837-78010×3iAAZA2#202403-202506

67881AWEATHERSTRIP, BACK DOOR

main67881-78021iAAZA2#202403-202506

68131GLASS, BACK DOOR

main68105-78200supersedes 68105-78170iAAZA2#,AAZH2#,TAZA25202303-202403

75129CCUSHION, REAR LICENCE PLATE

main75129-30010×2iAAZA2#202403-202506

8202WIRING & CLAMP

→ Go to FIG 82-02

6726478010BRACKET, BACK DOOR STOPPER, NO.4

main67264-78010

6726578010

main67265-78010

6726678010STOPPER, CENTER DOOR RAIL

main67266-78010

9095001948

main90950-01948

9095001958

main90950-01958

9095001A17

main90950-01A17

9167380616

main91673-80616

22 parts on this diagram · 2 diagrams in section
