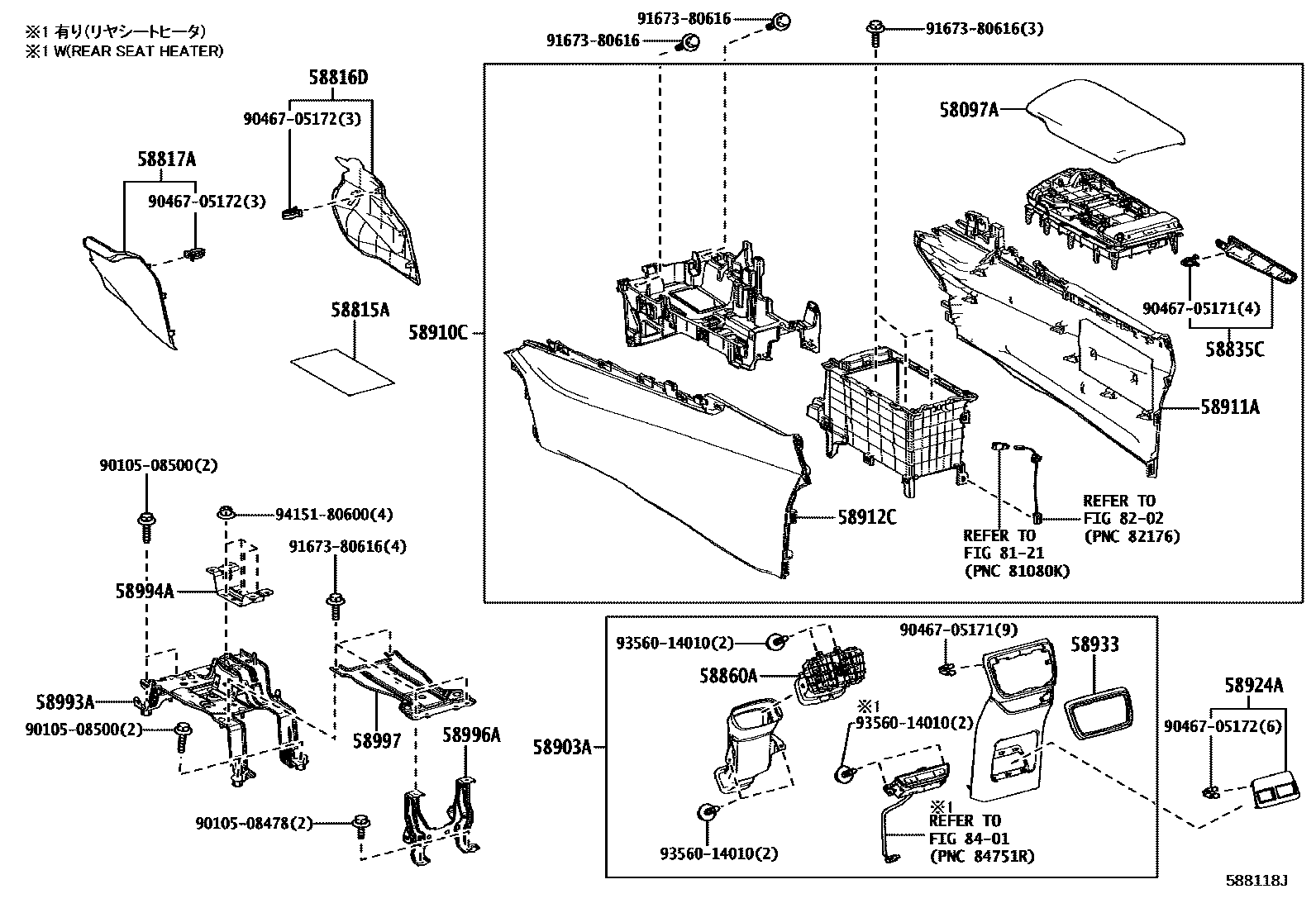

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

58097ACOVER SUB-ASSY, CONSOLE COMPARTMENT DOOR, INNER

main58097-78020-A4iTAZA25202111-202403

WHITE/LT.GRAY,TRIM0#

main58097-78020-A4iAAZH2#202201-202403

WHITE/LT.GRAY,TRIM03

main58097-78020-A4iAAZH2#202111-202201

WHITE/LT.GRAY,TRIM03,04

main58097-78020-A5iAAZA2#202111-202403

RICH CREAM/ORANGE,TRIM00,01,02

main58097-78020-A5iAAZA2#202111-202403

RICH CREAM/ORANGE,TRIM0#

main58097-78020-A5iAAZH26202201-202403

RICH CREAM/ORANGE,TRIM00,01

main58097-78020-A7iAAZA2#202403-202506

FROMAGE/SHELL,TRIM0#

main58097-78020-A7iAAZH2#202403

FROMAGE/SHELL,TRIM00,01

main58097-78020-C1iAAZH25202111-202506

BLACK/LT.GRAY,TRIM2#

main58097-78020-C1iAAZH20202403

BLACK/LT.GRAY,TRIM20,21,23

main58097-78020-C1iAAZH20202403

BLACK/LT.GRAY,TRIM23

main58097-78020-C1iAAZH20202403

BLACK/LT.GRAY,TRIM20,21,22,23

main58097-78020-D2iTAZA25202111-202403

FLARE RED/RED,TRIM3#

main58097-78020-D2iTAZA25202201-202403

FLARE RED/RED,TRIM33

main58097-78020-D2iAAZH2#202111-202201

FLARE RED/RED,TRIM33,34

main58097-78020-D4iAAZH20,25202111-202403

DK.ROSE/RED,TRIM30,31,32

main58097-78020-D4iAAZH26202201-202403

DK.ROSE/RED,TRIM30,31

main58097-78020-D4iAAZH20,25202111-202506

DK.ROSE/RED,TRIM3#

main58097-78020-E2iAAZH2#,TAZA25202111-202506

HAZEL/HAZEL,TRIM4#

main58097-78020-E4iAAZH25,26,TAZA25202403

KHAKI/DARK KAHKI,TRIM24

58815ACARPET, CONSOLE BOX

main58815-78030iAAZA2#,AAZH2#,TAZA25202111-202506

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-78020-C0iAAZA2#,AAZH2#202111-202506

BLACK,TRIM0#,2#,3#,4#

main58816-78020-C0iTAZA25202111-202403

BLACK,TRIM0#,2#,3#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-78020-C0iAAZA2#,AAZH2#202111-202403

BLACK,TRIM0#,2#,3#

main58817-78020-C0iAAZA2#202111-202506

BLACK,TRIM0#,2#,3#,4#

58835CORNAMENT, CONSOLE BOX

main58835-78020-A4iAAZH2#202201-202403

WHITE,TRIM03

main58835-78020-A4iAAZH2#202111-202403

WHITE,TRIM0#

main58835-78020-A4iAAZH2#202111-202201

WHITE,TRIM03,04

main58835-78020-A5iAAZA2#202111-202403

RICH CREAM,TRIM00,01,02

main58835-78020-A5iAAZH20,25202111-202403

RICH CREAM,TRIM0#

main58835-78020-A5iAAZH26202201-202403

RICH CREAM,TRIM00,01

main58835-78020-A6iAAZH2#202403

FROMAGE,TRIM00,01

main58835-78020-A6iAAZA2#202403-202506

FROMAGE,TRIM0#

main58835-78020-C1iAAZH25202403

BLACK,TRIM23,25

main58835-78020-C1iAAZH25202403

BLACK,TRIM20,21,22,23,25

main58835-78020-C1iAAZH25202111-202506

BLACK,TRIM2#

main58835-78020-C1iAAZH20202403

BLACK,TRIM20,21,23,25

main58835-78020-D2iTAZA25202201-202403

FLARE RED,TRIM33

main58835-78020-D2iAAZH2#202111-202403

FLARE RED,TRIM3#

main58835-78020-D2iAAZH2#202111-202201

FLARE RED,TRIM33,34

main58835-78020-D3iAAZA2#202111-202403

DK.ROSE,TRIM30,31,32

main58835-78020-D3iAAZA2#202111-202506

DK.ROSE,TRIM3#

main58835-78020-D3iAAZH26202201-202403

DK.ROSE,TRIM30,31

main58835-78020-E1iAAZH2#,TAZA25202111-202506

HAZEL,TRIM4#

main58835-78020-E3iAAZH25,26,TAZA25202403

KHAKI,TRIM24

58860AREGISTER ASSY, CONSOLE BOX

main58860-78020iAAZH2#,TAZA25202111-202506

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-78080-C0iTAZA25202111-202506

BLACK,TRIM0#,2#,3#,4#

main58903-78080-C0iAAZA2#,AAZH20,25202111-202403

BLACK,TRIM0#,2#,3#

main58903-78080-C0iAAZA2#202403-202506

main58903-78100-C0iAAZH20,25,TAZA25202111-202403

BLACK,TRIM0#,2#,3#,4#

main58903-78100-C0iAAZH26202111-202403

main58903-78100-C0iTAZA25202111-202403

58910CBOX ASSY, CONSOLE, REAR

main58910-78120-25iTAZA25202111-202112

BLACK/WHITE/LT.GRAY,TRIM03,04

sub58910-78121

main58910-78120-25iAAZH2#202111-202112

BLACK/WHITE/LT.GRAY,TRIM0#

sub58910-78121

main58910-78120-26iAAZA2#202111-202112

BLACK/CREAM/ORANGE,TRIM0#

sub58910-78121

main58910-78120-26iAAZA2#202111-202112

BLACK/CREAM/ORANGE,TRIM00,01,02

sub58910-78121

main58910-78120-27iAAZA2#,AAZH2#,TAZA25202111-202112

BLACK/CLACK/LT.GRAY,TRIM2#

sub58910-78121

main58910-78120-28iTAZA25202111-202112

BLACK/RED/RED,TRIM33,34

sub58910-78121

main58910-78120-28iAAZH2#202111-202112

BLACK/RED/RED,TRIM3#

sub58910-78121

main58910-78120-40iAAZA2#,AAZH2#202111-202112

BLACK/HAZEL/HAZEL,TRIM4#

sub58910-78121

main58910-78120-41iAAZA2#202111-202112

BLACK/DK.ROSE/RED,TRIM30,31,32

sub58910-78121

main58910-78120-41iAAZH2#202111-202112

BLACK/DK.ROSE/RED,TRIM3#

sub58910-78121

main58910-78121-25iAAZH2#202201-202403

BLACK/WHITE/LT.GRAY,TRIM03

main58910-78121-25iTAZA25202201-202403

BLACK/WHITE/LT.GRAY,TRIM0#

main58910-78121-26iAAZH20,25202201-202403

BLACK/RICH CREAM/ORANGE,TRIM00,01,02

main58910-78121-26iAAZH20,25202201-202403

BLACK/RICH CREAM/ORANGE,TRIM0#

main58910-78121-26iAAZH20,25202201-202403

BLACK/RICH CREAM/ORANGE,TRIM00,01

main58910-78121-27iAAZH25202403

BLACK/BLACK/LT.GRAY,TRIM23

main58910-78121-27iAAZA2#202201-202506

BLACK/BLACK/LT.GRAY,TRIM2#

main58910-78121-27iAAZH26202403

BLACK/BLACK/LT.GRAY,TRIM20,21,23

main58910-78121-27iAAZH26202403

BLACK/BLACK/LT.GRAY,TRIM20,21,22,23

main58910-78121-28iAAZH2#202201-202403

BLACK/FLARE RED/RED,TRIM3#

main58910-78121-28iAAZH2#202201-202403

BLACK/FLARE RED/RED,TRIM33

main58910-78121-40iAAZA2#,AAZH2#202201-202506

BLACK/HAZEL/HAZEL,TRIM4#

main58910-78121-41iAAZH20,25202201-202506

BLACK/DK.ROSE/RED,TRIM3#

main58910-78121-41iAAZH20,25202201-202403

BLACK/DK.ROSE/RED,TRIM30,31,32

main58910-78121-41iAAZH20,25202201-202403

BLACK/DK.ROSE/RED,TRIM30,31

main58910-78121-44iAAZH2#202403

BLACK/FROMAGE/SHELL,TRIM00,01

main58910-78121-44iAAZA2#202403-202506

BLACK/FROMAGE/SHELL,TRIM0#

main58910-78121-46iAAZH25,26,TAZA25202403

BLACK/KHAKI/DARK KAHKI,TRIM24

58911APANEL, BOX SIDE, NO.1

main58911-78040-C0iTAZA25202111-202506

BLACK,TRIM0#,2#,3#,4#

main58911-78040-C0iAAZA2#,AAZH2#202111-202403

BLACK,TRIM0#,2#,3#

58912CPANEL, BOX SIDE, NO.2

main58912-78040-C0iTAZA25202111-202403

BLACK,TRIM0#,2#,3#

main58912-78040-C0iAAZA2#,AAZH2#202111-202506

BLACK,TRIM0#,2#,3#,4#

58924APANEL, CONSOLE REAR END, NO.2

main58924-78070-C0iAAZA2#,AAZH2#202111-202403

BLACK,TRIM0#,2#,3#

main58924-78070-C0iAAZA2#,AAZH2#202111-202506

BLACK,TRIM0#,2#,3#,4#

58933GARNISH, CONSOLE REAR END PANEL

main58933-78010iAAZA2#202111-202506

58993ABRACKET, CONSOLE BOX MOUNTING, LOWER

main58993-78030iAAZA2#202111-202506

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-78020iAAZH2#,TAZA25202111-202506

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-78060iAAZA2#,AAZH2#,TAZA25202111-202506

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-78020iAAZH2#,TAZA25202111-202506

8121

8202

8401

9010508478

main90105-08478

9010508500

main90105-08500

9046705171

main90467-05171

9046705172

main90467-05172

9167380616

main91673-80616

9356014010

main93560-14010

9415180600

main94151-80600

26 parts on this diagram · 4 diagrams in section
