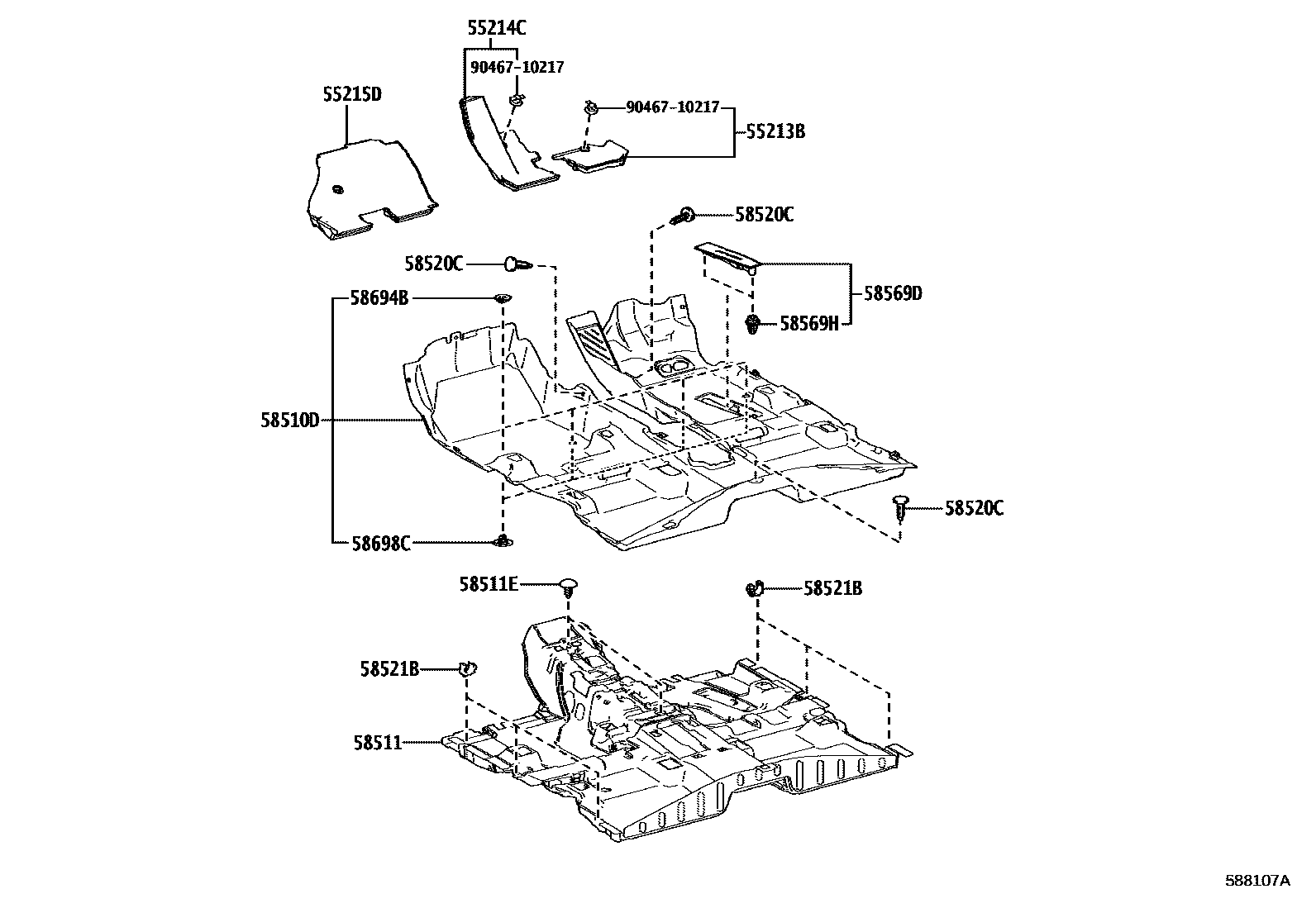

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
58511MAT, FLOOR, FRONT
58511ECLIP(FOR FRONT FLOOR MAT)
LT.GRAY
BLACK
58520CCLIP(FOR FRONT FLOOR CARPET)
LT.GRAY
58521BHOOK, FLOOR CARPET
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#
58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046710217
main90467-10217
13 parts on this diagram · 3 diagrams in section
