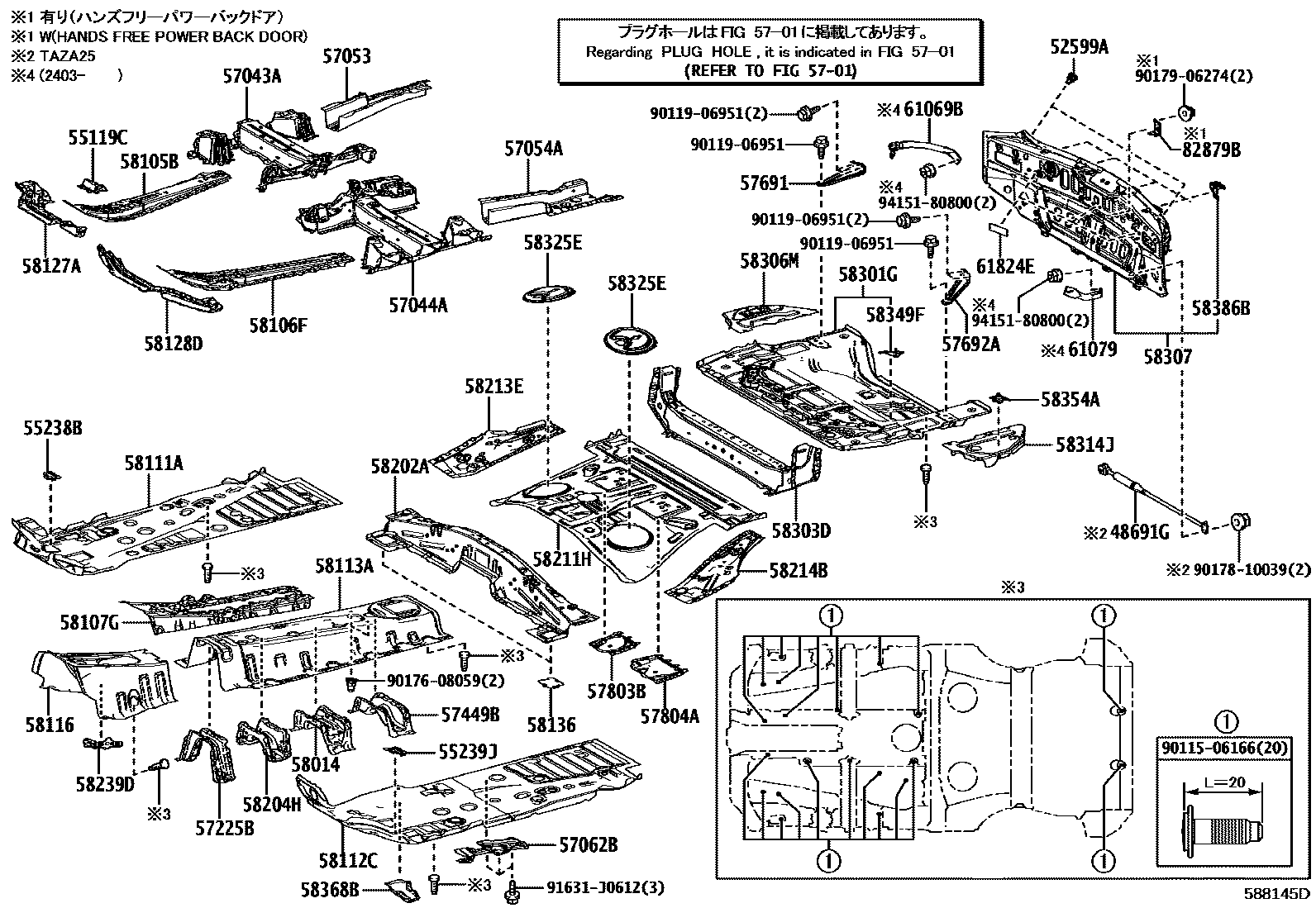

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

48691GDAMPER, SUSPENSION TOWER

main48691-78050iAAZH2#; AAZH25,26; TAZA25202403

52599ASTOPPER, REAR BUMPER, UPPER

main52599-76010×2iAAZA2#202403-202506

55119CBRACKET, CLUTCH BOOSTER

main55119-42020iAAZA2#202403-202506

55238BPLATE, DASH PANEL INSULATOR, LOWER RH

main55238-42010iAAZH2#,TAZA25202403

55239JPLATE, DASH PANEL INSULATOR, LOWER LH

main55239-42010iAAZH2#,TAZA25202403

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-42030iAAZA2#202403-202506

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-42030iAAZA2#202403-202506

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-42020iAAZA2#202403-202506

main57053-78010iTAZA25202111-202403

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-42020iAAZH26202403

main57054-42030iAAZH20,25,TAZA25202403

57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH

main57062-42020iTAZA25202403

main57062-78040iAAZH20,25202111-202403

57225BBRACE, FRONT MOUNTING BRACKET

main57225-42010iAAZA2#,AAZH2#,TAZA25202111-202403

57449BRETAINER, CENTER FLOOR CROSSMEMBER, LH

main57449-78010iTAZA25202403

57691BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH

main57691-78010iAAZA2#,AAZH2#,TAZA25202111-202403

57692ABRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH

main57692-78010iAAZH2#,TAZA25202403

57803BREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH

main57803-42020iAAZA2#,AAZH20,25,TAZA25202111-202403

main57803-42030iAAZH26202111-202403

57804AREINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH

main57804-42020iAAZH20,25,TAZA25202403

main57804-42030iAAZH26202111-202403

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-42030iAAZH2#,TAZA25202403

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-42040iAAZH20,25,TAZA25202403

main58105-78010iAAZA2#202403-202506

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-42010iAAZA2#202403-202506

main58106-78010iAAZA2#,AAZH2#,TAZA25202111-202403

58107GREINFORCE SUB-ASSY, PARKING BRAKE BASE

main58107-42010iAAZA2#,TAZA25202111-202403

main58107-42020iAAZH2#202403

58111APAN, FRONT FLOOR, RH

main58111-42220iAAZA2#202403-202506

main58111-78020iAAZA2#,AAZH2#,TAZA25202111-202403

58112CPAN, FRONT FLOOR, LH

main58112-42030iAAZA2#202403-202506

main58112-78010iAAZA2#202403-202506

58113APANEL, FRONT FLOOR, CENTER

main58113-42030iTAZA25202403

main58113-42040iAAZH2#202403

58116PLATE, SHIFT CABLE MOUNTING

main58116-78010iAAZA2#202403-202409

main58116-78011iAAZH2#,TAZA25202409

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-42021iAAZA2#202403-202506

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-42021iAAZA2#202403-202506

58136COVER, FRONT FLOOR HOLE

main58136-42030×2iAAZA2#202403-202506

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-42030iAAZA2#,TAZA25202111-202309

main58202-42031iAAZA2#,TAZA25202310-202403

main58202-42040iAAZH20,25202111-202403

main58202-42050iAAZH26202403

58204HPAN SUB-ASSY, CENTER FLOOR, REAR

main58204-78010iAAZA2#202111-202403

main58204-78020iTAZA25202403

58211HPAN, CENTER FLOOR

main58211-42020iAAZA2#,TAZA25202111-202403

main58211-42030iAAZH20,25202111-202403

main58211-42040iAAZH26202403

58213EPANEL, SEAT FLOOR SIDE, RH

main58203-42020iAAZH26202403

main58213-48050iAAZH20,25,TAZA25202403

58214BPANEL, SEAT FLOOR SIDE, LH

main58214-48040iAAZA2#202403-202506

58239DBRACKET, CABLE CLAMP

main58239-42010iAAZA2#202403-202506

main58239-42020iAAZH26202403

58301GPAN SUB-ASSY, REAR FLOOR

main58301-78901iAAZA2#202403-202506

main58301-78902iAAZH20,25202111-202303

main58301-78903iAAZH26202111-202303

main58301-78904iAAZH20,25202403

main58301-78905iAAZH26202303-202403

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-42020iAAZA2#,AAZH2#,TAZA25202111-202403

58306MPANEL SUB-ASSY, REAR FLOOR SIDE

main58306-78010iAAZH2#202111-202403

main58306-78020iAAZA2#202403-202506

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-78020iAAZA2#,AAZH2#,TAZA25202111-202403

main58307-78021iAAZH2#,TAZA25202403

58314JPANEL, REAR FLOOR SIDE, LH

main58314-78010iAAZH2#,TAZA25202403

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-10051×2iAAZA2#,TAZA25202111-202403

main58325-42040iAAZH20,25202403

main58325-42050iAAZH26202403

58349FRETAINER, REAR FLOOR SUPPORT STAY

main58349-78010iTAZA25202403

58354ASTAY, REAR FLOOR, LH

main58354-78010iAAZA2#,AAZH2#,TAZA25202111-202211

main58354-78011iAAZH2#,TAZA25202403

58368BBRACKET, FUEL TUBE, NO.2

main58368-42010iAAZA2#,AAZH20,25,TAZA25202111-202403

main58368-42020iAAZH26202403

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020×4iAAZA2#202403-202506

61069BBRACE SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 RH

main61069-78010iAAZA2#202403-202506

61079BRACE SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 LH

main61079-78010iAAZA2#202403-202506

61824EPLATE, NOISE CONTROL, NO.1

main61824-78010×3iAAZA2#202403-202506

82879BADAPTER, COMPUTER INTEGRATION BOX

main82879-78040iAAZA2#,TAZA25202111-202212

9011506166

main90115-06166

9011906951

main90119-06951

9017608059

main90176-08059

9017810039

main90178-10039

9017906274

main90179-06274

91631J0612

main91631-J0612

9415180800

main94151-80800

55 parts on this diagram · 3 diagrams in section
