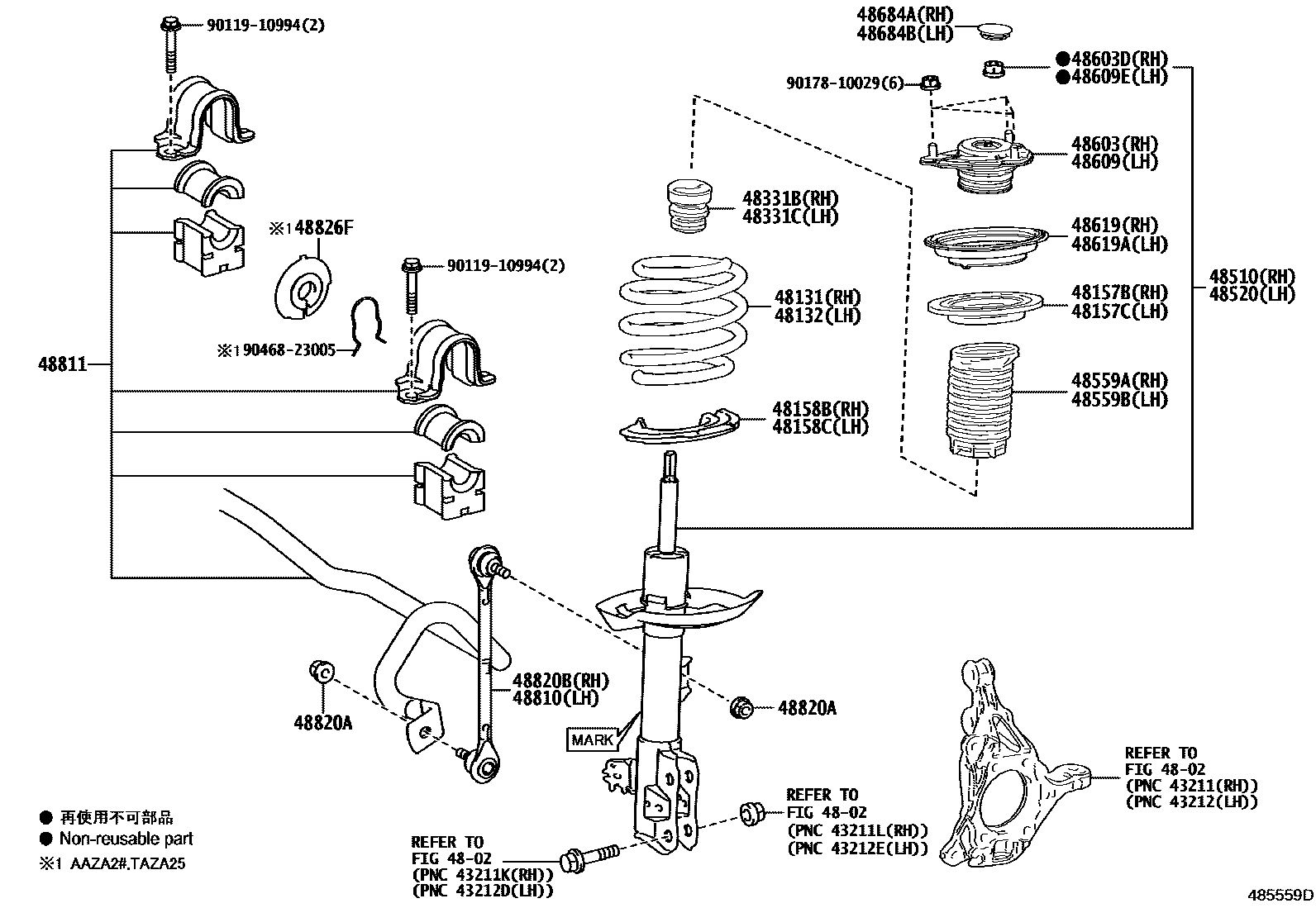

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1*AVS

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

48131SPRING, FRONT COIL, RH

main48131-78210iAAZA2#202111-202403

main48131-78220iAAZH20,25202111-202403

main48131-78280iAAZA2#202403-202506

main48131-78290iAAZH20,25202403

main48131-78250iAAZH25202403

main48131-78260supersedes 48131-78300iTAZA25202403

main48131-78270supersedes 48131-78310iAAZH26202403

48132SPRING, FRONT COIL, LH

main48131-78210iAAZA2#202111-202403

main48131-78220iAAZH20,25202111-202403

main48131-78280iAAZA2#202403-202506

main48131-78290iAAZH20,25202403

main48131-78250iAAZH25202403

main48131-78260supersedes 48131-78300iTAZA25202403

main48131-78270supersedes 48131-78310iAAZH26202403

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-33090iAAZA2#202403-202506

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-33090iAAZA2#202403-202506

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-33110iAAZA2#202403-202506

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-33110iAAZA2#202403-202506

48331BBUMPER, FRONT SPRING, RH

main48331-33101iAAZA2#,AAZH2#,TAZA25202308-202403

main48331-42140iAAZA2#,AAZH2#,TAZA25202111-202308

48331CBUMPER, FRONT SPRING, LH

main48331-33101iAAZA2#,AAZH2#,TAZA25202308-202403

main48331-42140iAAZA2#,AAZH2#,TAZA25202111-202308

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-79595iAAZH20202212-202303

main48510-79615iAAZH25202111-202303

main48510-79635iAAZH26202111-202303

main48510-79655supersedes 48510-79615iAAZH2#; TAZA25202403

main48510-79745iAAZA2#,AAZH20,25202303-202403

main48510-79755iAAZH26202303-202403

main48510-79885iAAZH20,25202403

main48510-80C66iAAZH26202403

main48510-79665iAAZH25,26202111-202403

main48510-80C68iAAZH25,26,TAZA25202403

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-79585iAAZA2#202111-202303

main48520-79605iAAZH25202111-202303

main48520-79625iAAZH26202111-202303

main48520-79645supersedes 48520-79605iAAZH20; TAZA25202111-202403

main48520-79735iAAZA2#,AAZH20,25202303-202403

main48520-79745iAAZH26202303-202403

main48520-79885iAAZA2#202403-202506

main48520-80810iAAZH26202403

main48520-79655iAAZH25,26202111-202403

main48520-80812iAAZH25,26,TAZA25202403

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-42010iAAZA2#202403-202506

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-42010iAAZA2#,AAZH2#,TAZA25202111-202403

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42080iAAZH2#,TAZA25202403

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iAAZA2#202403-202506

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42080iAAZA2#202403-202506

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iAAZA2#202403-202506

48619BEARING, STRUT MOUNTING, RH

main48619-42040iAAZA2#202403-202506

48619ABEARING, STRUT MOUNTING, LH

main48619-42040iAAZA2#202403-202506

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-33030iAAZA2#,AAZH2#,TAZA25202111-202403

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-33030iAAZH2#,TAZA25202403

48810LINK ASSY, FRONT STABILIZER, LH

main48820-78010iAAZA2#202403-202506

48811BAR, STABILIZER, FRONT

main48804-78020iAAZA2#,AAZH2#,TAZA25202111-202402

main48804-78021iAAZA2#202412-202506

48820ANUT(FOR FRONT STABILIZER LINK)

main94151-21241×4iAAZA2#202403-202506

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-78010iAAZA2#,AAZH2#,TAZA25202111-202403

48826FPROTECTOR, STABILIZER

main48826-42010iAAZA2#202403-202506

9011910994

main90119-10994

9017810029

main90178-10029

9046823005

main90468-23005

29 parts on this diagram · 2 diagrams in section
