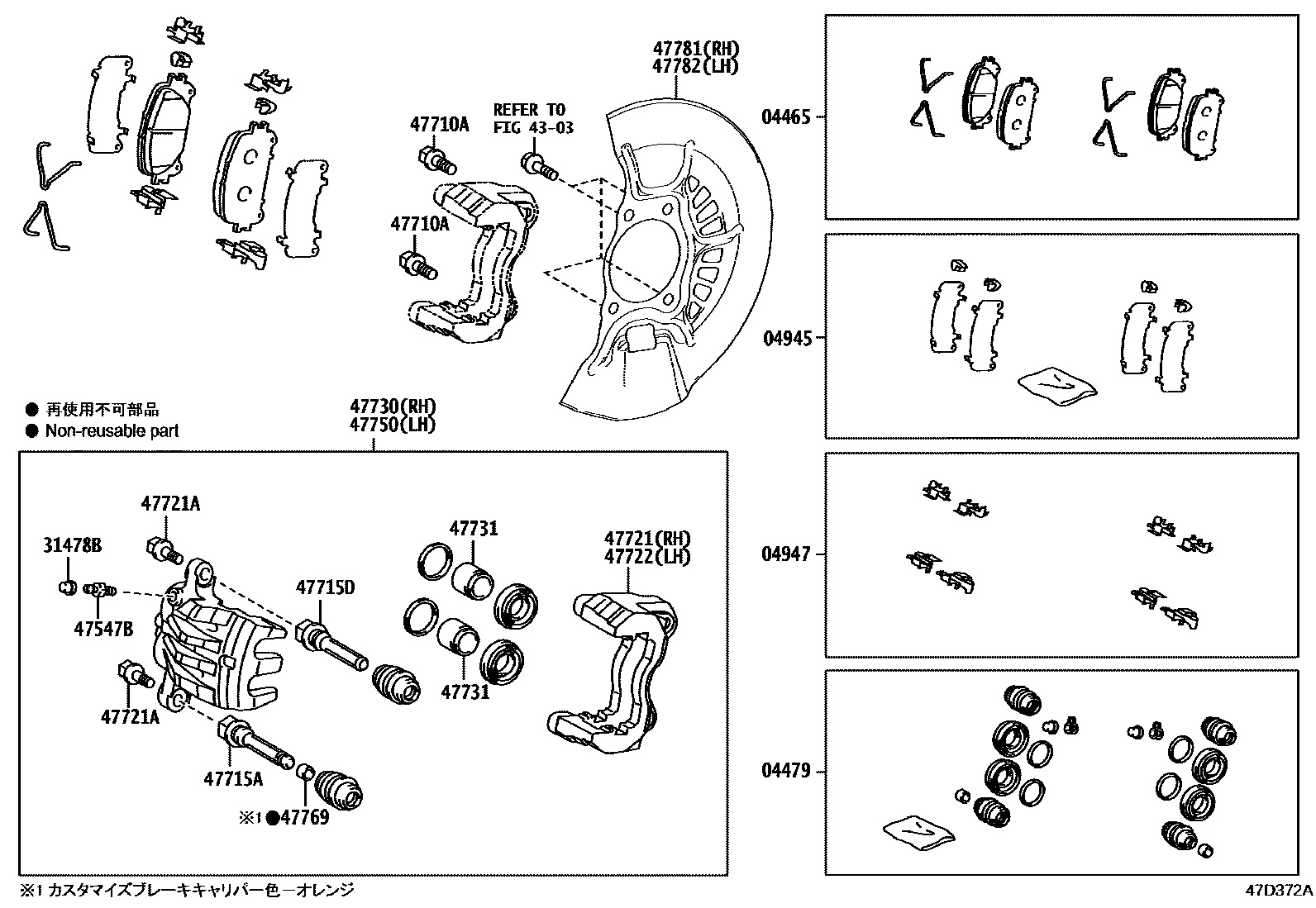

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-78010iAAZA2#202403-202506

main04465-78020iAAZH26202111-202403

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48200iAAZA2#202403-202506

main04478-42030iAAZH26202403

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iAAZA2#,AAZH20,25,TAZA25; AAZH20,25,TAZA25202111-202403

main04945-48190iAAZH26202403

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iAAZA2#202403-202506

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAAZA2#202403-202506

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130×2iAAZA2#202403-202506

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401×4iAAZA2#202403-202506

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150×2iAAZA2#202403-202506

main47715-48150×2supersedes 47714-48150iAAZH26202111-202403

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150×2iAAZA2#202403-202506

main47714-48150×2supersedes 47715-48150iAAZH26202111-202403

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48150iAAZA2#,AAZH20,25,TAZA25202111-202403

main47721-78040supersedes 47721-48150iAAZH20,25,TAZA25202403

main47721-78050supersedes 47721-42130iAAZH26202111-202403

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602×4iAAZA2#202403-202506

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48140iAAZA2#,AAZH20,25,TAZA25202111-202403

main47722-78040supersedes 47722-48140iAAZH20,25,TAZA25202403

main47722-78050supersedes 47722-42130iAAZH26202403

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48150iAAZA2#202403-202506

main47730-78040supersedes 47730-48150iAAZH20,25,TAZA25202403

main47730-78050supersedes 47730-42130iAAZH26202403

47731PISTON, FRONT DISC BRAKE

main47731-48150×4iAAZH2#,TAZA25; AAZH20,25,TAZA25; AAZH26202403

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48110iAAZA2#,AAZH20,25,TAZA25202111-202403

main47750-78040supersedes 47750-48110iAAZH20,25,TAZA25202403

main47750-78050supersedes 47750-42130iAAZH26202111-202403

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150×2iAAZH2#,TAZA25; AAZH26202111-202403

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAAZA2#202403-202506

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAAZA2#202403-202506

18 parts on this diagram · 2 diagrams in section
