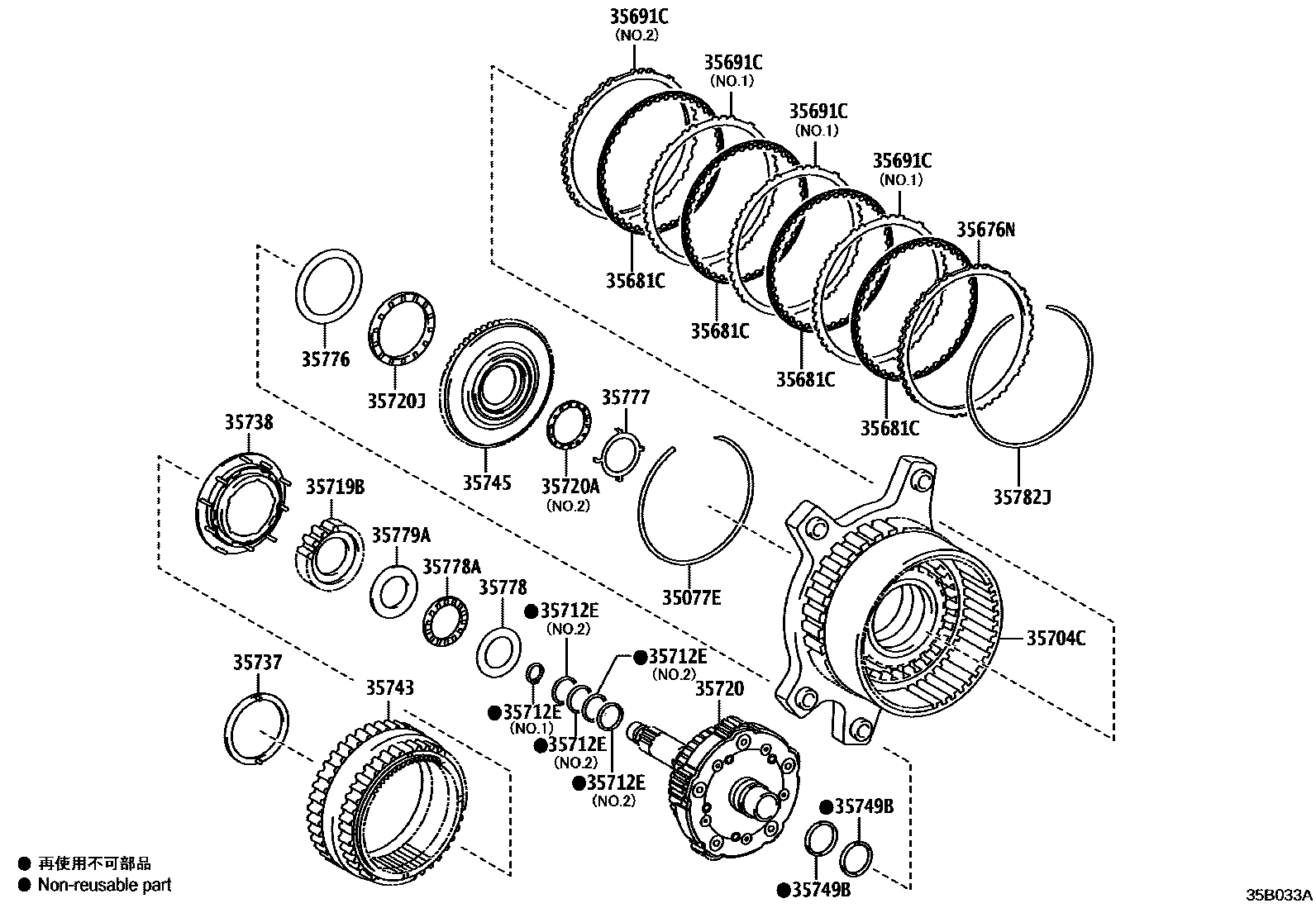

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1UB80E,UB80F(FRONT PLANETARY G0002 1UB80E,UB80F(REAR PLANETARY GE0003 1UA81F(FRONT PLANETARY GEAR) 0004 1UA81F(REAR PLANETARY GEAR)

35077ERING, SNAP (FOR REAR PLANETARY RING GEAR FLANGE)

main90520-99176iTAZA25202403

main90521-99190iAAZA2#202403-202506

35676NFLANGE, BRAKE, NO.1

main35676-33580iAAZA2#202403-202506

main35676-33590iAAZA2#202403-202506

main35676-33600iAAZA2#202403-202506

main35676-33610iAAZA2#202403-202506

main35676-33620iAAZA2#202111-202403

main35676-33630iAAZA2#202403-202506

main35676-33640iAAZA2#202403-202506

35681CDISC, BRAKE, NO.1

main35681-33031×4iAAZA2#202403-202506

35691CPLATE, BRAKE, NO.1

main35691-33040×3iAAZA2#202403-202506

main35691-33050iAAZA2#202111-202403

35704CGEAR SUB-ASSY, COUNTER DRIVE

main35704-42011iAAZA2#202403-202506

main35704-78010iTAZA25202403

35712ERING, INPUT SHAFT OIL SEAL

main35617-60030iTAZA25202403

main35712-33030×4iAAZA2#202111-202403

main35712-48030×4iTAZA25202403

35719BGEAR, PLANETARY SUN

main35719-33020iAAZA2#202403-202506

main35719-48030iTAZA25202403

35720GEAR ASSY, FRONT PLANETARY

main35720-33090iAAZA2#202111-202403

main35720-78010iTAZA25202111-202309

main35720-78011iTAZA25202403

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90374-29009iAAZA2#202403-202506

main90374-35009iAAZA2#202111-202403

main90374-39009iTAZA25202403

main90374-39011iTAZA25202403

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90374-57007iAAZA2#202403-202506

main90374-58005iTAZA25202403

35737WASHER, PLANETARY CARRIER THRUST

main35737-48080iAAZA2#,TAZA25202111-202403

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-33040iAAZA2#202111-202403

main35738-48040iTAZA25202403

35743GEAR, FRONT PLANETARY RING

main35743-33060iAAZA2#202403-202506

main35743-48020iTAZA25202403

35745FLANGE, FRONT PLANETARY RING GEAR

main35745-33041iAAZA2#202403-202506

main35745-48030iTAZA25202111-202403

35749BRING, INPUT SHAFT OIL SEAL, REAR

main35749-33010×2iAAZA2#202111-202403

main35749-48020×2iTAZA25202403

35776GEAR, PRIMARY REDUCTION DRIVEN

main35776-33010iAAZA2#202403-202506

main35776-78010iTAZA25202111-202403

35777RACE, THRUST BEARING, NO.7

main35777-33010iAAZA2#202403-202506

main35777-48040iTAZA25202403

35778RACE, THRUST BEARING, NO.8

main35778-33010iAAZA2#202403-202506

main35778-48020iTAZA25202403

35778ABEARING, THRUST NEEDLE ROLLER

main90374-28019iAAZA2#202111-202403

main90374-31012iTAZA25202111-202403

35779ARACE, THRUST BEARING, NO.9

main35779-33010iAAZA2#202111-202403

main35779-48020iTAZA25202403

35782JRING, SNAP

main90521-99200iAAZA2#202403-202506

21 parts on this diagram · 4 diagrams in section
