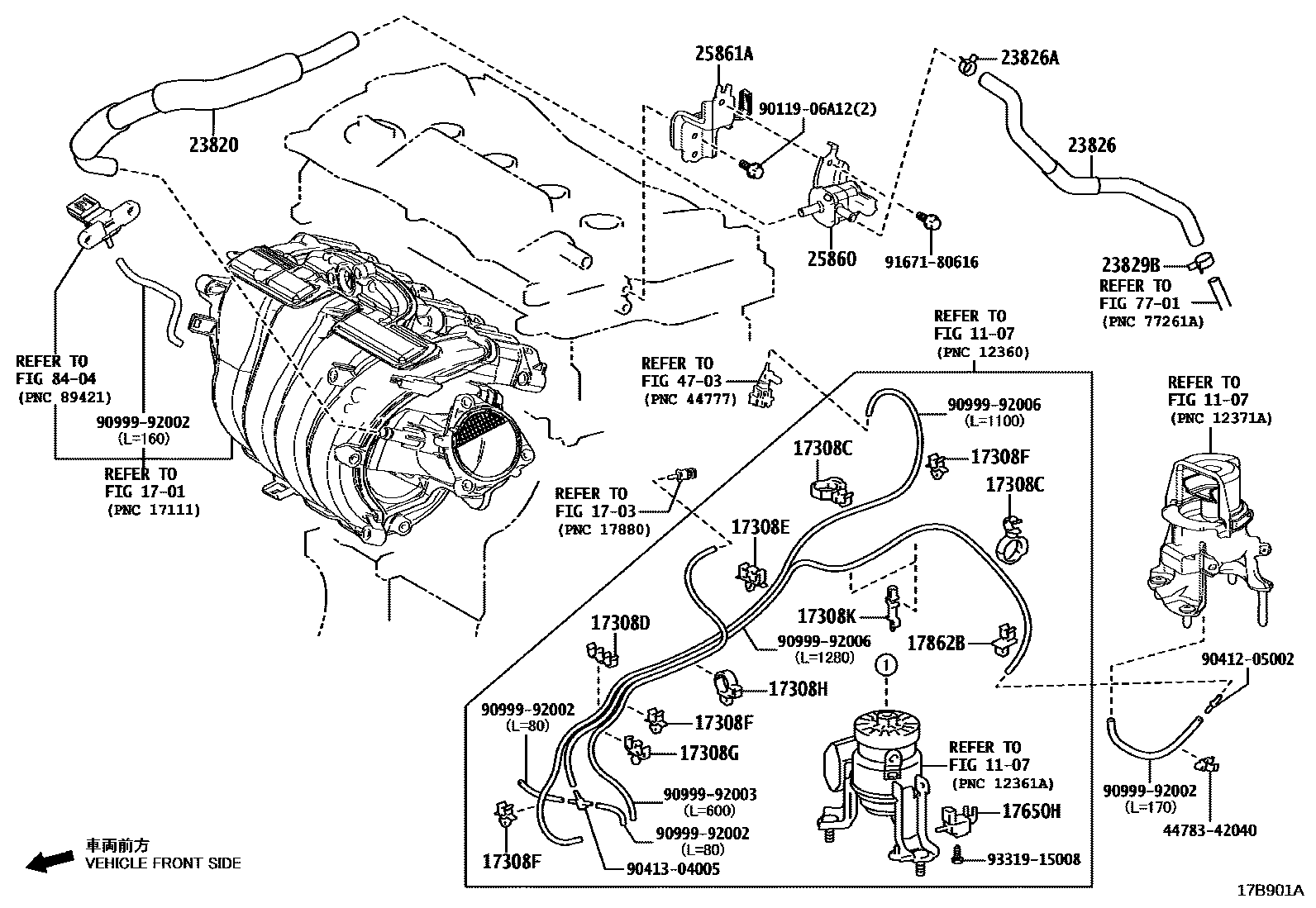

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

1107MOUNTING

→ Go to FIG 11-07

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

17308CCLAMP(FOR VACUUM HOSE)

main44783-33060×2iA25AFKS..AAZA20; A25AFKS..AAZA25202403-202506

main44783-42040iT24AFTS..TAZA25202111-202403

17308DCLAMP, NO.2(FOR VACUUM HOSE)

main44783-42040×3iT24AFTS..TAZA25202403

main44783-42050iA25AFKS..AAZA25202111-202403

main90464-00074iA25AFKS..AAZA20202403-202506

17308ECLAMP, NO.3(FOR VACUUM HOSE)

main44783-42080×2iA25AFKS..AAZA2#; T24AFTS..TAZA25202111-202403

17308FCLAMP, NO.4(FOR VACUUM HOSE)

main44783-42040×3iA25AFKS..AAZA2#202111-202403

main44783-78020×2iT24AFTS..TAZA25202403

17308GCLAMP, NO.5(FOR VACUUM HOSE)

main90469-07012iA25AFKS..AAZA2#202403-202506

17308HCLAMP, NO.6(FOR VACUUM HOSE)

main90959-01434iA25AFKS..AAZA20202403-202506

17308KCLAMP, NO.7(FOR VACUUM HOSE)

main44783-78020×2iA25AFKS..AAZA20202403-202506

17650HVALVE, VACUUM SWITCHING

main90910-12059iA25AFKS..AAZA2#202111-202403

main90910-TC003iA25AFKS..AAZA2#202403-202506

17862BCLAMP, HOSE

main44783-42060iA25AFKS..AAZA20202111-202403

main77196-48010×2iT24AFTS..TAZA25202403

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25051iA25AFXS..AAZH26202111-202403

main23820-25071iA25AFKS..AAZA2#202403-202506

main23820-25150iA25AFXS..AAZH20,25202111-202403

main23820-25230iT24AFTS..TAZA25202111-202403

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-24040iA25AFKS..AAZA2#202403-202506

main23826-25260iT24AFTS..TAZA25202403

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-13005iA25AFKS..AAZA2#202111-202403

23829HOSE, FUEL VAPOR FEED, NO.3

main23820-25200iA25AFXS..AAZH26202111-202312

main23820-25220iA25AFXS..AAZH20,25202111-202403

main23820-25600iA25AFXS..AAZH26202403

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-13005iT24AFTS..TAZA25202111-202403

main90466-15004iA25AFKS..AAZA2#202111-202403

main96136-41801iA25AFXS..AAZH2#202111-202403

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25AFXS..AAZH26202403

main25860-25040iA25AFKS..AAZA2#202403-202506

main25860-25070iA25AFXS..AAZH20,25202111-202403

main25860-25080iT24AFTS..TAZA25202403

25861ABRACKET, VACUUM SWITCHING VALVE, NO.2

main25862-25011iA25AFKS..AAZA2#202111-202403

main25862-25020iT24AFTS..TAZA25202403

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

4478342040CLAMP, VACUUM HOSE

main44783-42040

9011906A12

main90119-06A12

9041205002

main90412-05002

9041304005

main90413-04005

9099992002

main90999-92002

9099992003

main90999-92003

9099992006

main90999-92006

9167180616

main91671-80616

9331915008

main93319-15008

31 parts on this diagram · 5 diagrams in section
