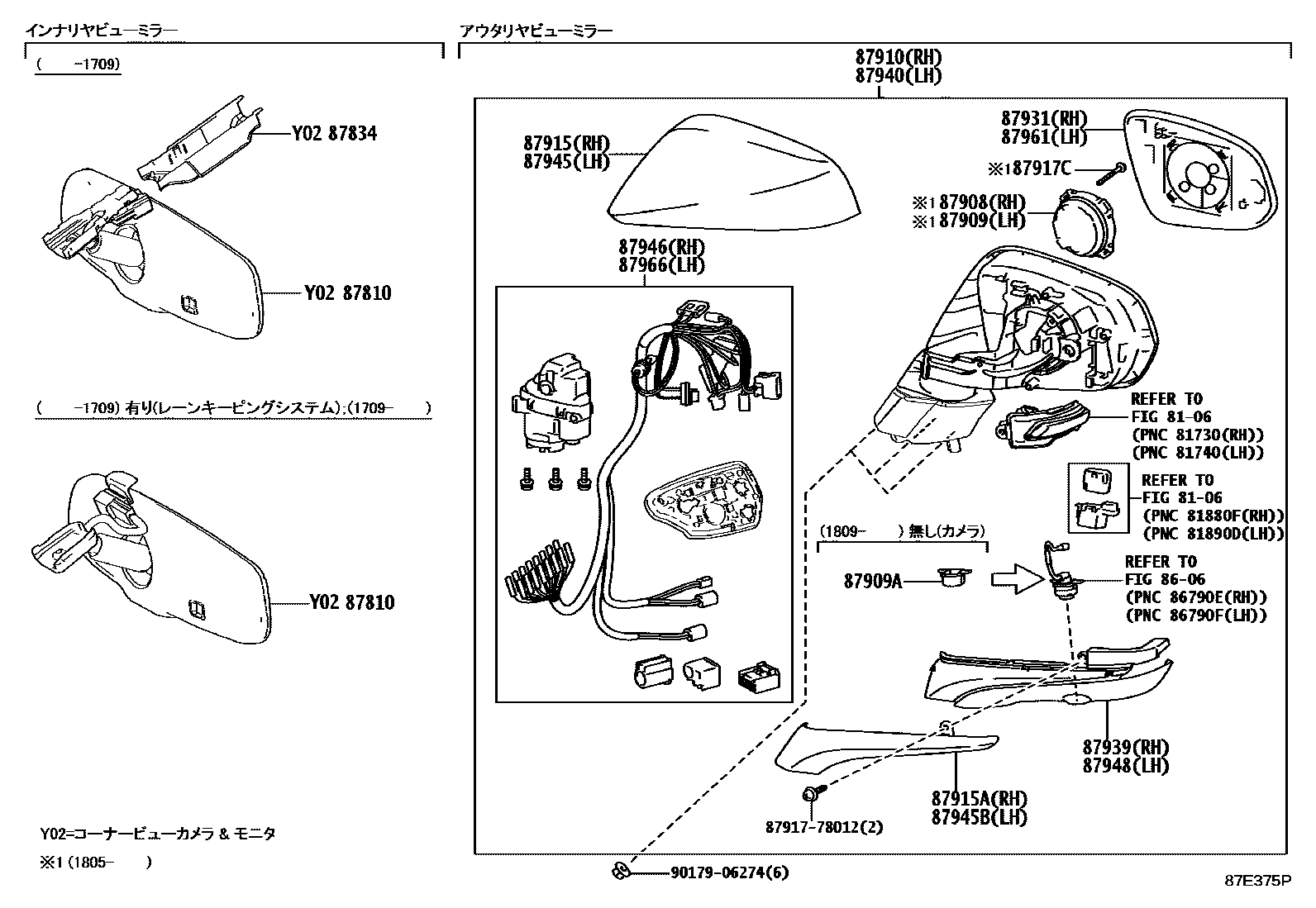

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0WL40supersedes 87810-0WL60iAGZ1#,AYZ1#201407-201709

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87818-76010iAGZ1#,AYZ1#201407-201709

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-78412iAGZ1#,AYZ1#201805-202109

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87908-78412iAGZ1#,AYZ1#201805-202109

87909ACOVER, OUTER REAR VIEW MIRROR

main87973-78010iAGZ1#202001-202007

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-78100-C0supersedes 87910-78101-C0iAGZ1#,AYZ1#201407-201709

main87910-78110-A0supersedes 87910-78101-A0iAGZ1#,AYZ1#201709-201804

main87910-78110-B0supersedes 87910-78101-B0iAGZ1#,AYZ1#201709-201804

main87910-78110-B1supersedes 87910-78100-B1iAGZ1#,AYZ1#201709-201804

main87910-78110-B2supersedes 87910-78101-B2iAGZ1#,AYZ1#201709-201804

main87910-78110-C0supersedes 87910-78101-C0iAGZ1#,AYZ1#201709-201804

main87910-78110-C2supersedes 87910-78101-C2iAGZ1#,AYZ1#201709-201804

main87910-78110-D0supersedes 87910-78101-D0iAGZ1#,AYZ1#201709-201804

main87910-78110-E1supersedes 87910-78100-E1iAGZ1#,AYZ1#201709-201804

main87910-78110-J2supersedes 87910-78100-J2iAGZ1#,AYZ1#201709-201804

main87910-78111-A0supersedes 87910-78101-A0iAGZ1#,AYZ1#201805-202109

main87910-78111-B0supersedes 87910-78101-B0iAGZ1#,AYZ1#201805-202109

main87910-78111-B1supersedes 87910-78101-B1iAGZ1#,AYZ1#201805-201905

main87910-78111-B2supersedes 87910-78101-B2iAGZ1#,AYZ1#201805-202109

main87910-78111-C0supersedes 87910-78100-C0iAGZ1#,AYZ1#201805

main87910-78111-C2supersedes 87910-78101-C2iAGZ1#,AYZ1#201805-202109

main87910-78111-D0supersedes 87910-78101-D0iAGZ1#,AYZ1#201805-202109

main87910-78111-E1supersedes 87910-78101-E1iAGZ1#,AYZ1#201805-202007

main87910-78111-E2supersedes 87910-78101-E2iAGZ1#,AYZ1#201905-202109

main87910-78111-G0supersedes 87910-78101-G0iAGZ1#,AYZ1#202007-202109

main87910-78111-J2supersedes 87910-78101-J2iAGZ1#,AYZ1#201805-202007

main87910-78111-J3supersedes 87910-78101-J3iAGZ1#,AYZ1#202007-202109

main87910-78120-A0supersedes 87910-78101-A0iAGZ1#,AYZ1#201407-201709

main87910-78120-B0supersedes 87910-78101-B0iAGZ1#,AYZ1#201407-201709

main87910-78120-B1supersedes 87910-78100-B1iAGZ1#,AYZ1#201407-201709

main87910-78120-B2supersedes 87910-78101-B2iAGZ1#,AYZ1#201407-201709

main87910-78120-C0supersedes 87910-78100-C0iAGZ1#,AYZ1#201407-201709

main87910-78120-C1supersedes 87910-78100-C1iAGZ1#,AYZ1#201407-201509

main87910-78120-C2supersedes 87910-78100-C2iAGZ1#,AYZ1#201509-201709

main87910-78120-D0supersedes 87910-78101-D0iAGZ1#,AYZ1#201407-201709

main87910-78120-E0supersedes 87910-78100-E0iAGZ1#,AYZ1#201407-201509

main87910-78120-E1supersedes 87910-78100-E1iAGZ1#,AYZ1#201509-201709

main87910-78120-J0supersedes 87910-78100-J0iAGZ1#,AYZ1#201407-201609

main87910-78120-J1supersedes 87910-78100-J1iAGZ1#,AYZ1#201407-201509

main87910-78120-J2supersedes 87910-78100-J2iAGZ1#,AYZ1#201509-201709

main87910-78121-A0supersedes 87910-78101-A0iAGZ1#,AYZ1#201709-201804

main87910-78121-B0supersedes 87910-78101-B0iAGZ1#,AYZ1#201709-201804

main87910-78121-B1supersedes 87910-78100-B1iAGZ1#,AYZ1#201709-201804

main87910-78121-B2supersedes 87910-78101-B2iAGZ1#,AYZ1#201709-201804

main87910-78121-C0supersedes 87910-78101-C0iAGZ1#,AYZ1#201709-201804

main87910-78121-C2supersedes 87910-78101-C2iAGZ1#,AYZ1#201709-201804

main87910-78121-D0supersedes 87910-78101-D0iAGZ1#,AYZ1#201709-201804

main87910-78121-E1supersedes 87910-78100-E1iAGZ1#,AYZ1#201709-201804

main87910-78121-J2supersedes 87910-78100-J2iAGZ1#,AYZ1#201709-201804

main87910-78122-A0supersedes 87910-78101-A0iAGZ1#,AYZ1#201805-202109

main87910-78122-B0supersedes 87910-78101-B0iAGZ1#,AYZ1#201805-202109

main87910-78122-B1supersedes 87910-78101-B1iAGZ1#,AYZ1#201805-201905

main87910-78122-B2supersedes 87910-78101-B2iAGZ1#,AYZ1#201805-202109

main87910-78122-C0supersedes 87910-78101-C0iAGZ1#,AYZ1#201805-202109

main87910-78122-C2supersedes 87910-78101-C2iAGZ1#,AYZ1#201805-202109

main87910-78122-D0supersedes 87910-78101-D0iAGZ1#,AYZ1#201805-202109

main87910-78122-E1supersedes 87910-78101-E1iAGZ1#,AYZ1#201805-202007

main87910-78122-E2supersedes 87910-78101-E2iAGZ1#,AYZ1#201905-202109

main87910-78122-G0supersedes 87910-78101-G0iAGZ1#,AYZ1#202007-202109

main87910-78122-J2supersedes 87910-78101-J2iAGZ1#,AYZ1#201805-202007

main87910-78122-J3supersedes 87910-78101-J3iAGZ1#,AYZ1#202007-202109

main87910-78290-A0supersedes 87910-78101-A0iAGZ1#,AYZ1#201709-201804

main87910-78290-B0supersedes 87910-78101-B0iAGZ1#,AYZ1#201709-201804

main87910-78290-B1supersedes 87910-78100-B1iAGZ1#,AYZ1#201709-201804

main87910-78290-B2supersedes 87910-78101-B2iAGZ1#,AYZ1#201709-201804

main87910-78290-C0supersedes 87910-78101-C0iAGZ1#,AYZ1#201709-201804

main87910-78290-C1supersedes 87910-78101-C2iAGZ1#,AYZ1#201709-201804

main87910-78290-D0supersedes 87910-78101-D0iAGZ1#,AYZ1#201709-201804

main87910-78290-E0supersedes 87910-78100-E1iAGZ1#,AYZ1#201709-201804

main87910-78290-J0supersedes 87910-78100-J2iAGZ1#,AYZ1#201709-201804

main87910-78291-A0supersedes 87910-78101-A0iAGZ1#,AYZ1#201805-202109

main87910-78291-B0supersedes 87910-78101-B0iAGZ1#,AYZ1#201805-202109

main87910-78291-B1supersedes 87910-78101-B1iAGZ1#,AYZ1#201805-201905

main87910-78291-B2supersedes 87910-78101-B2iAGZ1#,AYZ1#201805-202109

main87910-78291-C0supersedes 87910-78101-C0iAGZ1#,AYZ1#201805-202109

main87910-78291-C1supersedes 87910-78101-C2iAGZ1#,AYZ1#201805-202109

main87910-78291-D0supersedes 87910-78101-D0iAGZ1#,AYZ1#201805-202109

main87910-78291-E0supersedes 87910-78101-E1iAGZ1#,AYZ1#201805-202007

main87910-78291-E1supersedes 87910-78101-E2iAGZ1#,AYZ1#201905-202109

main87910-78291-G0supersedes 87910-78101-G0iAGZ1#,AYZ1#202007-202109

main87910-78291-J0supersedes 87910-78101-J2iAGZ1#,AYZ1#201805-202007

main87910-78291-J1supersedes 87910-78101-J3iAGZ1#,AYZ1#202007-202109

main87910-78350-C0iAGZ1#,AYZ1#202007-202109

main87910-78350-C1iAGZ1#,AYZ1#202007-202109

main87910-78360-C0iAGZ1#202001-202007

main87910-78360-C1iAGZ1#202001-202007

main87910-78370-C0iAGZ1#,AYZ1#202007-202109

main87910-78370-C1iAGZ1#,AYZ1#202007-202109

main87910-78380-C0iAGZ1#,AYZ1#202007-202109

main87910-78380-C1iAGZ1#,AYZ1#201809-201905

87915COVER, OUTER MIRROR, RH

main87915-78020-B1iAGZ1#,AYZ1#201709-201905

main87915-78020-C0iAGZ1#,AYZ1#201407-201709

main87915-78020-C1iAGZ1#,AYZ1#201509-201709

GRAPHITE BLACK GF.,223

main87915-78020-C2iAGZ1#,AYZ1#201407-201509

STARLIGHT BLACK GF.,217

main87915-78020-E0iAGZ1#,AYZ1#201709-202007

main87915-78020-E1iAGZ1#,AYZ1#201407-201509

FIRE AGATE M.M.,4V3

main87915-78020-E4iAGZ1#,AYZ1#201905-202109

main87915-78020-G0iAGZ1#,AYZ1#202007-202109

main87915-78020-J0iAGZ1#,AYZ1#201407-201609

BLUE ME.,8U1

main87915-78020-J1iAGZ1#,AYZ1#201509-201709

SPARKLING METEOR ME.,8X9

main87915-78020-J2iAGZ1#,AYZ1#201407-201509

METEOR BLUE M.M.,8W3

main87915-78020-J4iAGZ1#,AYZ1#202007-202109

main87915-78020-A0iAGZ1#,AYZ1#201709-202109

main87915-78020-B0iAGZ1#,AYZ1#201709-202109

main87915-78020-B2iAGZ1#,AYZ1#201709-202109

main87915-78020-D0iAGZ1#,AYZ1#201709-202109

87915ACOVER, OUTER MIRROR, RH

main8791B-78090iAGZ1#,AYZ1#201709

87917CSCREW, OUTER MIRROR

main87917-15010×3iAGZ1#,AYZ1#201809-201905

87931OUTER MIRROR, RH

main87931-78070iAGZ1#,AYZ1#201809-201905

87939COVER, OUTER MIRROR HOLE, RH

main87939-48B00iAGZ1#,AYZ1#202007

main87939-78120supersedes 87939-78090iAGZ1#,AYZ1#201709

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-78120-A0supersedes 87940-78252-A0iAGZ1#,AYZ1#201407-201709

main87940-78120-B0supersedes 87940-78252-B0iAGZ1#,AYZ1#201407-201709

main87940-78120-B1supersedes 87940-78251-B1iAGZ1#,AYZ1#201407-201709

main87940-78120-B2supersedes 87940-78252-B2iAGZ1#,AYZ1#201407-201709

main87940-78120-C0supersedes 87940-78252-C0iAGZ1#,AYZ1#201609-201709

main87940-78120-C1supersedes 87940-78250-C1iAGZ1#,AYZ1#201407-201509

main87940-78120-C2supersedes 87940-78250-C2iAGZ1#,AYZ1#201509-201709

main87940-78120-D0supersedes 87940-78252-D0iAGZ1#,AYZ1#201407-201709

main87940-78120-E0supersedes 87940-78250-E0iAGZ1#,AYZ1#201407-201509

main87940-78120-E1supersedes 87940-78250-E1iAGZ1#,AYZ1#201509-201709

main87940-78120-J0supersedes 87940-78250-J0iAGZ1#,AYZ1#201407-201609

main87940-78120-J1supersedes 87940-78250-J1iAGZ1#,AYZ1#201407-201509

main87940-78120-J2supersedes 87940-78250-J2iAGZ1#,AYZ1#201509-201709

main87940-78121-A0supersedes 87940-78252-A0iAGZ1#,AYZ1#201709-201804

main87940-78121-B0supersedes 87940-78252-B0iAGZ1#,AYZ1#201709-201804

main87940-78121-B1supersedes 87940-78251-B1iAGZ1#,AYZ1#201709-201804

main87940-78121-B2supersedes 87940-78252-B2iAGZ1#,AYZ1#201709-201804

main87940-78121-C0supersedes 87940-78252-C0iAGZ1#,AYZ1#201709-201804

main87940-78121-C2supersedes 87940-78252-C2iAGZ1#,AYZ1#201709-201804

main87940-78121-D0supersedes 87940-78252-D0iAGZ1#,AYZ1#201709-201804

main87940-78121-E1supersedes 87940-78251-E1iAGZ1#,AYZ1#201709-201804

main87940-78121-J2supersedes 87940-78251-J2iAGZ1#,AYZ1#201709-201804

main87940-78122-A0supersedes 87940-78252-A0iAGZ1#,AYZ1#201805-202109

main87940-78122-B0supersedes 87940-78252-B0iAGZ1#,AYZ1#201805-202109

main87940-78122-B1supersedes 87940-78252-B1iAGZ1#,AYZ1#201805-201905

main87940-78122-B2supersedes 87940-78252-B2iAGZ1#,AYZ1#201805-202109

main87940-78122-C0supersedes 87940-78250-C0iAGZ1#,AYZ1#201805

main87940-78122-C2supersedes 87940-78252-C2iAGZ1#,AYZ1#201805-202109

main87940-78122-D0supersedes 87940-78252-D0iAGZ1#,AYZ1#201805-202109

main87940-78122-E1supersedes 87940-78252-E1iAGZ1#,AYZ1#201805-202007

main87940-78122-E2supersedes 87940-78252-E2iAGZ1#,AYZ1#201905-202109

main87940-78122-G0supersedes 87940-78252-G0iAGZ1#,AYZ1#202007-202109

main87940-78122-J2supersedes 87940-78252-J2iAGZ1#,AYZ1#201805-202007

main87940-78122-J3supersedes 87940-78252-J3iAGZ1#,AYZ1#202007-202109

main87940-78250-C0iAGZ1#,AYZ1#201612-201709

main87940-78350-C0iAGZ1#,AYZ1#202007-202109

main87940-78350-C1iAGZ1#,AYZ1#201809-201905

main87940-78360-C0iAGZ1#,AYZ1#202007-202109

main87940-78360-C1iAGZ1#202001-202007

87945COVER, OUTER MIRROR, LH

main87945-78020-B1iAGZ1#,AYZ1#201709-201905

main87945-78020-C0iAGZ1#,AYZ1#201407-201709

main87945-78020-C1iAGZ1#,AYZ1#201509-201709

GRAPHITE BLACK GF.,223

main87945-78020-C2iAGZ1#,AYZ1#201407-201509

STARLIGHT BLACK GF.,217

main87945-78020-E0iAGZ1#,AYZ1#201509-201709

AMBER CS.,4X2

main87945-78020-E1iAGZ1#,AYZ1#201407-201509

FIRE AGATE M.M.,4V3

main87945-78020-E4iAGZ1#,AYZ1#201905-202109

main87945-78020-G0iAGZ1#,AYZ1#202007-202109

main87945-78020-J0iAGZ1#,AYZ1#201407-201609

BLUE ME.,8U1

main87945-78020-J1iAGZ1#,AYZ1#201509-201709

SPARKLING METEOR ME.,8X9

main87945-78020-J2iAGZ1#,AYZ1#201407-201509

METEOR BLUE M.M.,8W3

main87945-78020-J4iAGZ1#,AYZ1#202007-202109

main87945-78020-A0iAGZ1#,AYZ1#201709-202109

main87945-78020-B0iAGZ1#,AYZ1#201709-202109

main87945-78020-B2iAGZ1#,AYZ1#201709-202109

main87945-78020-D0iAGZ1#,AYZ1#201709-202109

87945BCOVER, OUTER MIRROR, LH

main8794B-78090iAGZ1#,AYZ1#201709

87946RETRACTOR, OUTER MIRROR, RH

main87946-78072supersedes 87946-78062iAGZ1#,AYZ1#201709-202109

main87946-78081supersedes 87946-78062iAGZ1#,AYZ1#201407-201709

main87946-78131supersedes 87946-78062iAGZ1#,AYZ1#201709-202109

main87946-78211supersedes 87946-78062iAGZ1#,AYZ1#201709-202109

main87946-78350iAGZ1#,AYZ1#202007-202109

main87946-78360iAGZ1#202001-202007

main87946-78370iAGZ1#,AYZ1#202007-202109

main87946-78380iAGZ1#,AYZ1#202007-202109

87948COVER, OUTER MIRROR HOLE, LH

main87948-78120iAGZ1#,AYZ1#201709

main87948-48A90iAGZ1#,AYZ1#202007

87961MIRROR OUTER, LH

main87961-78070iAGZ1#202001-202007

87966RETRACTOR, OUTER MIRROR, LH

main87966-78081supersedes 87966-78341iAGZ1#,AYZ1#201407-201709

main87966-78331supersedes 87966-78341iAGZ1#,AYZ1#201709

main87966-78350iAGZ1#,AYZ1#202007

main87966-78360iAGZ1#,AYZ1#202007

8791778012ESCUTCHEON

main87917-78012

9017906274

main90179-06274

22 parts on this diagram · 1 diagram in section
