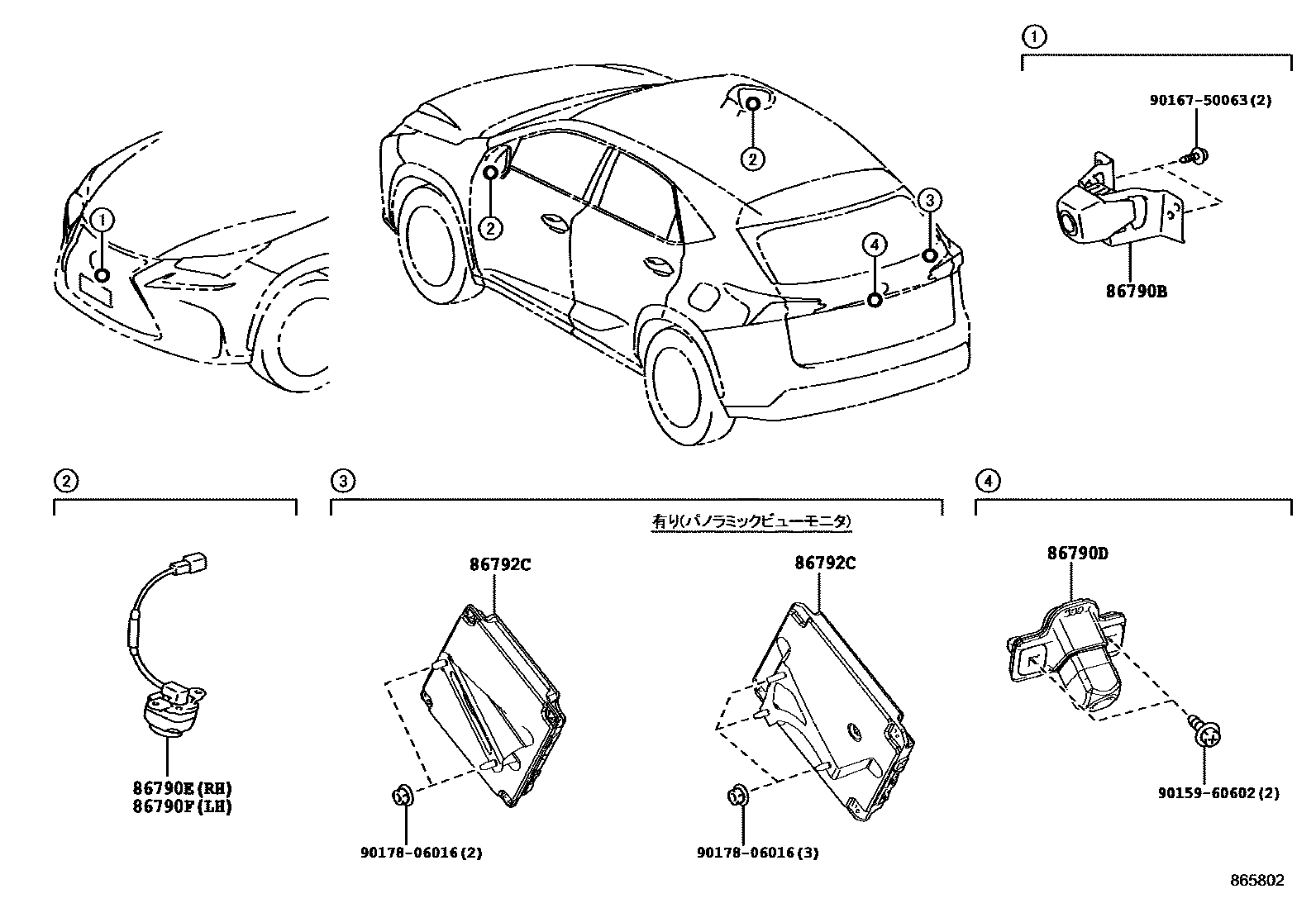

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86790BCAMERA ASSY, TELEVISION, FR

main86790-78010iAGZ1#,AYZ1#201407-201709

main867B0-78020iAGZ1#,AYZ1#201709

main867B0-78060iAGZ1#,AYZ1#201709

86790DCAMERA ASSY, TELEVISION, RR

main86790-78020iAGZ1#,AYZ1#201407-201509

main86790-78021iAGZ1#,AYZ1#201509-201709

main867B0-78030iAGZ1#,AYZ1#201709-201805

main867B0-78031iAGZ1#,AYZ1#201805

main86790-78030iAGZ1#,AYZ1#201407-201709

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-78050iAGZ1#,AYZ1#201407-201709

main867B0-78050iAGZ1#,AYZ1#201709

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-78040iAGZ1#,AYZ1#201407-201709

main867B0-78040iAGZ1#,AYZ1#201709

86792CCOMPUTER, PARKING ASSIST

main86792-78051iAGZ1#,AYZ1#201805

main86792-78020supersedes 86792-78010iAGZ1#,AYZ1#201407-201709

main86792-78060supersedes 86792-78050iAGZ1#,AYZ1#201709-201805

main86792-78061iAGZ1#,AYZ1#201805-202007

main86792-78062iAGZ1#,AYZ1#202007

9015960602

main90159-60602

9016750063

main90167-50063

9017806016

main90178-06016

8 parts on this diagram · 2 diagrams in section
