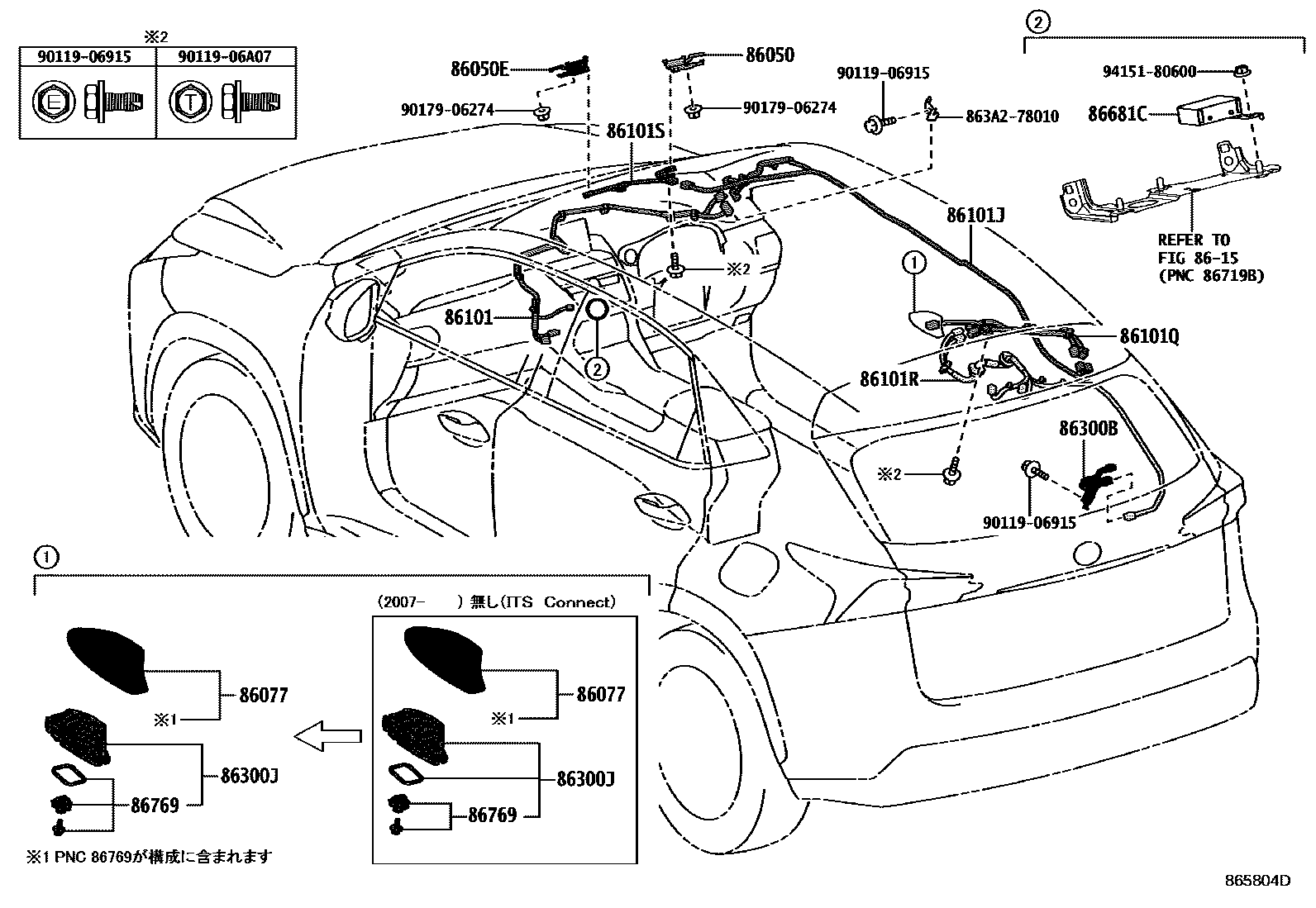

ANTENNA

86050ANTENNA ASSY, TELEVISION

main86050-53180iAGZ1#,AYZ1#201407-201709

86050EANTENNA ASSY, TELEVISION

main86050-53190iAGZ1#,AYZ1#201407-201709

86077COVER KIT, ANTENNA

main86077-76010-A1iAGZ1#,AYZ1#201509-201709

WHITE NOVA GF.,083

main86077-76010-A2iAGZ1#,AYZ1#201709

SONIC QUARTZ,085

main86077-76010-B0iAGZ1#,AYZ1#201709

MERCURY GRAY MC.,1H9

main86077-76010-B1iAGZ1#,AYZ1#201407-201709

PLATINUM SILVER ME.,1J4

main86077-76010-B2iAGZ1#,AYZ1#201709

SONIC TITANIUM,1J7

main86077-76010-C0iAGZ1#,AYZ1#201709

BLACK,212

main86077-76010-C2iAGZ1#,AYZ1#201407-201509

STARLIGHT BLACK GF.,217

main86077-76010-C3iAGZ1#,AYZ1#201709

GRAPHITE BLACK GF.,223

main86077-76010-D0iAGZ1#,AYZ1#201407-201709

RED MC.CS.,3R1

main86077-76010-E0iAGZ1#,AYZ1#201407-201509

FIRE AGATE M.M.,4V3

main86077-76010-E2iAGZ1#,AYZ1#201709-202007

AMBER CS.,4X2

main86077-76010-E3iAGZ1#,AYZ1#201609-201709

LAVA ORANGE CS.,4W7

main86077-76010-E4iAGZ1#,AYZ1#201905

BLAZING CARNELIAN CONTRAS,4Y1

main86077-76010-G0iAGZ1#,AYZ1#202007

TERRANE KHAKI M.M.,6X4

main86077-76010-J0iAGZ1#,AYZ1#201407-201609

BLUE ME.,8U1

main86077-76010-J2iAGZ1#,AYZ1#201407-201509

METEOR BLUE M.M.,8W3

main86077-76010-J3iAGZ1#,AYZ1#201709-202007

SPARKLING METEOR ME.,8X9

main86077-76010-J5iAGZ1#,AYZ1#201709

HEAT BLUE CONTRAST LAYERI,8X1

main86077-76010-J6iAGZ1#,AYZ1#202007

CELESTIAL BLUE GF.,8Y6

86101CORD SUB-ASSY, ANTENNA

main86101-78060iAGZ1#,AYZ1#201407-201709

main86101-78K30iAGZ1#,AYZ1#202007

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-78220supersedes 86101-78200iAGZ1#,AYZ1#201709

main86101-78240supersedes 86101-78200iAGZ1#,AYZ1#201407-201709

main86101-78C30iAGZ1#,AYZ1#201805

main86101-78C40iAGZ1#,AYZ1#201805

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-78500iAGZ1#,AYZ1#201407-201709

main86101-78B90iAGZ1#,AYZ1#201709-202007

main86101-78C20iAGZ1#,AYZ1#201805-202007

main86101-78K10supersedes 86101-78840iAGZ1#,AYZ1#202007

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-78050iAGZ1#,AYZ1#201407-201709

86101SCORD SUB-ASSY, ANTENNA

main86101-78210iAGZ1#,AYZ1#201407-201709

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-78010iAGZ1#,AYZ1#201407-201709

86300JANTENNA ASSY, ROOF

main86760-48070iAGZ1#,AYZ1#201709-202007

main86760-53100iAGZ1#,AYZ1#201407-201709

main86760-48061iAGZ1#,AYZ1#201805-202007

main86760-62010supersedes 86760-62030iAGZ1#,AYZ1#202007

86681CDIVIDER, ANTENNA

main86681-78010iAGZ1#,AYZ1#202007

86769HOUSING, ROOF ANTENNA

main86769-53010iAGZ1#,AYZ1#201407-201709

main86769-48020supersedes 86769-62010iAGZ1#,AYZ1#202007

863A278010TOOL, POLE ANTENNA

main863A2-78010

9011906915

main90119-06915

9011906A07

main90119-06A07

9017906274

main90179-06274

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
