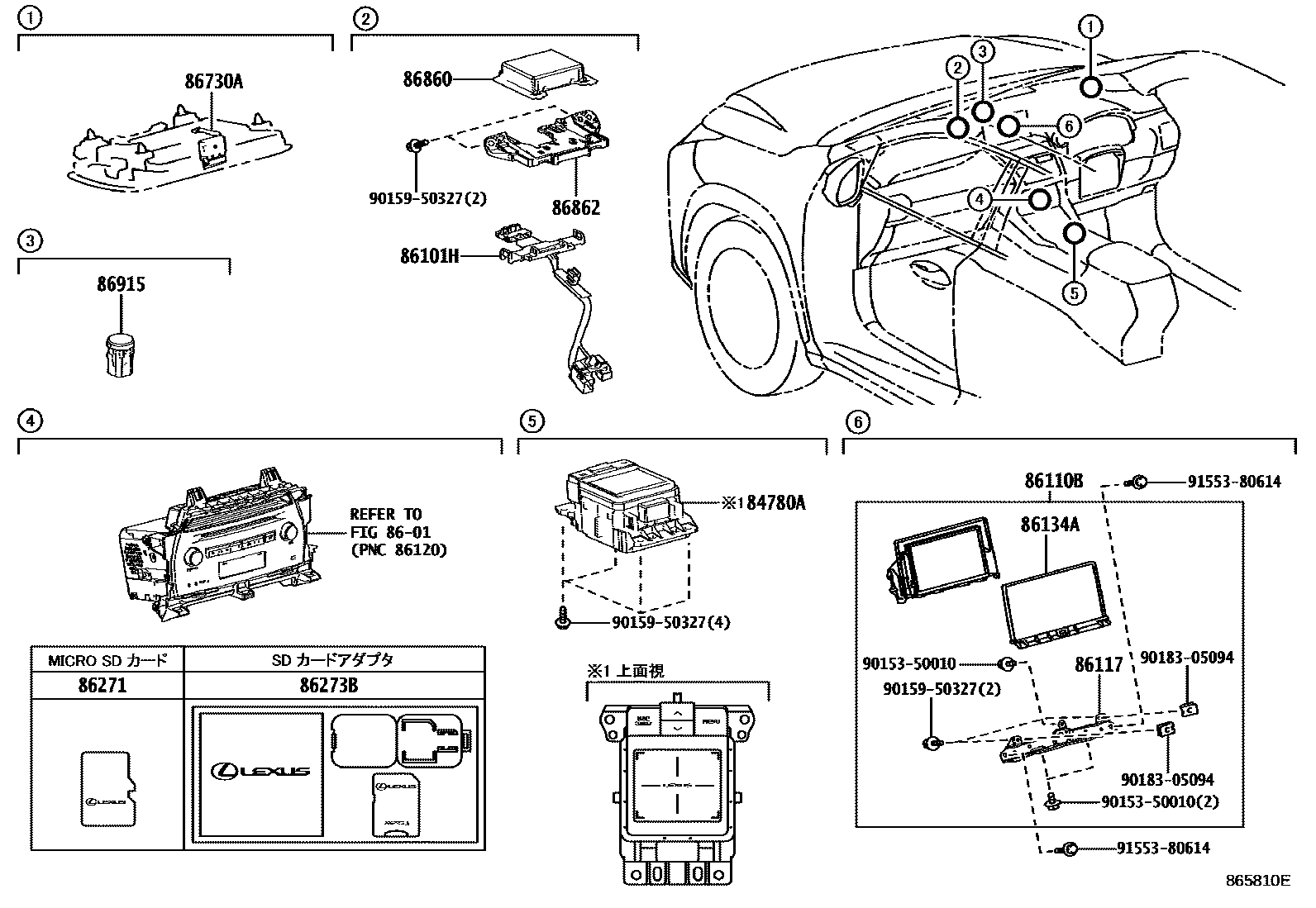

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-78020iAGZ1#,AYZ1#201407-201709

main84780-78120iAGZ1#,AYZ1#201709

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86101HCORD SUB-ASSY, ANTENNA

main86101-78540iAGZ1#,AYZ1#201407-201709

86110BMULTI-DISPLAY ASSY

main86110-78020iAGZ1#,AYZ1#201407-201607

main86110-78021iAGZ1#,AYZ1#201607-201702

main86110-78022iAGZ1#,AYZ1#201703-201709

main86110-78040iAGZ1#,AYZ1#201709-202007

main86110-78041iAGZ1#,AYZ1#202008

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-78010iAGZ1#,AYZ1#201407-201709

main86117-78040iAGZ1#,AYZ1#201709

86134APARTS, MULTI-DISPLAY

main86134-78020iAGZ1#,AYZ1#201407-201607

main86134-78021iAGZ1#,AYZ1#201607-201709

86271DISC, DISC PLAYER

main86271-30A72iAGZ1#,AYZ1#201504-201509

main86271-30A73iAGZ1#,AYZ1#201509-201604

main86271-30A74iAGZ1#,AYZ1#201604-201608

main86271-30A75iAGZ1#,AYZ1#201609-201703

main86271-30A76iAGZ1#,AYZ1#201704-201709

main86271-78020iAGZ1#,AYZ1#201407-201408

main86271-78021iAGZ1#,AYZ1#201409-201503

86273BADAPTER, DISC PLAYER

main86273-53010iAGZ1#,AYZ1#201407-201709

86730AMICROPHONE ASSY, TELEPHONE

main86730-53080iAGZ1#,AYZ1#201407-201709

86860ANTENNA ASSY, NAVIGATION

main86880-78010iAGZ1#,AYZ1#201407-201709

86862BRACKET, NAVIGATION ANTENNA

main86862-76050iAGZ1#,AYZ1#201810

main86862-78010iAGZ1#,AYZ1#201407-201709

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iAGZ1#,AYZ1#201407-201709

9015350010

main90153-50010

9015950327

main90159-50327

9018305094

main90183-05094

9155380614

main91553-80614

16 parts on this diagram · 2 diagrams in section
