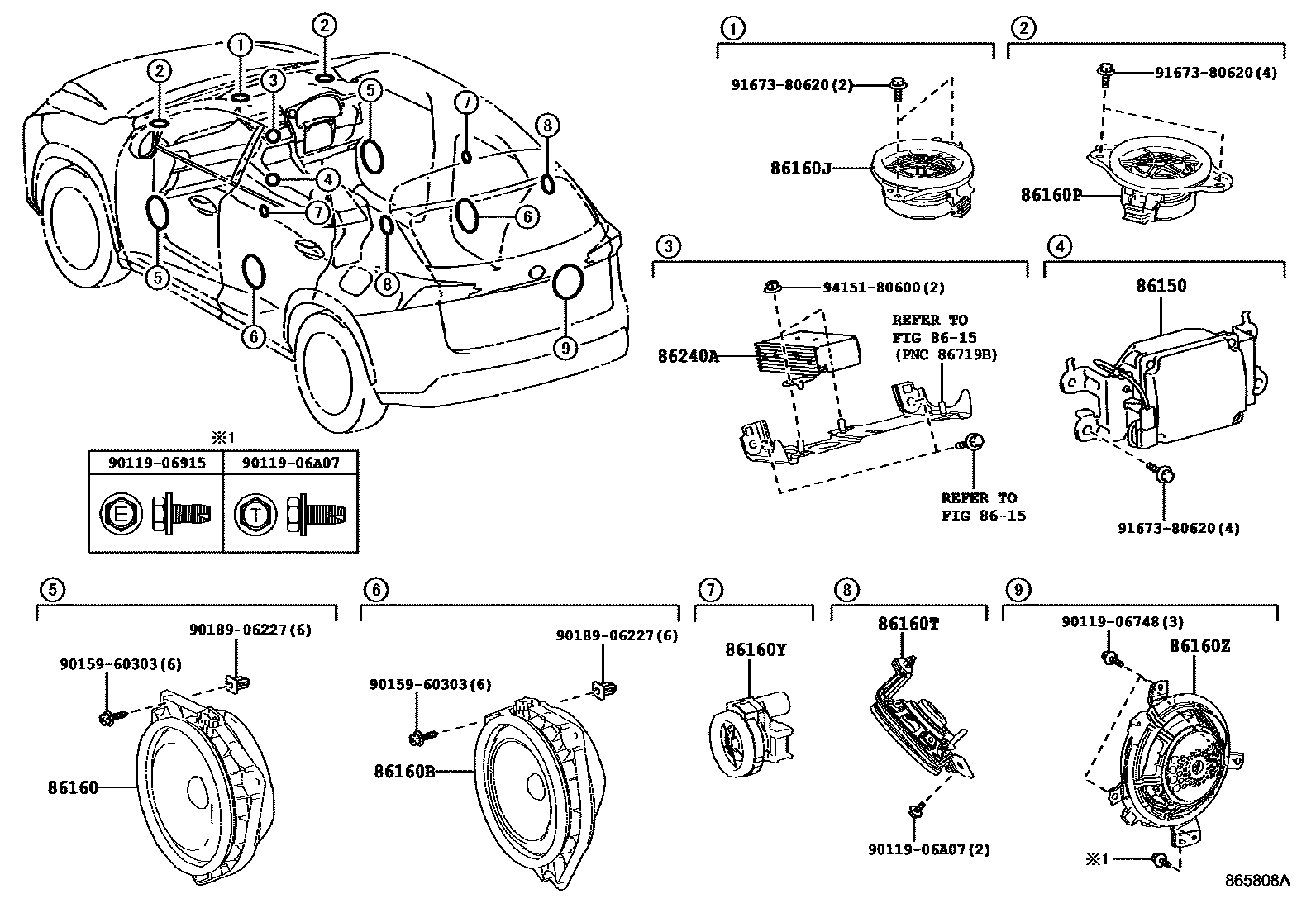

SPEAKER

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

86150SPEAKER ASSY, W/BOX, NO.1

main86150-78010iAGZ1#,AYZ1#201905

main86150-78070iAGZ1#,AYZ1#201407-201709

86160SPEAKER ASSY, FRONT NO.1

main86160-0WW30×2supersedes 86160-78050iAGZ1#,AYZ1#201709

86160BSPEAKER ASSY, REAR

main86160-0WW30×2supersedes 86160-78060iAGZ1#,AYZ1#201407-201709

86160JSPEAKER ASSY, FRONT NO.3

main86150-0W290supersedes 86160-78020iAGZ1#,AYZ1#201709

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WV80×2supersedes 86160-78020iAGZ1#,AYZ1#201709

86160TSPEAKER ASSY, REAR HEADER

main86150-0W270iAGZ1#,AYZ1#201407-201709

main86150-0W280iAGZ1#,AYZ1#201407-201709

86160YSPEAKER ASSY, REAR NO.2

main86160-0WS10×2supersedes 86160-78010iAGZ1#,AYZ1#201407-201709

86160ZSPEAKER ASSY, REAR NO.3

main86150-0W260supersedes 86150-78050iAGZ1#,AYZ1#201407-201709

86240AEQUALIZER ASSY,STEREO COMPONENT

main86240-78010iAYZ15201407-201509

main86240-78011iAYZ15201509-201708

main86240-78020iAYZ10201407-201509

main86240-78021iAYZ10201509-201708

main86240-78030iAGZ1#201407-201509

main86240-78031iAGZ1#201509-201708

main86240-78040iAYZ15201709

main86240-78050iAYZ10201709

main86240-78060iAGZ1#201709

9011906748

main90119-06748

9011906915

main90119-06915

9011906A07

main90119-06A07

9015960303

main90159-60303

9018906227

main90189-06227

9167380620

main91673-80620

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
