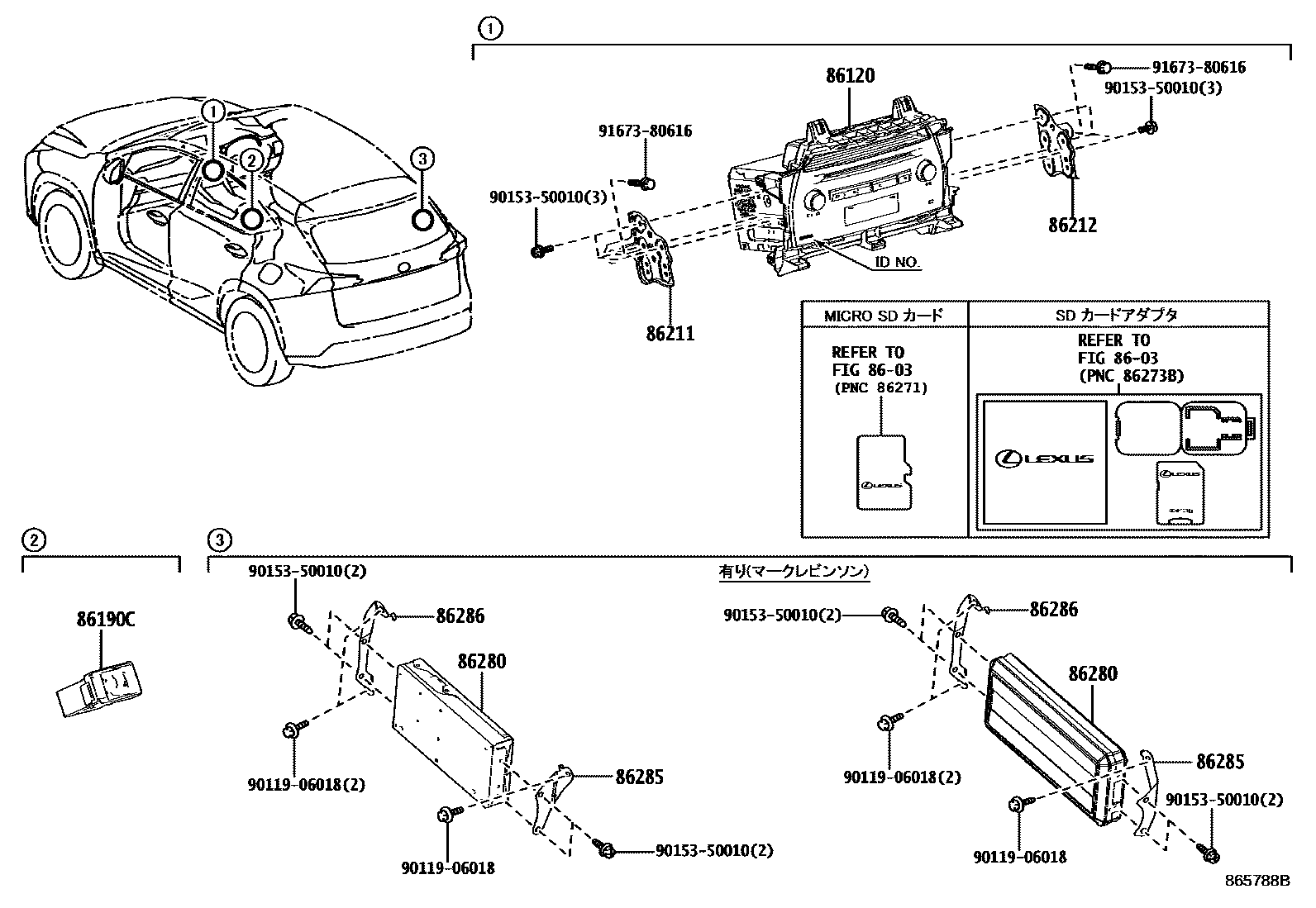

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1����� & ���� 0002 1������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-78320supersedes 86120-78310iAGZ1#,AYZ1#201709-202007

main86120-78B10supersedes 86120-78B00iAGZ1#,AYZ1#202007-202109

main86804-78140supersedes 86804-78131iAGZ1#,AYZ1#201407-201502

main86804-78141supersedes 86804-78131iAGZ1#,AYZ1#201503-201709

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-11010iAGZ1#,AYZ1#201709-201905

main86190-24030iAGZ1#,AYZ1#201905

main86190-78010iAGZ1#,AYZ1#201407-201709

86211BRACKET, RADIO, NO.1

main86211-78010iAGZ1#,AYZ1#201407-201709

main86211-78030iAGZ1#,AYZ1#201709

86212BRACKET, RADIO, NO.2

main86212-78010iAGZ1#,AYZ1#201407-201709

main86212-78030iAGZ1#,AYZ1#201709

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0WC00supersedes 86280-78040iAGZ1#,AYZ1#201407-201709

main86280-0WE60supersedes 86280-78040iAGZ1#,AYZ1#201709-201710

main86280-0WE61supersedes 86280-78041iAGZ1#,AYZ1#201711-201809

main86280-0WE62supersedes 86280-78042iAGZ1#,AYZ1#201809-201909

main86280-0WJ90iAGZ1#,AYZ1#202007

main86280-78110iAGZ1#,AYZ1#201910-202007

86285BRACKET, AMPLIFIER, NO.1

main86285-78020supersedes 86285-78040iAGZ1#,AYZ1#201407-201709

86286BRACKET, AMPLIFIER, NO.2

main86286-78010iAGZ1#,AYZ1#201407-201709

main86286-78020iAGZ1#,AYZ1#201709

main86286-78080iAGZ1#,AYZ1#202007

9011906018

main90119-06018

9015350010

main90153-50010

9167380616

main91673-80616

11 parts on this diagram · 2 diagrams in section
