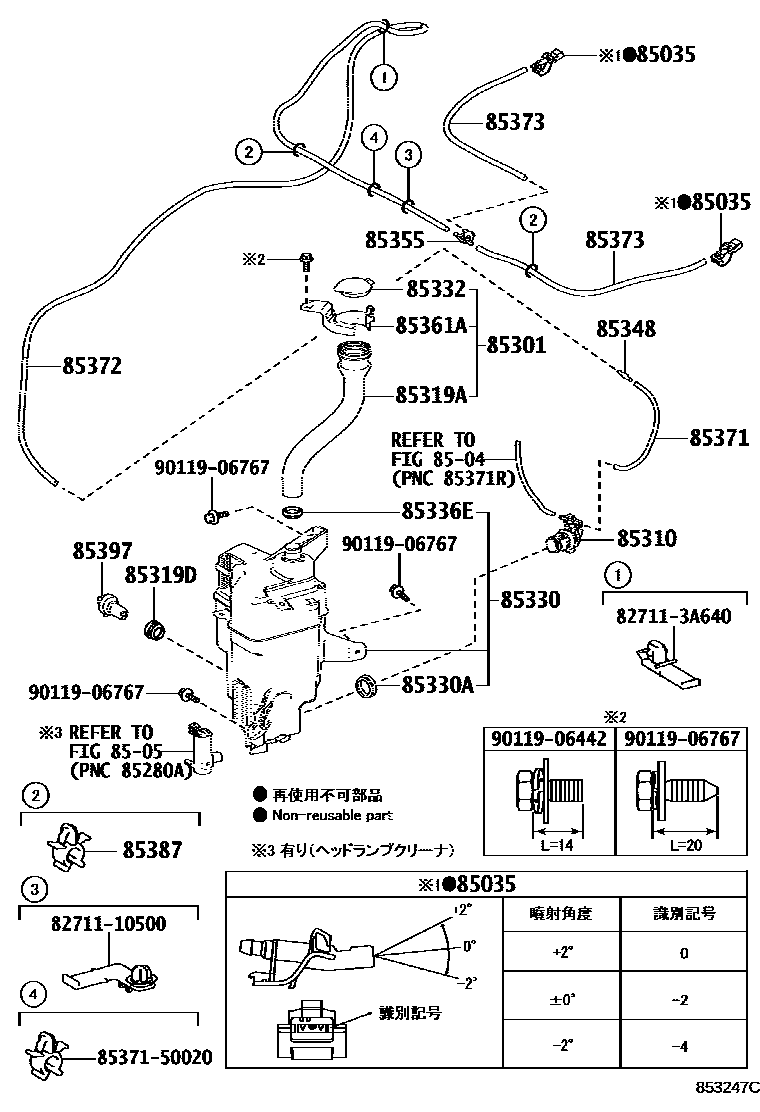

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2iAGZ1#,AYZ1#201709

main85381-12410×2iAGZ1#,AYZ1#201407-201709

main85381-12420×2iAGZ1#,AYZ1#201709

8504REAR WASHER

→ Go to FIG 85-04

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85316-78020iAGZ1#,AYZ1#201709-202107

main85316-78021iAGZ1#,AYZ1#202107

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-42010iAGZ1#,AYZ1#201407-201709

85319AHOSE, INLET

main85319-42230iAGZ1#,AYZ1#201709

85319DPACKING, FRONT WASHER

main85319-33230iAGZ1#,AYZ1#201407-201709

85330JAR ASSY, WINDSHIELD WASHER

main85355-78010supersedes 85315-78030iAGZ1#,AYZ1#201407-201709

main85355-78011supersedes 85315-78030iAGZ1#,AYZ1#201709

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iAGZ1#,AYZ1#201407-201709

85332CAP, WINDSHIELD WASHER JAR

main85316-78010iAGZ1#,AYZ1#201407-201709

main85316-78011iAGZ1#,AYZ1#202107

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iAGZ1#,AYZ1#201709

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAGZ1#,AYZ1#201407-201709

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iAGZ1#,AYZ1#201407-201709

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-42350iAGZ1#,AYZ1#201407-201709

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iAGZ1#,AYZ1#201709

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iAGZ1#,AYZ1#201407-201709

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iAGZ1#,AYZ1#201407-201709

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main90469-07011×2iAGZ1#,AYZ1#201407-201709

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iAGZ1#,AYZ1#201407-201709

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10500

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8537150020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-50020

9011906442

main90119-06442

9011906767

main90119-06767

24 parts on this diagram · 1 diagram in section
