CLEARANCE & BACK SONAR

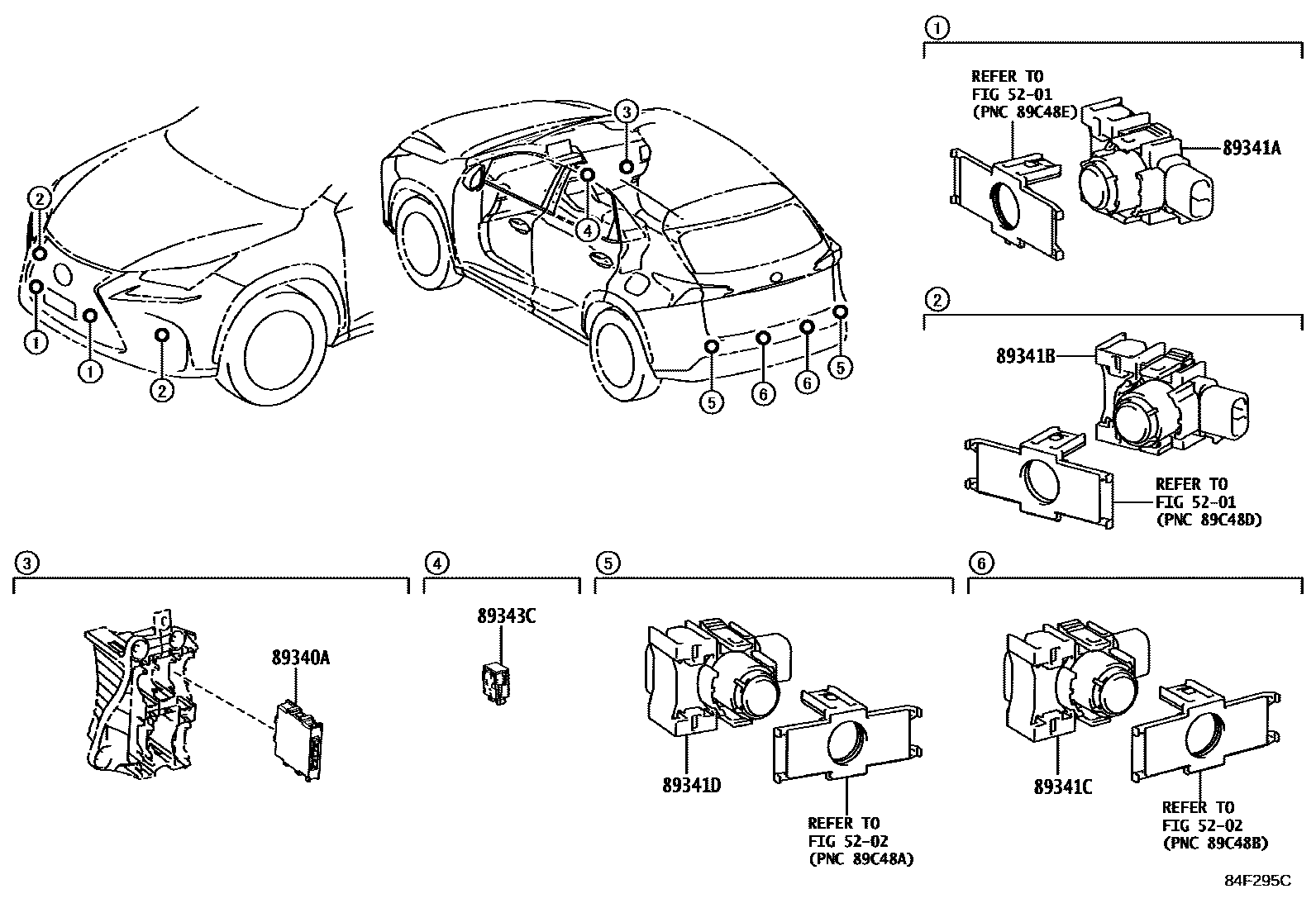

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-78010i201609-201709

main89340-78020i201709-201805

main89340-78030i201709-201805

main89340-78040i201709-201805

main89340-78060i201709-201805

main89340-78080i201805-202007

main89340-78090i201805-201905

main89340-78091i201905-202007

main89340-78100i201805-201905

main89340-78101i201905-202007

main89340-78102supersedes 89340-78092i202007

main89340-78120i201805-202007

89341ASENSOR, ULTRASONIC, NO.1

main89341-78010-C1×2i201609-201709

main89341-78020×2i201407-201709

89341BSENSOR, ULTRASONIC, NO.2

main89341-78010-A0×2i201407-201709

main89341-78010-A1×2i201609-201709

main89341-78010-B0×2i201612-201709

main89341-78010-B1×2i201407-201709

main89341-78010-B2×2i201407-201709

main89341-78010-C1×2i201407-201709

main89341-78010-C2×2i201407-201509

main89341-78010-C3×2i201509-201709

main89341-78010-D0×2i201407-201709

main89341-78010-E0×2i201407-201509

main89341-78010-E2×2i201612-201709

main89341-78010-E3×2i201609-201709

main89341-78010-J0×2i201407-201609

main89341-78010-J1×2i201407-201509

main89341-78010-J3×2i201609-201709

main89341-78010-J8×2i201609-201709

89341CSENSOR, ULTRASONIC, NO.3

main89341-78010-A0×2i201407-201709

main89341-78010-A1×2i201609-201709

main89341-78010-B0×2i201407-201709

main89341-78010-B1×2i201609-201709

main89341-78010-B2×2i201609-201709

main89341-78010-C1×2i201609-201709

main89341-78010-C2×2i201407-201509

main89341-78010-C3×2i201509-201709

main89341-78010-D0×2i201407-201709

main89341-78010-E0×2i201407-201509

main89341-78010-E2×2i201509-201709

main89341-78010-E3×2i201609-201709

main89341-78010-J0×2i201407-201609

main89341-78010-J1×2i201407-201509

main89341-78010-J3×2i201609-201709

main89341-78010-J8×2i201509-201709

89341DSENSOR, ULTRASONIC, NO.4

main89341-78010-A0×2i201407-201709

main89341-78010-A1×2i201609-201709

main89341-78010-B0×2i201407-201709

main89341-78010-B1×2i201612-201709

main89341-78010-B2×2i201407-201709

main89341-78010-C1×2i201407-201709

main89341-78010-C2×2i201407-201509

main89341-78010-C3×2i201509-201709

main89341-78010-D0×2i201407-201709

main89341-78010-E0×2i201407-201509

main89341-78010-E2×2i201612-201709

main89341-78010-E3×2i201609-201709

main89341-78010-J0×2i201407-201609

main89341-78010-J1×2i201407-201509

main89341-78010-J3×2i201609-201709

main89341-78010-J8×2i201609-201709

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010i202007

8 parts on this diagram · 2 diagrams in section
