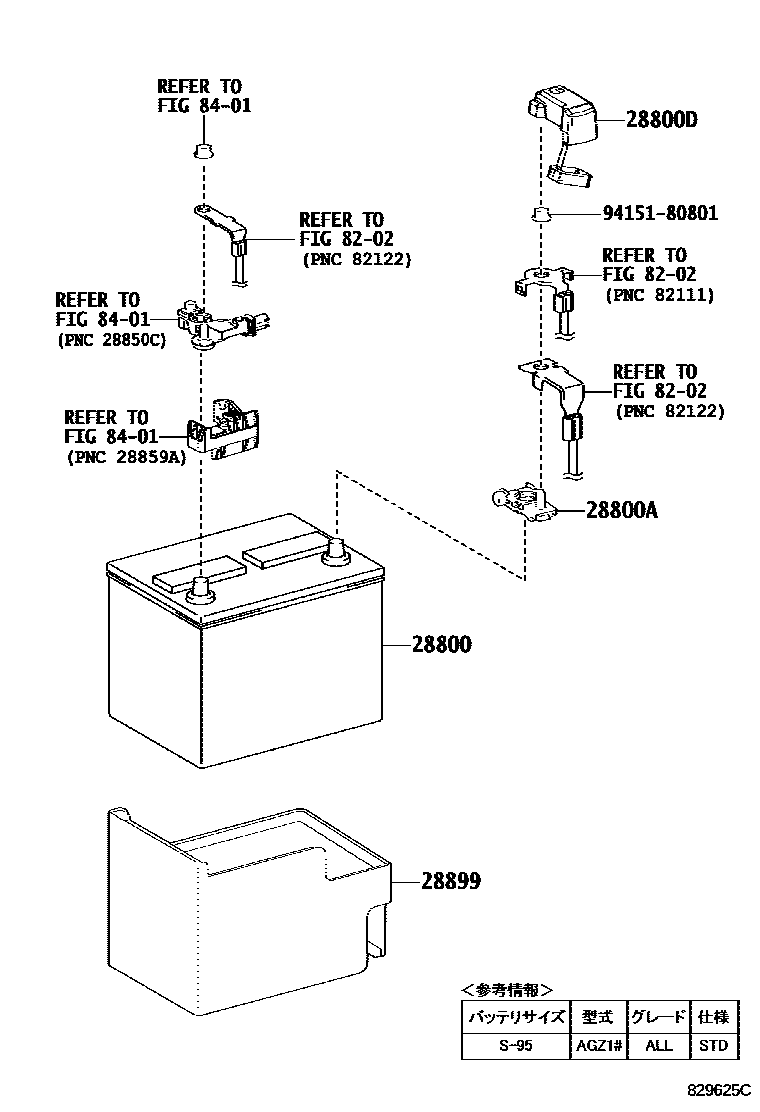

BATTERY & BATTERY CABLE

0001 1 0002 112V ����� 0003 1HV ����� 0004 1HV ����� 0005 1HV �����

28800BATTERY

main28800-36180i8ARFTS..AGZ1#201709

main28800-36190i2ARFXE..AYZ1#201407-201507

main28800-36191i2ARFXE..AYZ1#201508-201709

28800ATERMINAL, BATTERY POSITIVE

main90982-05056i2ARFXE..AYZ1#201709

main90982-05062i8ARFTS..AGZ1#201709

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33360i8ARFTS..AGZ1#201407-201709

main82821-78010i2ARFXE..AYZ1#201407-201709

28899INSULATOR, BATTERY

main28899-36050i2ARFXE..AYZ1#201407-201709

main28899-36060i8ARFTS..AGZ1#201407-201709

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

7 parts on this diagram · 5 diagrams in section
