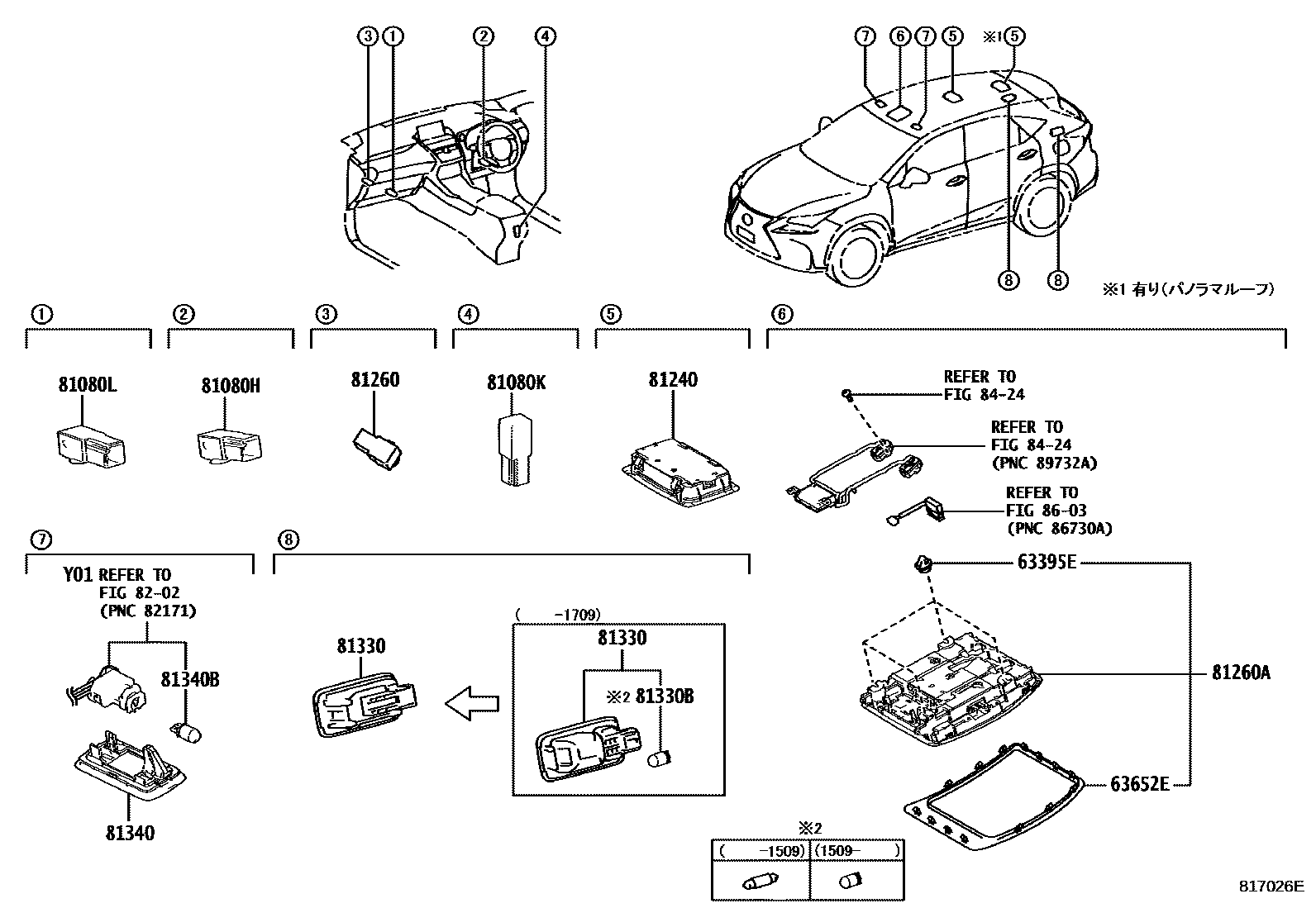

INTERIOR LAMP

63395ECLIP(FOR MAP LAMP)

main90467-09240×4iAGZ1#,AYZ1#201709-202102

main90467-09245×4iAGZ1#,AYZ1#202103

63652ECOVER, ROOF CONSOLE BOX, NO.1

main63652-78010-A0iAGZ1#,AYZ1#202007

ECRU,TRIM0#,2#,30,31,32,33,4#,6#,7#

main63652-78010-C0iAGZ1#,AYZ1#201407-201709

BLACK,TRIM9#

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-22040iAGZ1#,AYZ1#201407-201506

main81080-33290iAGZ1#,AYZ1#201709

main81080-58100iAGZ1#,AYZ1#201507-201704

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-22040iAGZ1#,AYZ1#201407-201408

main81080-33290iAGZ1#,AYZ1#201705-201709

main81080-58100iAGZ1#,AYZ1#201409-201704

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-22040iAGZ1#,AYZ1#201407-201506

main81080-33290iAGZ1#,AYZ1#201705-201709

main81080-58100iAGZ1#,AYZ1#201507-201704

81240LAMP ASSY, ROOM, NO.1

main81360-78010-A0iAGZ1#,AYZ1#201709

ECRU,TRIM0#,2#,30,31,32,33,4#,6#,7#,9#

main81360-78010-C0iAGZ1#,AYZ1#201407-201709

BLACK,TRIM9#

81260LAMP ASSY, GLOVE BOX

main81080-33290iAGZ1#,AYZ1#201705-201709

main81080-58100iAGZ1#,AYZ1#201407-201704

81260ALAMP ASSY, MAP

main81208-78080-A0supersedes 81208-78040-A0iAGZ1#,AYZ1#201407-201509

main81208-78080-C0supersedes 81208-78040-C0iAGZ1#,AYZ1#201407-201509

main81208-78110-A0supersedes 81208-78040-A0iAGZ1#,AYZ1#201407-201509

main81208-78110-C0supersedes 81208-78040-C0iAGZ1#,AYZ1#201407-201509

main81208-78190-A0supersedes 81208-78150-A0iAGZ1#,AYZ1#201509-201709

main81208-78190-C0supersedes 81208-78150-C0iAGZ1#,AYZ1#201509-201709

main81208-78220-A0supersedes 81208-78150-A0iAGZ1#,AYZ1#201509-201709

main81208-78220-C0supersedes 81208-78150-C0iAGZ1#,AYZ1#201509-201709

main81208-78330-A0supersedes 81208-78290-A0iAGZ1#,AYZ1#201709-202007

main81208-78330-C0supersedes 81208-78290-C0iAGZ1#,AYZ1#201709-202007

main81208-78360-A0supersedes 81208-78290-A0iAGZ1#,AYZ1#201709-202007

main81208-78360-C0supersedes 81208-78290-C0iAGZ1#,AYZ1#201709-202007

main81208-78440-A0supersedes 81208-78430-A0iAGZ1#,AYZ1#202007

main81208-78440-C0supersedes 81208-78430-C0iAGZ1#,AYZ1#202007

main81208-78450-A0supersedes 81208-78430-A0iAGZ1#,AYZ1#202007

main81208-78450-C0supersedes 81208-78430-C0iAGZ1#,AYZ1#202007

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-48010×2iAGZ1#,AYZ1#201407-201508

main81330-58010×2iAGZ1#,AYZ1#201509-201709

main81360-78020×2iAGZ1#,AYZ1#201709

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050×2iAGZ1#,AYZ1#201509-201709

main99132-13050×2iAGZ1#,AYZ1#201407-201509

81340LAMP ASSY, VANITY

main81340-30110×2iAGZ1#,AYZ1#201407-201709

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iAGZ1#,AYZ1#201407-201709

8202WIRING & CLAMP

→ Go to FIG 82-02

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

15 parts on this diagram · 1 diagram in section
