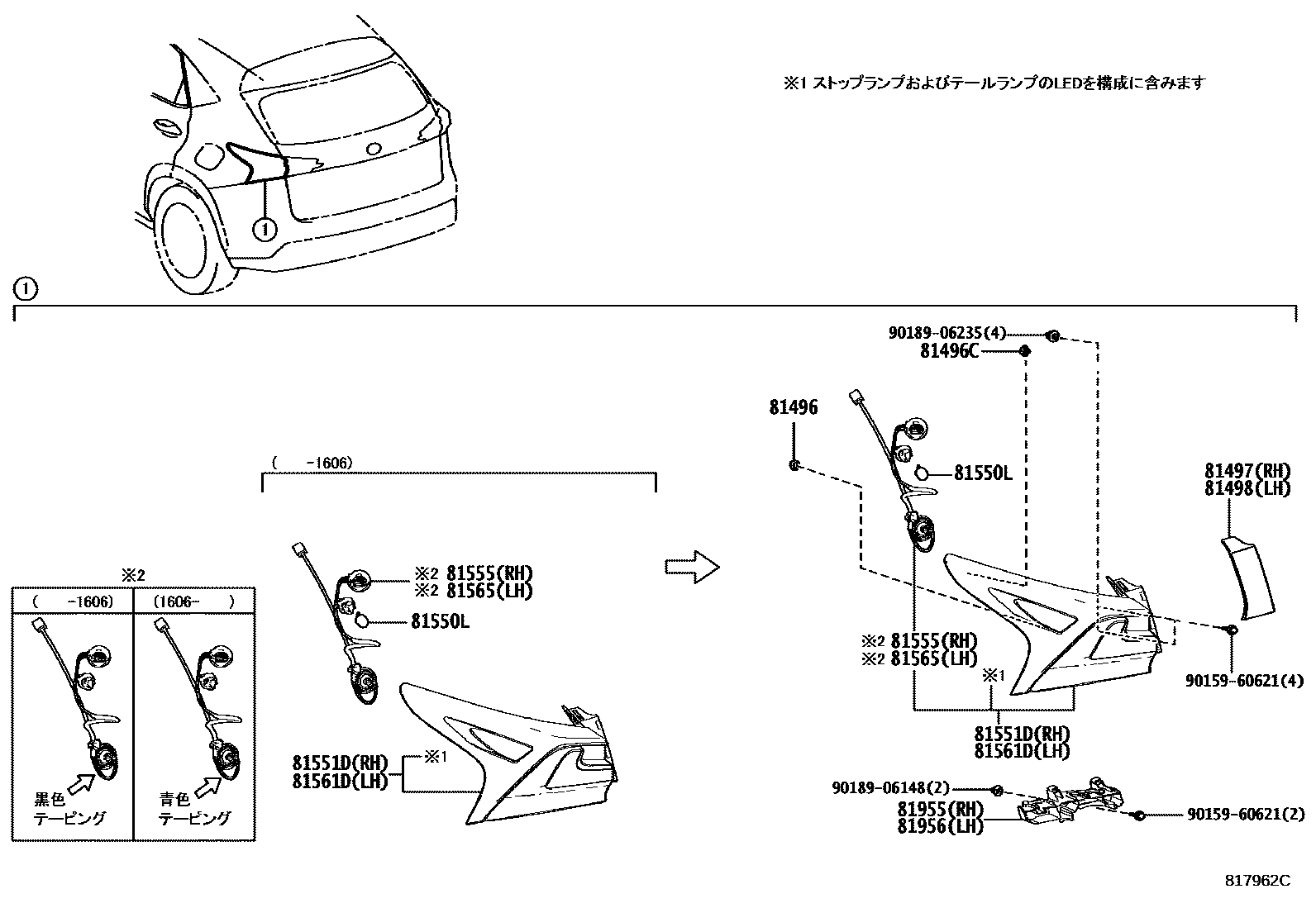

REAR COMBINATION LAMP

0001 1��������������� 0002 1������ 0003 1

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iAGZ1#,AYZ1#201407-201709

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iAGZ1#,AYZ1#201407-201709

81497COVER, REAR COMBINATION LAMP, RH

main81497-78010iAGZ1#,AYZ1#201407-201709

81498COVER, REAR COMBINATION LAMP, LH

main81498-78010iAGZ1#,AYZ1#201407-201709

81550LAMP ASSY, REAR COMBINATION, RH

main81550-78050iAGZ1#,AYZ1#201709

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011iAGZ1#,AYZ1#201407-201709

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-78020iAGZ1#,AYZ1#201407-201606

sub81551-78021

main81551-78021iAGZ1#,AYZ1#201606-201709

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-78010iAGZ1#,AYZ1#201407-201606

main81555-78011iAGZ1#,AYZ1#201606-201709

main81555-78060iAGZ1#,AYZ1#201709

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-78020iAGZ1#,AYZ1#201407-201606

sub81561-78021

main81561-78021iAGZ1#,AYZ1#201606-201709

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-78010iAGZ1#,AYZ1#201407-201606

main81555-78011iAGZ1#,AYZ1#201606-201709

main81555-78060iAGZ1#,AYZ1#201709

81955RETAINER, REAR COMBINATION LAMP, RH

main52562-78010iAGZ1#,AYZ1#201407-201709

81956RETAINER, REAR COMBINATION LAMP, LH

main52563-78010iAGZ1#,AYZ1#201407-201709

9015960621

main90159-60621

9018906148

main90189-06148

9018906235

main90189-06235

15 parts on this diagram · 3 diagrams in section
