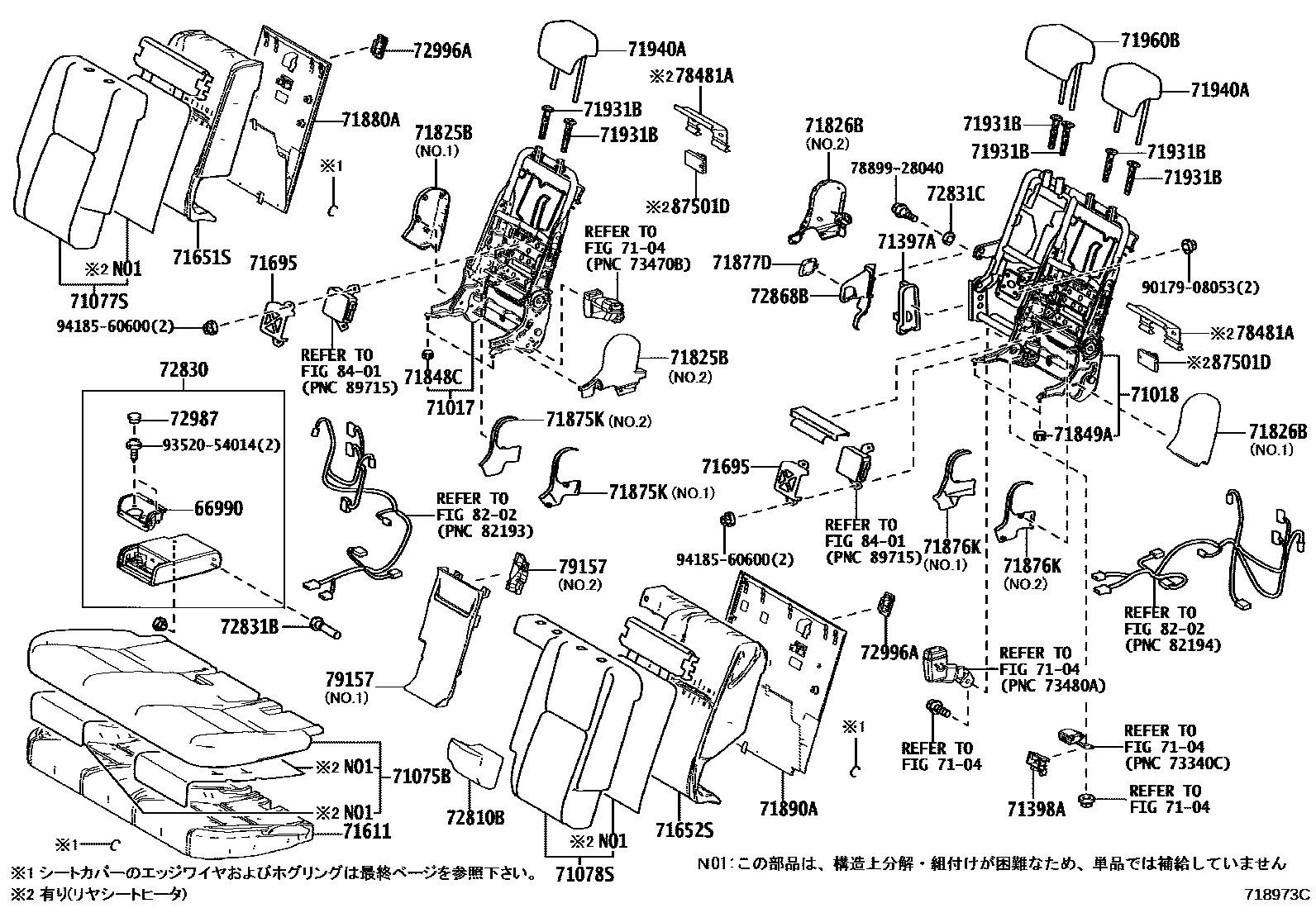

REAR SEAT & SEAT TRACK
66990HOLDER ASSY, CUP
BLACK,TRIM2#,3#
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71018FRAME SUB-ASSY, REAR SEATBACK, LH
7104SEAT BELT & CHILD RESTRAINT SEAT
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
PLATINUM/PLATINUM/LT.GRAY,TRIM1#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
PLATINUM/PLATINUM/LT.GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
PLATINUM/PLATINUM/LT.GRAY,TRIM1#
71397ACOVER, CENTER SEAT HINGE
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
71398AHOLDER, REAR SEATBACK
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
71611PAD, REAR SEAT CUSHION
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
71695PROTECTOR, REAR SEATBACK
71825BMOULDING, REAR SEAT CUSHION, RH
71826BMOULDING, REAR SEAT CUSHION, LH
71848CCAP, SEAT ADJUSTER COVER, RH
71849ACAP, SEAT ADJUSTER COVER, LH
71875KCOVER, RECLINING ADJUSTER INSIDE, RH
71876KCOVER, RECLINING ADJUSTER INSIDE, LH
71877DCOVER, REAR SEAT ARMREST HOLE
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#
71890ACARPET ASSY, REAR SEATBACK BOARD, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
PLATINUM,TRIM1#
DK.ROSE,TRIM3#
PLATINUM,TRIM1#
BLACK METAL,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
PLATINUM,TRIM1#
PLATINUM,TRIM1#
BLACK METAL,TRIM2#
72810BARMREST ASSY, NO.1 SEAT
PLATINUM,TRIM1#
72830ARMREST ASSY, REAR SEAT, CENTER
PLATINUM,TRIM1#
72831BPLATE, REAR SEAT CENTER ARMREST, NO.1
72831CPLATE, REAR SEAT CENTER ARMREST, NO.2
72868BCOVER, CENTER ARMREST HINGE
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
72987COVER, REAR SEAT CENTER ARMREST
72996COVER, REAR SEATBACK, RH
72996ACOVER, REAR SEATBACK
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
78481ACLAMP(REAR SEAT)
79157COVER, NO.1 SEATBACK
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
87501DCONTROL SUB-ASSY, SEAT HEATER
7889928040BOLT, FRONT SEAT
main78899-28040
9017908053
main90179-08053
9352054014
main93520-54014
9418560600
main94185-60600
42 parts on this diagram · 5 diagrams in section
