71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-78060i201407-201709

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-78020i201407-201709

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-78030-B3i201407-201709

PLATINUM/BLACK/LT.GRAY,TRIM1#

main71071-78030-C3i201407-201709

BLACK METAL/BLACK/LT.GRAY,TRIM2#

main71071-78030-D3i201407-201709

GARNET/BLACK/LT.GRAY,TRIM3#

main71071-78220-C1i201709-201905

BLACK METAL,TRIM2#

main71071-78220-D0i201709-201905

DK.ROSE,TRIM3#

main71071-78221-C2i201905-202112

BLACK METAL,TRIM2#

main71071-78221-D1i201905-202112

DK.ROSE,TRIM3#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-78030-B2i201407-201709

PLATINUM/BLACK/LT.GRAY,TRIM1#

main71073-78030-C5i201407-201709

BLACK METAL/BLACK/LT.GRAY,TRIM2#

main71073-78030-D5i201407-201709

GARNET/BLACK/LT.GRAY,TRIM3#

main71073-78170-C1i201709-201905

BLACK METAL,TRIM2#

main71073-78170-D0i201709-201905

DK.ROSE,TRIM3#

main71073-78171-C2i201905-202112

BLACK METAL,TRIM2#

main71073-78171-D1i201905-202112

DK.ROSE,TRIM3#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-78030i201407-201709

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-42010-C0i201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main71537-42010-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-42010-C0i201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main71538-42010-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-78030i201407-201507

main71551-78031i201508-201709

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-52030i201407-201709

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-78150i201407-201709

71759CHOOK, FRONT SEATBACK, NO.1

main71759-47011i201407-201709

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-78030-C0i201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main71811-78030-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#

71811RCLIP, FRONT SEAT CUSHION SHIELD, RH

main71769-08010i201609-201709

main71769-47020i201407-201609

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-76010i201407-201709

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-78010-C0i201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main71861-78010-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#

71861BCLIP(FOR FRONT SEAT SHIELD, RH)

main71769-47020i201407-201709

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-78020i201407-201709

main71874-60110i201407-201709

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71867-78010-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#

main71867-78010-C0i201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

71910AHEADREST ASSY, FRONT SEAT

main71910-78010-B0i201407-201412

PLATINUM,TRIM1#

main71910-78010-C0i201407-201412

BLACK METAL,TRIM2#

main71910-78010-D0i201407-201412

GARNET,TRIM3#

main71910-78010-D2i201709-201805

DK.ROSE,TRIM3#

main71910-78050-B0i201407-201709

PLATINUM,TRIM1#

main71910-78050-C5i201407-201805

BLACK METAL,TRIM2#

main71910-78050-D1i201407-201709

GARNET,TRIM3#

main71910-78050-D4i201709-201805

DK.ROSE,TRIM3#

main71910-78150-B0i201412-201709

PLATINUM,TRIM1#

main71910-78150-C0i201412-201805

BLACK METAL,TRIM2#

main71910-78150-D0i201412-201709

GARNET,TRIM3#

main71910-78360-C0i201806-201905

BLACK METAL,TRIM2#

main71910-78360-D0i201806-201905

DK.ROSE,TRIM3#

main71910-78361-C0i201905-201907

BLACK METAL,TRIM2#

main71910-78361-C1i201907-202109

BLACK METAL,TRIM2#

main71910-78361-D0i201905-201907

DK.ROSE,TRIM3#

main71910-78361-D1i201907-202109

DK.ROSE,TRIM3#

main71910-78380-C0i201806-201905

BLACK METAL,TRIM2#

main71910-78380-D0i201806-201905

DK.ROSE,TRIM3#

main71910-78381-C0i201905-201907

BLACK METAL,TRIM2#

main71910-78381-C1i201907-202109

BLACK METAL,TRIM2#

main71910-78381-D0i201905-201907

DK.ROSE,TRIM3#

main71910-78381-D2i201907-202109

DK.ROSE,TRIM3#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-C0i201709-201710

main71930-47020-C0i201407-201709

main71930-47020-C0i201709-201710

main71930-47020-C4i201710-202109

main71931-47020-C0i201709-201710

main71931-47020-C0i201407-201709

main71931-47020-C4i201710-202109

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-78110i201407-201707

main72010-78111i201708-201709

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-42030-C0i201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main72123-42030-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-42030-C0i201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main72127-42030-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-42050-C0i201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main72137-42050-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#

72137KCOVER, FRONT SEAT TRACK, RH REAR INNER

main72158-42020-C0i201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main72158-42020-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-78010i201407-201709

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-42060i201407-201709

79968BCLIP

79977AFELT, SEATBACK

main79977-78010i201407-201709

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8421AIR BAG

→ Go to FIG 84-21

85860ABLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH

main85866-33010

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-24010

main85867-78010

main85867-24020

main85867-78020

85868BRACKET, SEAT CUSHION CLIMATE CONTROL, RH

main85868-33010

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

9011910601

main90119-10601

9011910927

main90119-10927

9354114006

main93541-14006

9356014010

main93560-14010

9417060600

main94170-60600

9418560600

main94185-60600

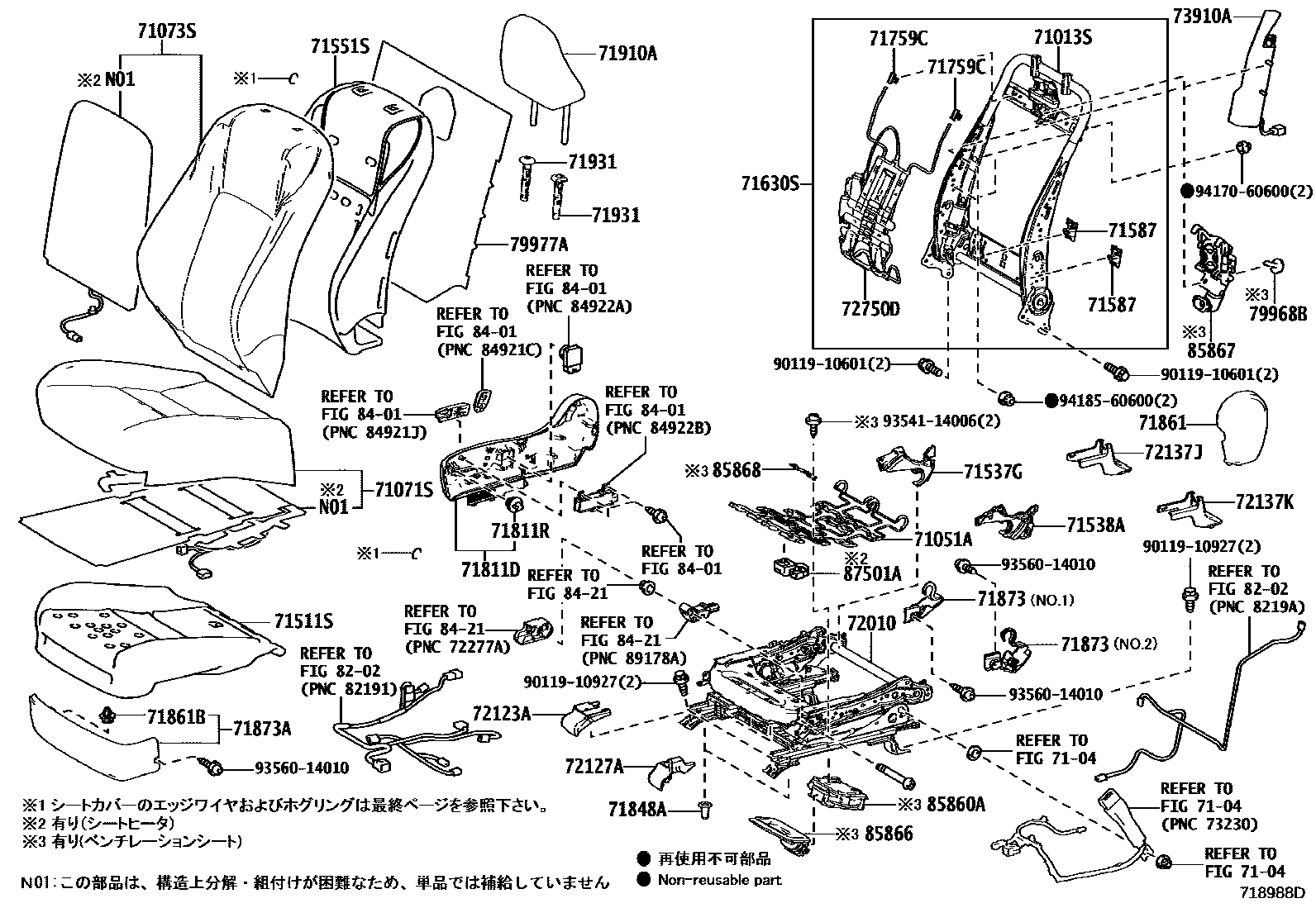

FRONT SEAT & SEAT TRACK
