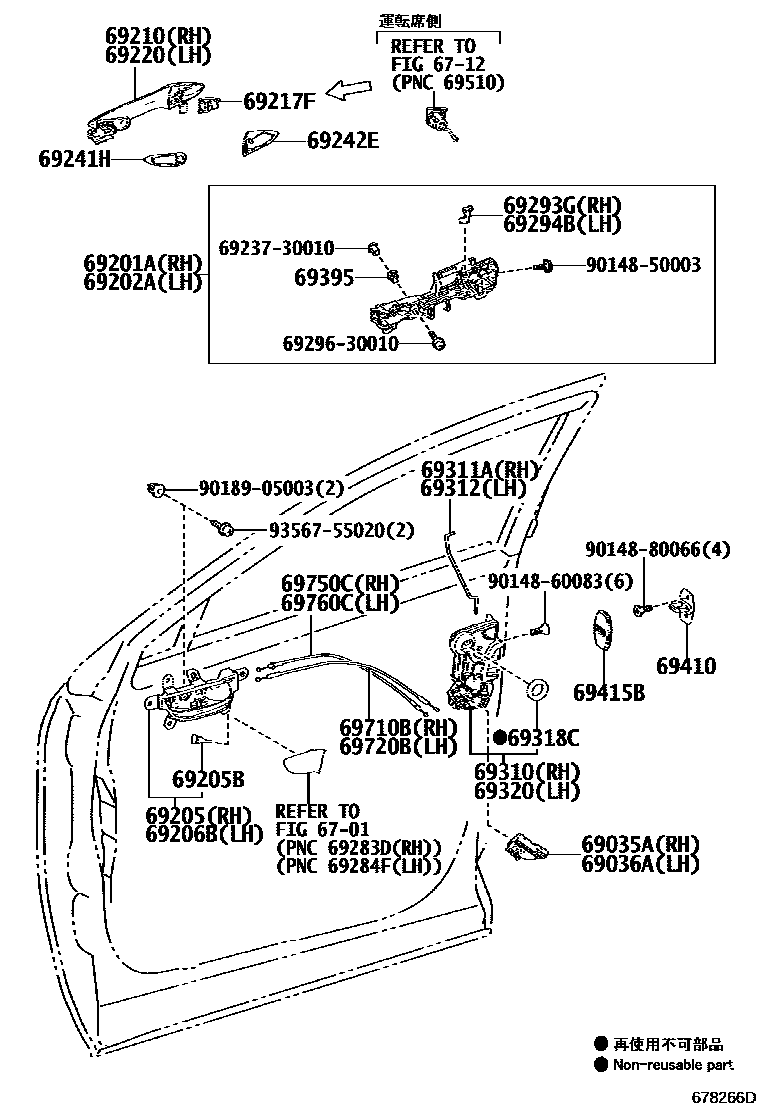

FRONT DOOR LOCK & HANDLE
6701
6712
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
WHITE OCHRE,TRIM00,01,02,03
WHITE OCHRE,TRIM00,01,02,03,25,26,27,28
RICH CREAM,TRIM7#
BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,8#,9#
CRIMSON,TRIM38
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
WHITE OCHRE,TRIM00,01,02,03
WHITE OCHRE,TRIM00,01,02,03,25,26,27,28
RICH CREAM,TRIM7#
BLACK,TRIM04,05,06,07,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,8#,9#
CRIMSON,TRIM38
WHITE OCHRE,TRIM00,01,02,03
RICH CREAM,TRIM7#
BLACK,TRIM0#,2#,3#,4#,5#,6#,9#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
35 parts on this diagram · 1 diagram in section
