DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
58387FCLIP, REAR FLOOR FINISH PLATE
58408ABOARD SUB-ASSY, DECK, NO.2
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#
58409ABOARD SUB-ASSY, DECK, NO.3
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
58410BBOARD ASSY, DECK
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
58460JSTRIKER ASSY, LUGGAGE HOLD BELT
58470CHANDLE ASSY, DECK BOARD
BLACK
58571HCARPET, REAR FLOOR
58689BWEIGHT, REAR FLOOR
58780EBAND ASSY, TOOL BOX
58790ACARRIER ASSY, JACK
58792FSUPPORT, JACK CARRIER
61653CBRACKET, DECK SIDE TRIM, RH
61654DBRACKET, DECK SIDE TRIM, NO.2
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64342ACLIP
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
64726BCLIP, DECK REAR TRIM
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM0#,1#,2#,3#,5#,9#
64733BBOARD, DECK TRIM SIDE, UPR RH
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
64734BBOARD, DECK TRIM SIDE, UPPER LH
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64779BSTOPPER, SPARE WHEEL COVER
64910JCOVER ASSY, TONNEAU
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
64933ABRACKET, TONNEAU COVER HOLDER, RH
64934ABRACKET, TONNEAU COVER HOLDER, LH
64937ACAP, TONNEAU COVER HOLDER, NO.1
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
64997CCLIP(FOR DECK FLOOR BOX)
66310HHOOK ASSY, ROPE
BLACK
BLACK
75201CBOX SUB-ASSY, TOOL, NO.1
75205ABOX SUB-ASSY, TOOL, NO.2
6291148010WEATHERSTRIP, CENTER FRONT SIDE WINDOW, CENTER
main62911-48010
9010511053
main90105-11053
9010511058
main90105-11058
9011906840
main90119-06840
9015960411
main90159-60411
9046705164B2
main90467-05164B2
9046710167
main90467-10167
9356855014
main93568-55014

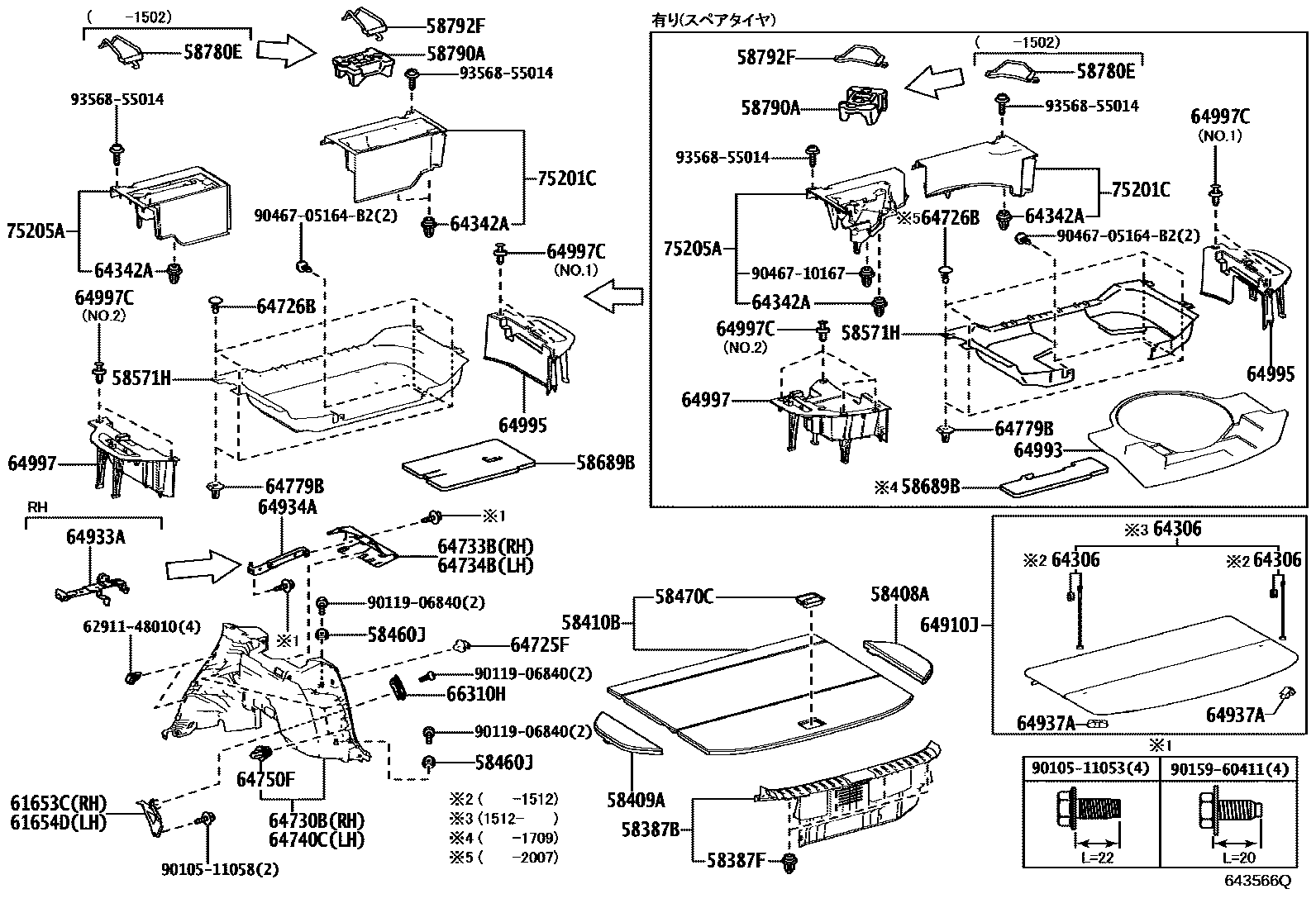

43 parts on this diagram · 2 diagrams in section
