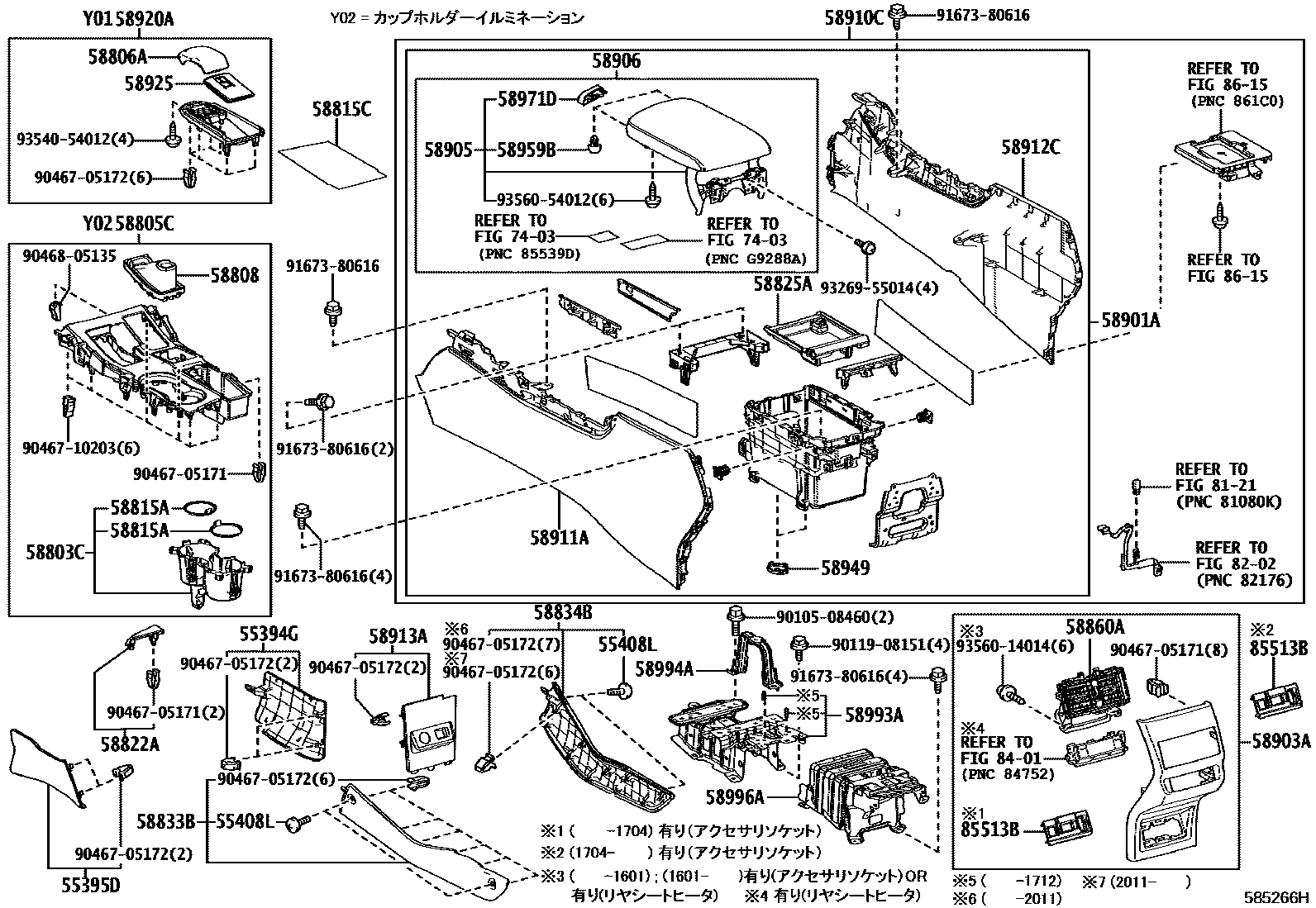

CONSOLE BOX & BRACKET
55394GCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 RH
BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#,9#
55395DCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 LH
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
55408LSCREW SUB-ASSY, INSTRUMENT CLUSTER FINISH END
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
LT.GRAY NO.831,TRIM0#,1#,2#,3#,4#,5#,90,92
DK.ROSE NO.59,TRIM91,93,94,95
BLACK/DK.ROSE,TRIM35,36,37
BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,6#,7#,9#
BLACK/MUSTARD YELLOW,TRIM51,52
BLACK/ORANGE,TRIM44,45,46,47
BLACK/CRIMSON,TRIM38
BLACK/IVORY,TRIM28
BLACK/BLUE,TRIM8#
58806APOCKET SUB-ASSY, CONSOLE BOX
BLACK/DK.ROSE,TRIM91,93,94,95
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92
BLACK/DK.ROSE,TRIM91,93,94,95
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92
BLACK/DK.ROSE,TRIM35,36,37
BLACK/LT.GRAY,TRIM0#,2#,3#,4#,50,51,52,6#,7#,9#
BLACK/MUSTARD YELLOW,TRIM51,52
BLACK/ORANGE,TRIM44,45,46,47
BLACK/IVORY,TRIM28
BLACK/CRIMSON,TRIM38
BLACK/BLUE,TRIM8#
58808COVER SUB-ASSY, SHIFTING HOLE
LT.GRAY NO.831,TRIM0#,1#,2#,3#,4#,5#,90,92
DK.ROSE NO.59,TRIM91,93,94,95
BLACK/DK.ROSE,TRIM35,36,37
BLACK/LT.GRAY,TRIM0#,2#,3#,4#,50,51,52,6#,7#,9#
BLACK/MUSTARD YELLOW,TRIM51,52
BLACK/ORANGE,TRIM44,45,46,47
BLACK/CRIMSON,TRIM38
BLACK/IVORY,TRIM28
BLACK/BLUE,TRIM8#
58815ACARPET, CONSOLE BOX
58815CCARPET, CONSOLE BOX
58822APANEL, CONSOLE, UPPER REAR
58825APOCKET, CONSOLE BOX
58833BGARNISH, CONSOLE UPPER PANEL, NO.1
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,91,92
BLACK/DK.ROSE,TRIM91,93,94,95
BLACK/IVORY,TRIM28
BLACK/BLUE,TRIM8#
BLACK/DK.ROSE,TRIM36,37
BLACK/MUSTARD YELLOW,TRIM5#
BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9#
BLACK/ORANGE,TRIM44,45,46,47
BLACK/CRIMSON,TRIM38
58834BGARNISH, CONSOLE UPPER PANEL, NO.2
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,91,92
BLACK/DK.ROSE,TRIM91,93,94,95
BLACK/IVORY,TRIM28
BLACK/BLUE,TRIM8#
BLACK/DK.ROSE,TRIM36,37
BLACK/MUSTARD YELLOW,TRIM5#
BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9#
BLACK/ORANGE,TRIM44,45,46,47
BLACK/CRIMSON,TRIM38
58860AREGISTER ASSY, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
58903APANEL SUB-ASSY, CONSOLE REAR END
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92
BLACK/DK.ROSE,TRIM91,93,94,95
BLACK/IVORY,TRIM28
BLACK/BLUE,TRIM8#
BLACK/DK.ROSE,TRIM36,37
BLACK/MUSTARD YELLOW,TRIM5#
BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9#
BLACK/ORANGE,TRIM44,45,46,47
BLACK/CRIMSON,TRIM38
58906DOOR SUB-ASSY, UPPER CONSOLE
58910CBOX ASSY, CONSOLE, REAR
BLACK/LT.GRAY,TRIM0#,2#,30,31,32,33,4#,6#,7#,9#
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
58920AARMREST ASSY, REAR CONSOLE
BLACK/DK.ROSE,TRIM91,93,94,95
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92
BLACK/DK.ROSE,TRIM91,93,94,95
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92
BLACK/DK.ROSE,TRIM35,36,37
BLACK/LT.GRAY,TRIM0#,2#,3#,4#,50,51,52,6#,7#,9#
BLACK/MUSTARD YELLOW,TRIM51,52
BLACK/ORANGE,TRIM44,45,46,47
BLACK/CRIMSON,TRIM38
BLACK/IVORY,TRIM28
BLACK/BLUE,TRIM8#
58925LID, REAR CONSOLE ARMREST
BLACK/DK.ROSE,TRIM91,93,94,95
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92
BLACK/DK.ROSE,TRIM91,93,94,95
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,4#,5#,90,92
BLACK/DK.ROSE,TRIM35,36,37
BLACK/LT.GRAY,TRIM0#,2#,3#,4#,50,51,52,6#,7#,9#
BLACK/MUSTARD YELLOW,TRIM51,52
BLACK/ORANGE,TRIM44,45,46,47
BLACK/IVORY,TRIM28
BLACK/CRIMSON,TRIM38
BLACK/BLUE,TRIM8#
58949PLATE, CONSOLE BOX
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58971DLEVER, CONSOLE COMPARTMENT DOOR LOCK
BLACK,TRIM0#,1#,2#,3#,4#,5#,9#
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7403CAUTION PLATE (EXTERIOR & INTERIOR)
8121INTERIOR LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
8615TELEPHONE & MAYDAY
9010508460
main90105-08460
9011908151
main90119-08151
9046705171
main90467-05171
9046705172
main90467-05172
9046710203
main90467-10203
9046805135
main90468-05135
9167380616
main91673-80616
9326955014
main93269-55014
9354054012
main93540-54012
9356014014
main93560-14014
9356054012
main93560-54012
47 parts on this diagram · 2 diagrams in section
