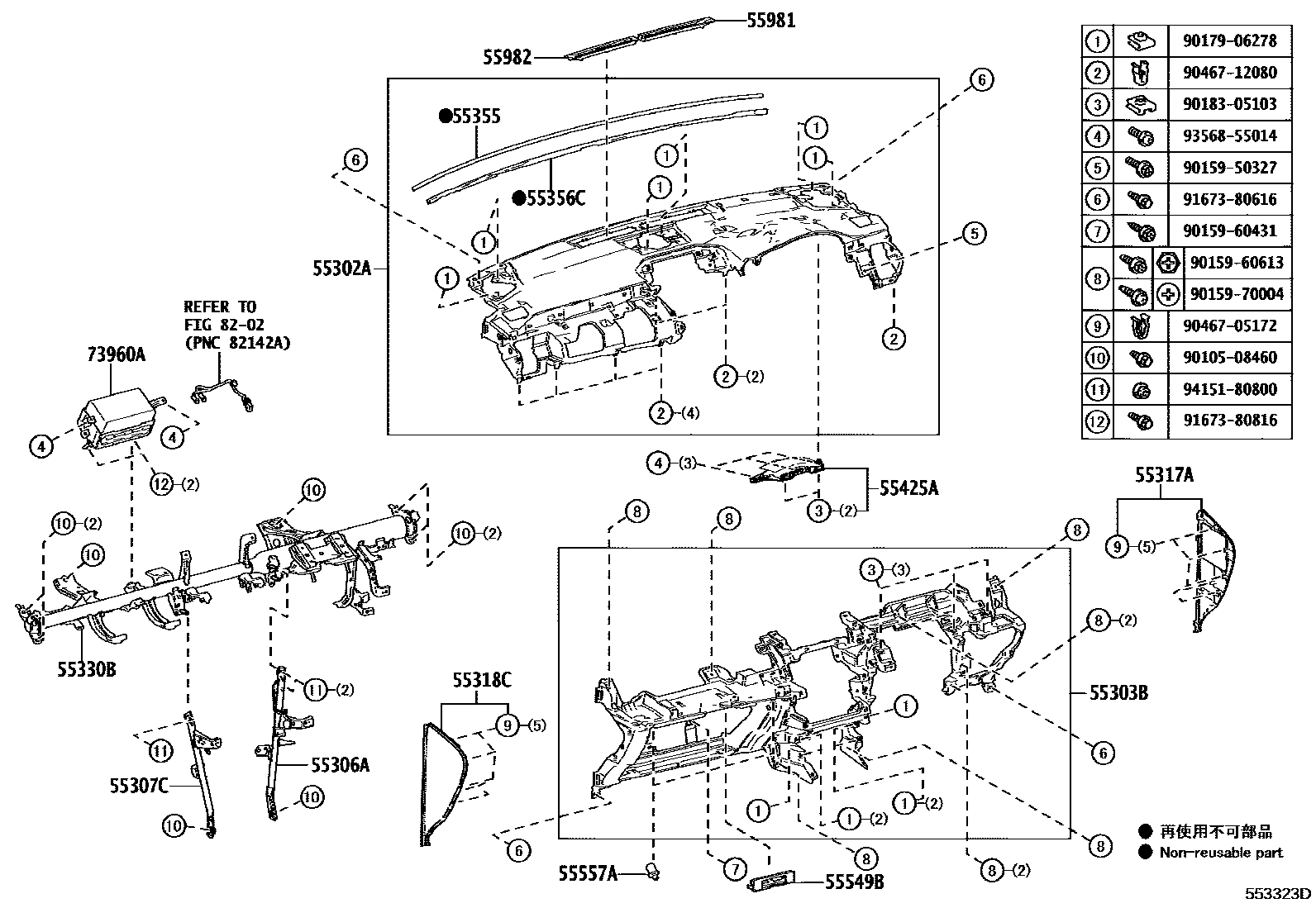

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1��(����������������) 0002 1��(����������������) 0003 1��(����������������) 0004 1��������� 0005 1��������� 0006 1����� 0007 1����� 0008 1���������� 0009 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55305-78020-C3iAGZ1#,AYZ1#201609-201709

main55305-78020-C4iAGZ1#,AYZ1#201609-201709

main55305-78040-C1supersedes 55305-78020-C1iAGZ1#,AYZ1#201407-201709

main55305-78040-C2supersedes 55305-78020-C2iAGZ1#,AYZ1#201407-201709

main55305-78040-C3iAGZ1#,AYZ1#201609-201709

main55305-78040-C4iAGZ1#,AYZ1#201609-201709

main55305-78060-C5iAGZ1#202001-202007

main55305-78080-C0supersedes 55305-78060-C0iAGZ1#,AYZ1#201709

main55305-78080-C1supersedes 55305-78060-C1iAGZ1#,AYZ1#201709

main55305-78080-C2supersedes 55305-78060-C2iAGZ1#,AYZ1#201709-201905

main55305-78080-C3supersedes 55305-78060-C3iAGZ1#,AYZ1#201905

main55305-78080-C4supersedes 55305-78060-C4iAGZ1#,AYZ1#202007

main55305-78080-C5iAGZ1#202001-202007

main55305-78080-C6supersedes 55305-78060-C6iAGZ1#,AYZ1#202007

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-78020-C0iAGZ1#,AYZ1#201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-78020iAGZ1#,AYZ1#201407-201709

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-78020iAGZ1#,AYZ1#201709

55317APANEL, INSTRUMENT SIDE, RH

main55317-78010-C0iAGZ1#,AYZ1#201407-201602

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main55317-78011-C0iAGZ1#,AYZ1#201603-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-78010-C0iAGZ1#,AYZ1#201407-201602

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

main55318-78011-C0iAGZ1#,AYZ1#201603-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-78031iAGZ1#,AYZ1#201407-201709

main55330-78070iAGZ1#,AYZ1#201709

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-78010iAGZ1#,AYZ1#201407-201709

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-78030iAGZ1#,AYZ1#201407-201709

55425ABRACKET, METER HOOD SET

main55425-78020iAGZ1#,AYZ1#201407-201709

main55425-78030iAGZ1#,AYZ1#201709

55549BCOVER, INSTRUMENT PANEL HOLE, NO.2

main55549-78010iAGZ1#,AYZ1#201709

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-52030×2iAGZ1#,AYZ1#201706-201709

main55557-78010×2iAGZ1#,AYZ1#201407-201705

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-78010iAGZ1#,AYZ1#201407-201709

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-78010iAGZ1#,AYZ1#201407-201709

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-78050iAGZ1#,AYZ1#201407-201709

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508460

main90105-08460

9015950327

main90159-50327

9015960431

main90159-60431

9015960613

main90159-60613

9015970004

main90159-70004

9017906278

main90179-06278

9018305103

main90183-05103

9046705172

main90467-05172

9046712080

main90467-12080

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

29 parts on this diagram · 9 diagrams in section
