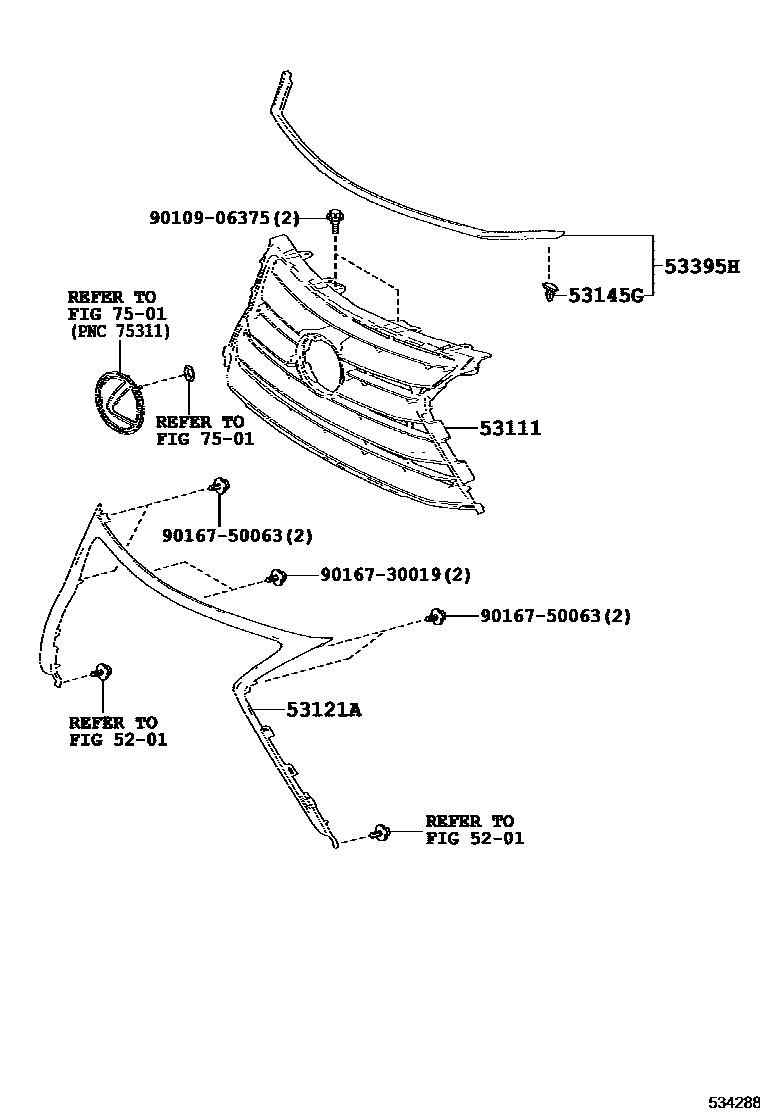

RADIATOR GRILLE

0001 1 0002 1F SPORT 0003 1 0004 1F SPORT

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

53111GRILLE, RADIATOR

main53111-78020iAGZ1#,AYZ1#201609-201709

main53111-78040supersedes 53111-78010iAGZ1#,AYZ1#201407-201709

main53111-78100supersedes 53111-78010iAGZ1#,AYZ1#201612-201709

main53111-78110supersedes 53111-78010iAGZ1#,AYZ1#201612-201709

53121AMOULDING, RADIATOR GRILLE

main53121-78080iAGZ1#,AYZ1#201709-202007

main53121-78100supersedes 53121-78060iAGZ1#,AYZ1#201612-201709

main53121-78110iAGZ1#202001-202007

53145GCLIP, RADIATOR GRILLE

main53145-60030×14iAGZ1#,AYZ1#201407-201709

main90467-08229×13iAGZ1#,AYZ1#201709

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-78010iAGZ1#,AYZ1#201407-201709

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906375

main90109-06375

9016730019

main90167-30019

9016750063

main90167-50063

9 parts on this diagram · 4 diagrams in section
