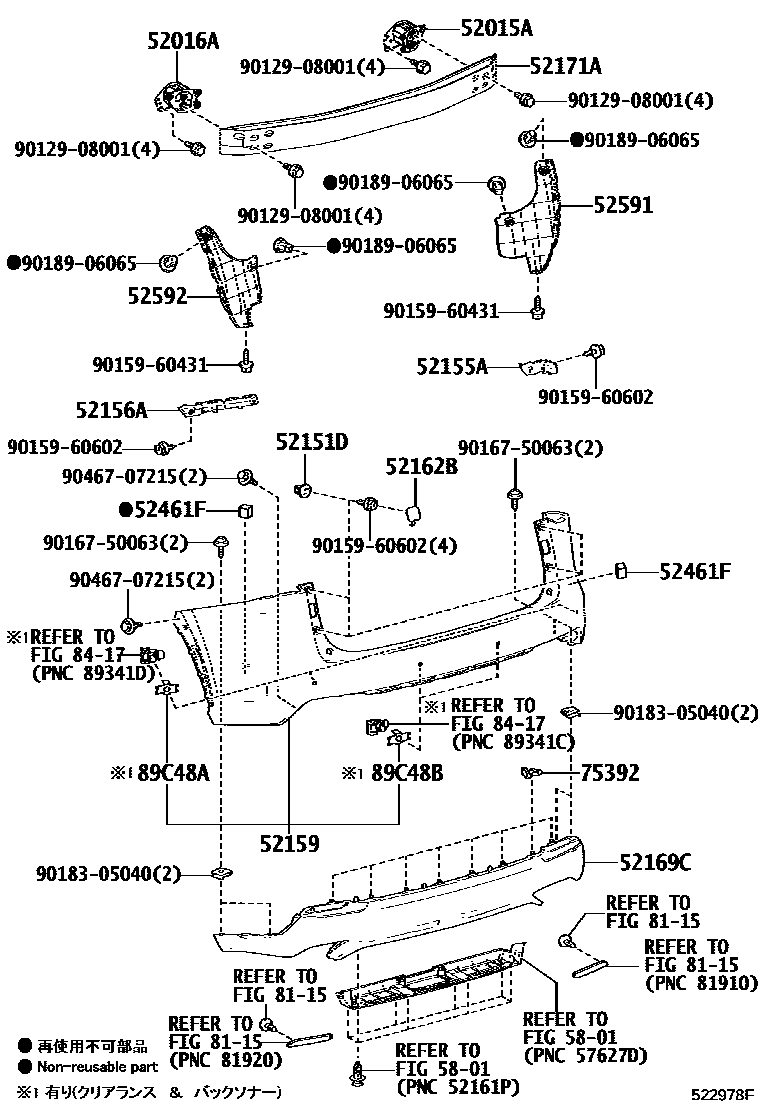

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-78010iAGZ1#,AYZ1#201407-201709

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-78010iAGZ1#,AYZ1#201709

52151DGROMMET(FOR REAR BUMPER)

main52188-33040×4iAGZ1#,AYZ1#201603-201709

main90189-06228×4iAGZ1#,AYZ1#201407-201602

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-78010iAGZ1#,AYZ1#201407-201709

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-78010iAGZ1#,AYZ1#201407-201709

52159COVER, REAR BUMPER

main52159-78915-A1iAGZ1#,AYZ1#202007

main52159-78915-E0supersedes 52159-78011-E2iAGZ1#,AYZ1#202007

LAVA ORANGE CS.,4W7

main52159-78915-E2supersedes 52159-78011-E3iAGZ1#,AYZ1#202007

BLAZING CARNELIAN CONTRAS,4Y1

main52159-78915-G0iAGZ1#,AYZ1#202007

TERRANE KHAKI M.M.,6X4

main52159-78915-J0supersedes 52159-78011-J3iAGZ1#,AYZ1#202007

HEAT BLUE CONTRAST LAYERI,8X1

main52159-78915-J2iAGZ1#,AYZ1#202007

CELESTIAL BLUE GF.,8Y6

main52159-78916-A0supersedes 52159-78011-A1iAGZ1#,AYZ1#202007

WHITE NOVA GF.,083

main52159-78916-A1supersedes 52159-78040-A1iAGZ1#,AYZ1#202007

main52159-78916-B0supersedes 52159-78040-B0iAGZ1#,AYZ1#202007

MERCURY GRAY MC.,1H9

main52159-78916-B2supersedes 52159-78040-B1iAGZ1#,AYZ1#202007

SONIC TITANIUM,1J7

main52159-78916-C0supersedes 52159-78040-C0iAGZ1#,AYZ1#202007

BLACK,212

main52159-78916-C1supersedes 52159-78040-C1iAGZ1#,AYZ1#202007

GRAPHITE BLACK GF.,223

main52159-78916-D0supersedes 52159-78040-D0iAGZ1#,AYZ1#202007

RED MC.CS.,3R1

main52159-78905-A0supersedes 52159-78010-A0iAGZ1#,AYZ1#201407-201709

main52159-78905-A1supersedes 52159-78010-A1iAGZ1#,AYZ1#201509-201709

main52159-78905-B0supersedes 52159-78011-B0iAGZ1#,AYZ1#201407-201709

main52159-78905-B1supersedes 52159-78010-B1iAGZ1#,AYZ1#201407-201709

main52159-78905-B2supersedes 52159-78011-B2iAGZ1#,AYZ1#201407-201709

main52159-78905-C0supersedes 52159-78011-C0iAGZ1#,AYZ1#201407-201709

main52159-78905-C1supersedes 52159-78010-C1iAGZ1#,AYZ1#201407-201509

main52159-78905-C2supersedes 52159-78010-C2iAGZ1#,AYZ1#201509-201709

main52159-78905-D0supersedes 52159-78011-D0iAGZ1#,AYZ1#201407-201709

main52159-78905-E0supersedes 52159-78010-E0iAGZ1#,AYZ1#201407-201509

main52159-78905-E1supersedes 52159-78010-E1iAGZ1#,AYZ1#201509-201709

main52159-78905-E2supersedes 52159-78010-E2iAGZ1#,AYZ1#201609-201709

main52159-78905-J0supersedes 52159-78010-J0iAGZ1#,AYZ1#201407-201609

main52159-78905-J1supersedes 52159-78010-J1iAGZ1#,AYZ1#201407-201509

main52159-78905-J2supersedes 52159-78010-J2iAGZ1#,AYZ1#201509-201709

main52159-78905-J3supersedes 52159-78010-J3iAGZ1#,AYZ1#201609-201709

main52159-78906-A0supersedes 52159-78010-A0iAGZ1#,AYZ1#201709-201904

main52159-78906-A1supersedes 52159-78011-A1iAGZ1#,AYZ1#201709-201904

main52159-78906-B0supersedes 52159-78011-B0iAGZ1#,AYZ1#201709-201904

main52159-78906-B1supersedes 52159-78010-B1iAGZ1#,AYZ1#201709-201904

main52159-78906-B2supersedes 52159-78011-B2iAGZ1#,AYZ1#201709-201904

main52159-78906-C0supersedes 52159-78011-C0iAGZ1#,AYZ1#201709-201904

main52159-78906-C2supersedes 52159-78011-C2iAGZ1#,AYZ1#201709-201904

main52159-78906-D0supersedes 52159-78011-D0iAGZ1#,AYZ1#201709-201904

main52159-78906-E1supersedes 52159-78010-E1iAGZ1#,AYZ1#201709-201904

main52159-78906-E2supersedes 52159-78010-E2iAGZ1#,AYZ1#201709-201904

main52159-78906-J2supersedes 52159-78010-J2iAGZ1#,AYZ1#201709-201904

main52159-78906-J3supersedes 52159-78010-J3iAGZ1#,AYZ1#201709-201904

main52159-78915-A0supersedes 52159-78011-A1iAGZ1#,AYZ1#201904-201909

main52159-78915-B0supersedes 52159-78011-B0iAGZ1#,AYZ1#201904-201906

main52159-78915-B2supersedes 52159-78011-B2iAGZ1#,AYZ1#201904-201906

main52159-78915-C0supersedes 52159-78011-C0iAGZ1#,AYZ1#201904-201906

main52159-78915-C1supersedes 52159-78011-C2iAGZ1#,AYZ1#201904-201906

main52159-78915-D0supersedes 52159-78011-D0iAGZ1#,AYZ1#201904-201906

main52159-78915-E1supersedes 52159-78011-E1iAGZ1#,AYZ1#201904-202007

main52159-78915-J1supersedes 52159-78011-J2iAGZ1#,AYZ1#201904-202007

52162BPLATE, REAR BUMPER, NO.1

main52162-78010-A0×4iAGZ1#,AYZ1#201407-201709

SONIC QUARTZ,085

main52162-78010-A1×4iAGZ1#,AYZ1#201509-201709

WHITE NOVA GF.,083

main52162-78010-B0×4iAGZ1#,AYZ1#201709

MERCURY GRAY MC.,1H9

main52162-78010-B1×4iAGZ1#,AYZ1#201709-201904

PLATINUM SILVER ME.,1J4

main52162-78010-B2×4iAGZ1#,AYZ1#201709

SONIC TITANIUM,1J7

main52162-78010-C0×4iAGZ1#,AYZ1#201407-201709

BLACK,212

main52162-78010-C1×4iAGZ1#,AYZ1#201407-201509

STARLIGHT BLACK GF.,217

main52162-78010-C2×4iAGZ1#,AYZ1#201509-201709

GRAPHITE BLACK GF.,223

main52162-78010-D0×4iAGZ1#,AYZ1#201407-201709

RED MC.CS.,3R1

main52162-78010-E0×4iAGZ1#,AYZ1#201407-201509

FIRE AGATE M.M.,4V3

main52162-78010-E1×4iAGZ1#,AYZ1#201509-201709

AMBER CS.,4X2

main52162-78010-E2×4iAGZ1#,AYZ1#201709

LAVA ORANGE CS.,4W7

main52162-78010-E3×4iAGZ1#,AYZ1#201904

BLAZING CARNELIAN CONTRAS,4Y1

main52162-78010-G0×4iAGZ1#,AYZ1#202007

TERRANE KHAKI M.M.,6X4

main52162-78010-J0×4iAGZ1#,AYZ1#201407-201609

BLUE ME.,8U1

main52162-78010-J1×4iAGZ1#,AYZ1#201407-201509

METEOR BLUE M.M.,8W3

main52162-78010-J2×4iAGZ1#,AYZ1#201709-202007

SPARKLING METEOR ME.,8X9

main52162-78010-J3×4iAGZ1#,AYZ1#201709

HEAT BLUE CONTRAST LAYERI,8X1

main52162-78010-J4×4iAGZ1#,AYZ1#202007

CELESTIAL BLUE GF.,8Y6

52169CCOVER, REAR BUMPER, LOWER

main52169-78010iAGZ1#201407-201709

main52169-78020iAYZ1#201407-201709

main52169-78030iAGZ1#201709

main52169-78050iAYZ1#201709

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-78010iAGZ1#,AYZ1#201407-201709

52461FPAD, REAR BUMPER

main52462-78010×2iAGZ1#,AYZ1#201407-201609

main52462-78011×2iAGZ1#,AYZ1#201609-201709

52591SEAL, REAR BUMPER SIDE, RH

main52591-78010iAGZ1#,AYZ1#201407-201709

main52591-78020iAGZ1#,AYZ1#201709

52592SEAL, REAR BUMPER SIDE, LH

main52592-78010iAGZ1#,AYZ1#201407-201709

main52592-78020iAGZ1#,AYZ1#201709

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

75392RETAINER, OUTSIDE MOULDING

main75392-35220×8iAGZ1#,AYZ1#201407-201709

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-50130×2iAGZ1#,AYZ1#201709-202007

main89348-78020×2supersedes 89348-50130iAGZ1#,AYZ1#201407-201709

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-33130×2supersedes 89348-50130iAGZ1#,AYZ1#201905-202007

main89348-50130×2iAGZ1#,AYZ1#201906-202007

main89348-78030×2supersedes 89348-50130iAGZ1#,AYZ1#201407-201709

9012908001

main90129-08001

9015960431

main90159-60431

9015960602

main90159-60602

9016750063

main90167-50063

9018305040

main90183-05040

9018906065

main90189-06065

9046707215

main90467-07215

25 parts on this diagram · 4 diagrams in section
