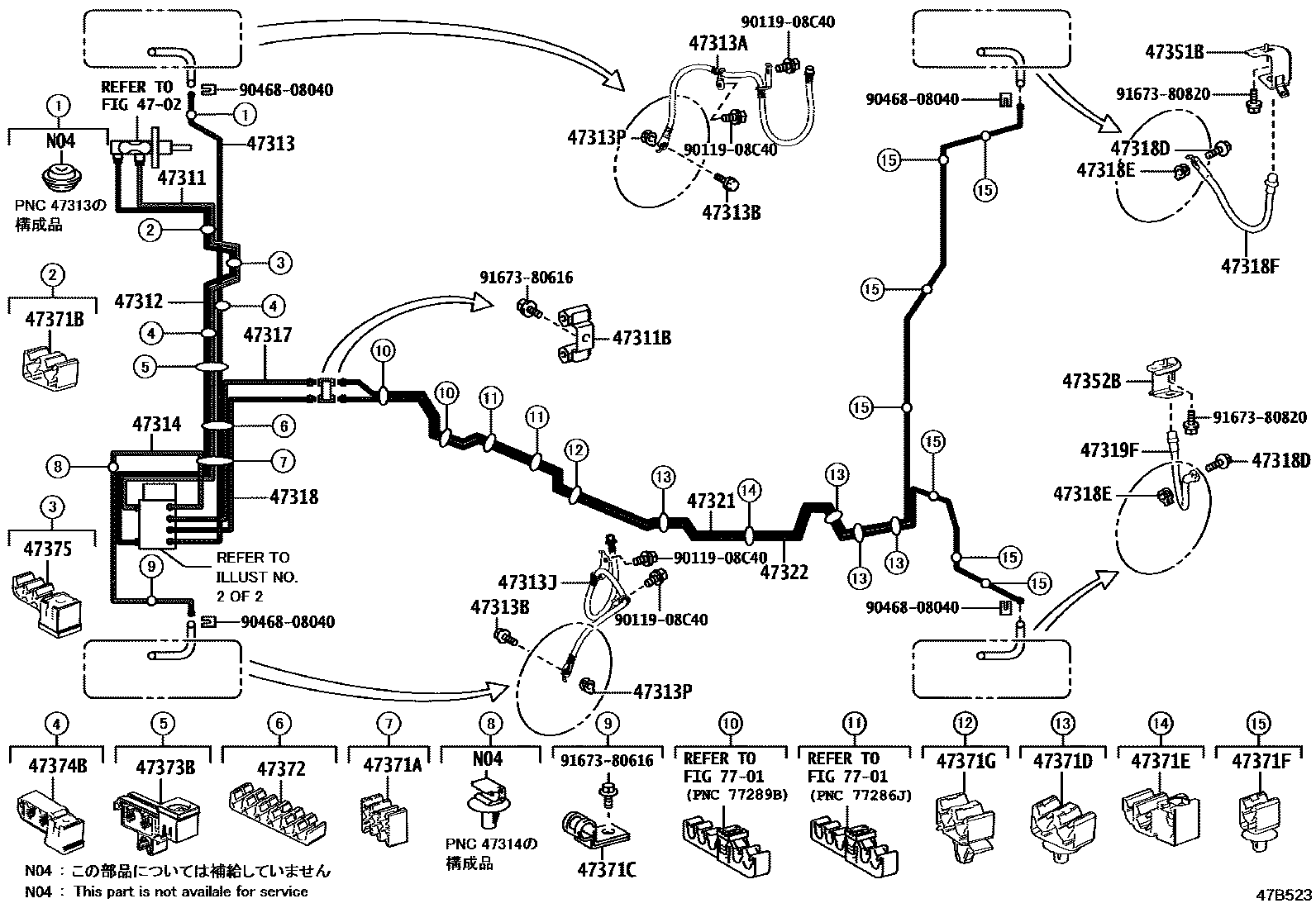

BRAKE TUBE & CLAMP

0001 1���������� 0002 1���������� 0003 1������������ 0004 1���������������

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-48070iAYZ1#201407-201709

main47311-78010iAGZ1#201709

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iAGZ1#,AYZ1#201407-201709

47312TUBE, FRONT BRAKE, NO.2

main47312-78010iAGZ1#201407-201709

47313TUBE, FRONT BRAKE, NO.3

main47313-48030iAYZ1#201407-201709

main47313-78010iAGZ1#201407-201709

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G85iAGZ1#,AYZ1#201709

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAGZ1#,AYZ1#201709

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G86iAGZ1#,AYZ1#201407-201709

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iAGZ1#,AYZ1#201407-201709

47314TUBE, FRONT BRAKE, NO.4

main47314-48040iAYZ1#201709

main47314-78010iAGZ1#201709

47317TUBE, FRONT BRAKE, NO.7

main47317-48320iAYZ1#201709

main47317-78010iAGZ1#201407-201709

47318TUBE, FRONT BRAKE, NO.8

main47318-48190iAYZ1#201407-201709

main47318-78010iAGZ1#201407-201709

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAGZ1#,AYZ1#201709

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iAGZ1#,AYZ1#201407-201709

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H23iAGZ1#,AYZ1#201407-201709

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H23iAGZ1#,AYZ1#201709

47321TUBE, REAR BRAKE, NO.1

main47321-48130iAYZ1#201407-201709

main47321-48140iAGZ1#201407-201709

47322TUBE, REAR BRAKE, NO.2

main47322-48140iAYZ1#201407-201709

main47322-48150iAGZ1#201709

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-42071iAGZ1#,AYZ1#201407-201709

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-42071iAGZ1#,AYZ1#201407-201709

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00880iAGZ1#,AYZ1#201407-201709

47371BCLAMP, BRAKE TUBE, NO.6

main90464-00903iAGZ1#201407-201709

main90469-07019iAYZ1#201407-201709

47371CCLAMP, BRAKE TUBE, NO.7

main90461-10781iAGZ1#201407-201709

main90949-01E02×4iAYZ1#201407-201709

47371DCLAMP, BRAKE TUBE, NO.8

main77299-32030iAYZ1#201709

main90949-01E02×4iAGZ1#201407-201709

47371ECLAMP, BRAKE TUBE, NO.9

main77299-32030iAGZ1#201407-201709

main90949-01E01×7iAYZ1#201407-201709

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E01×7iAGZ1#201709

47371GCLAMP, BRAKE TUBE, NO.11

main90469-07019iAGZ1#201407-201709

47372CLAMP, BRAKE TUBE, NO.2

main90469-07026×2iAYZ1#201407-201709

main90949-01C85iAGZ1#201407-201709

47373BCLAMP, BRAKE TUBE, NO.3

main90469-07026iAGZ1#201709

main90949-01540iAYZ1#201709

47374BCLAMP, BRAKE TUBE, NO.4

main90461-10840iAYZ1#201407-201709

main90949-01D54×2iAGZ1#201407-201709

47375CLAMP, BRAKE TUBE, NO.5

main90461-10781iAYZ1#201709

main90949-01D21iAGZ1#201407-201709

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908C40

main90119-08C40

9046808040

main90468-08040

9167380616

main91673-80616

9167380820

main91673-80820

36 parts on this diagram · 4 diagrams in section
