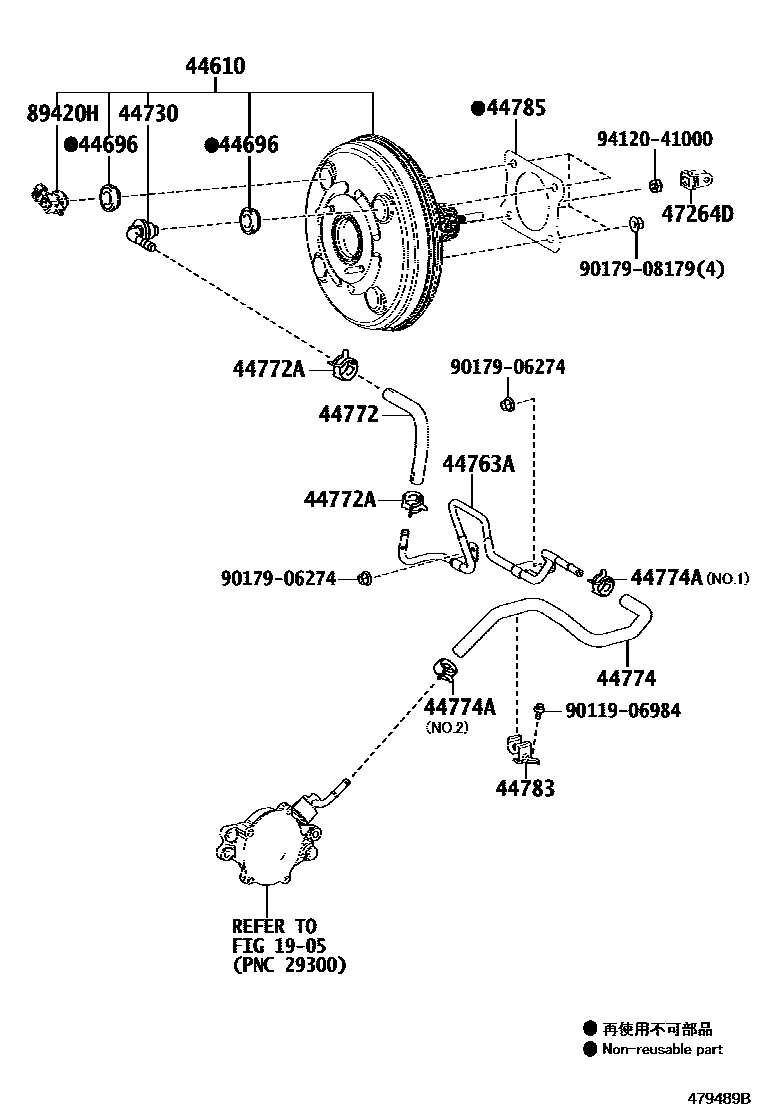

BRAKE BOOSTER & VACUUM TUBE

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-42410iAGZ1#201709

44696GROMMET, CHECK VALVE

main90480-24439×2iAGZ1#201407-201709

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iAGZ1#201407-201709

44763ATUBE, HOSE TO HOSE, NO.1

main44763-78010iAGZ1#201407-201709

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-42080iAGZ1#201407-201709

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iAGZ1#201407-201709

44774HOSE, UNION TO CONNECTOR TUBE

main44774-78010iAGZ1#201709

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iAGZ1#201407-201709

main96133-41500iAGZ1#201407-201709

44783CLAMP, VACUUM HOSE

main44783-78010iAGZ1#201407-201709

44785GASKET, BRAKE BOOSTER

main44785-12040iAGZ1#201407-201709

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iAGZ1#201407-201709

89420HSENSOR ASSY, VACUUM

main89421-52020iAGZ1#201407-201709

9011906984

main90119-06984

9017906274

main90179-06274

9017908179

main90179-08179

9412041000

main94120-41000

17 parts on this diagram · 1 diagram in section
