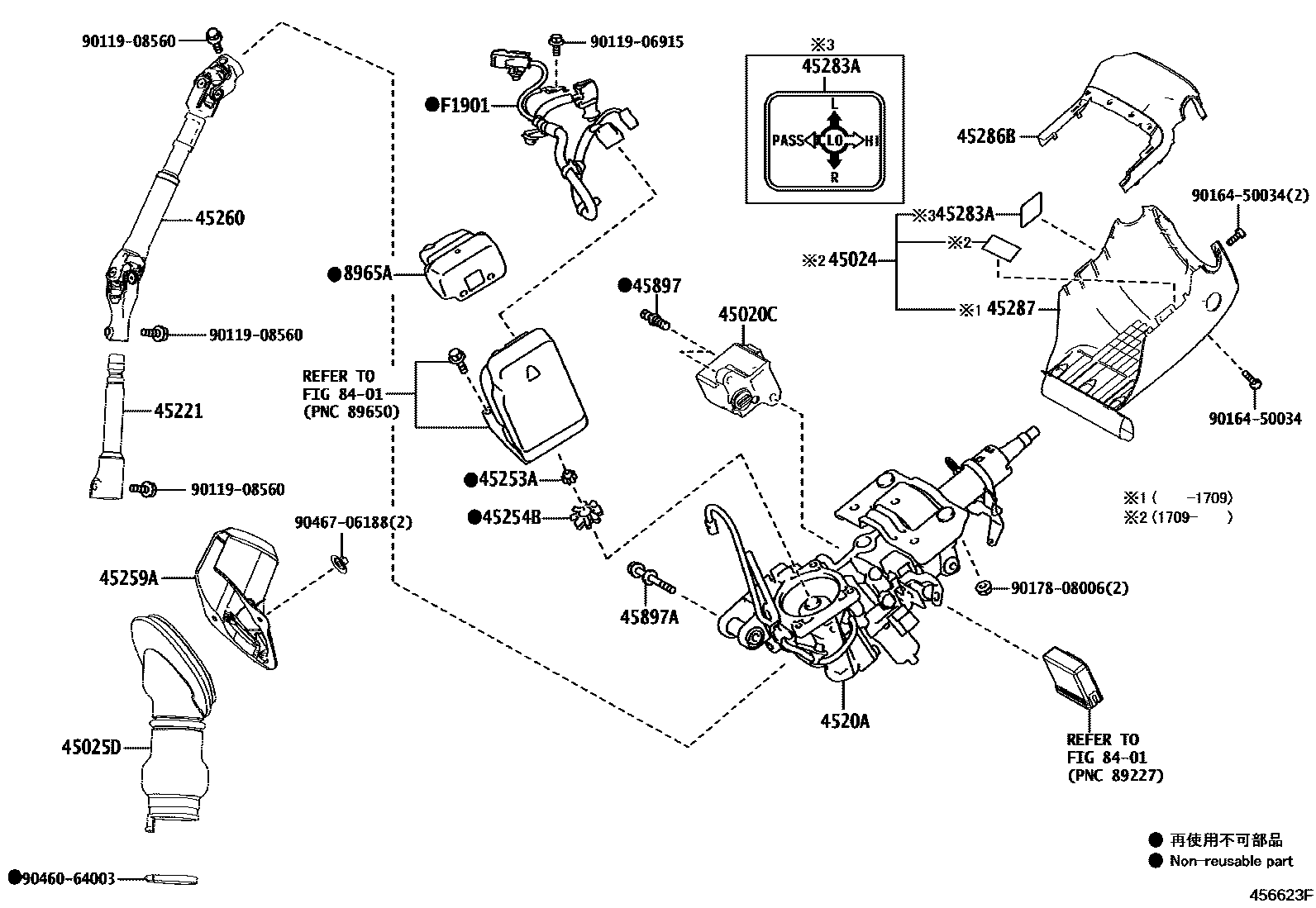

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-48090iAGZ1#,AYZ1#201407-201709

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-78030-C0iAGZ1#,AYZ1#201904

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,8#

main45024-78040-C0iAGZ1#,AYZ1#201709-201904

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42070iAGZ1#,AYZ1#201407-201709

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-48020iAGZ1#,AYZ1#201709

45221SHAFT, STEERING INTERMEDIATE

main45221-42090iAGZ1#,AYZ1#201407-201709

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iAGZ1#,AYZ1#201407-201704

main45253-33110iAGZ1#,AYZ1#201705-201709

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iAGZ1#,AYZ1#201407-201709

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-42010iAGZ1#,AYZ1#201709

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-42100iAGZ1#,AYZ1#201407-201709

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iAGZ1#,AYZ1#201407-201709

45286BCOVER, STEERING COLUMN, UPR

main45286-78010-C0iAGZ1#,AYZ1#201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

45287COVER, STEERING COLUMN, LWR

main45287-78020-C0iAGZ1#,AYZ1#201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#,9#

45897BOLT, STEERING LOCK SET

main45897-12020×2iAGZ1#,AYZ1#201407-201709

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iAGZ1#,AYZ1#201407-201709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8965APROTECTOR, POWER STEERING COMPUTER

main8965A-33011iAGZ1#,AYZ1#201407-201709

F1901WIRE SUB-ASSY, COMPUTER

mainF190148080iAGZ1#,AYZ1#201407-201709

9011906915

main90119-06915

9011908560

main90119-08560

9016450034

main90164-50034

9017808006

main90178-08006

9046064003

main90460-64003

9046706188

main90467-06188

23 parts on this diagram · 1 diagram in section
