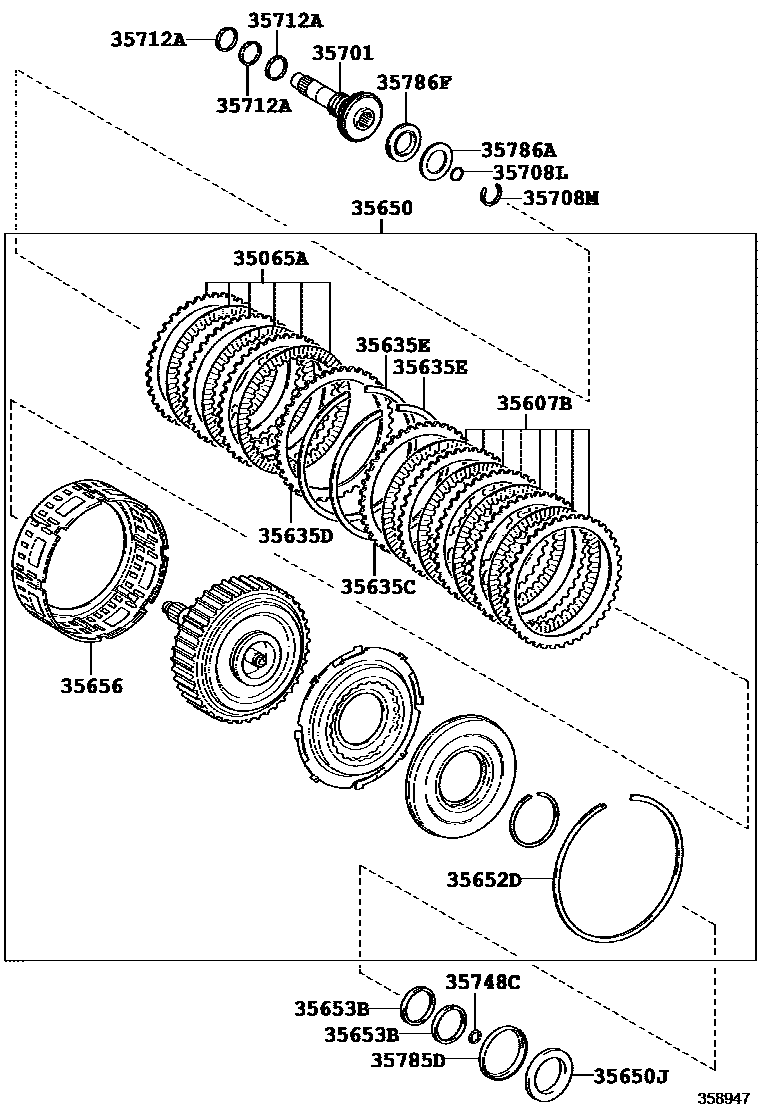

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35065ADISC SET, DIRECT CLUTCH
35607BDISC SET, FORWARD CLUTCH
35635CCLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.1
35635DCLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.2
35635ERING, SNAP (FOR DIRECT MULTIPLE DISC CLUTCH)
35650CLUTCH ASSY, REAR MULTIPLE DISC
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
35656PISTON, DIRECT CLUTCH, NO.2
35701SHAFT SUB-ASSY, INPUT
35708LRING, O (FOR INTERMEDIATE SHAFT)
35708MRING, SNAP (FOR INTERMEDIATE SHAFT)
35712ARING, INPUT SHAFT OIL SEAL
35748CRING, INTERMEDIATE SHAFT OIL SEAL
35785DRACE, THRUST BEARING, NO.4
35786ARACE, THRUST BEARING, NO.1
35786FBEARING, THRUST NEEDLE ROLLER
18 parts on this diagram · 1 diagram in section
