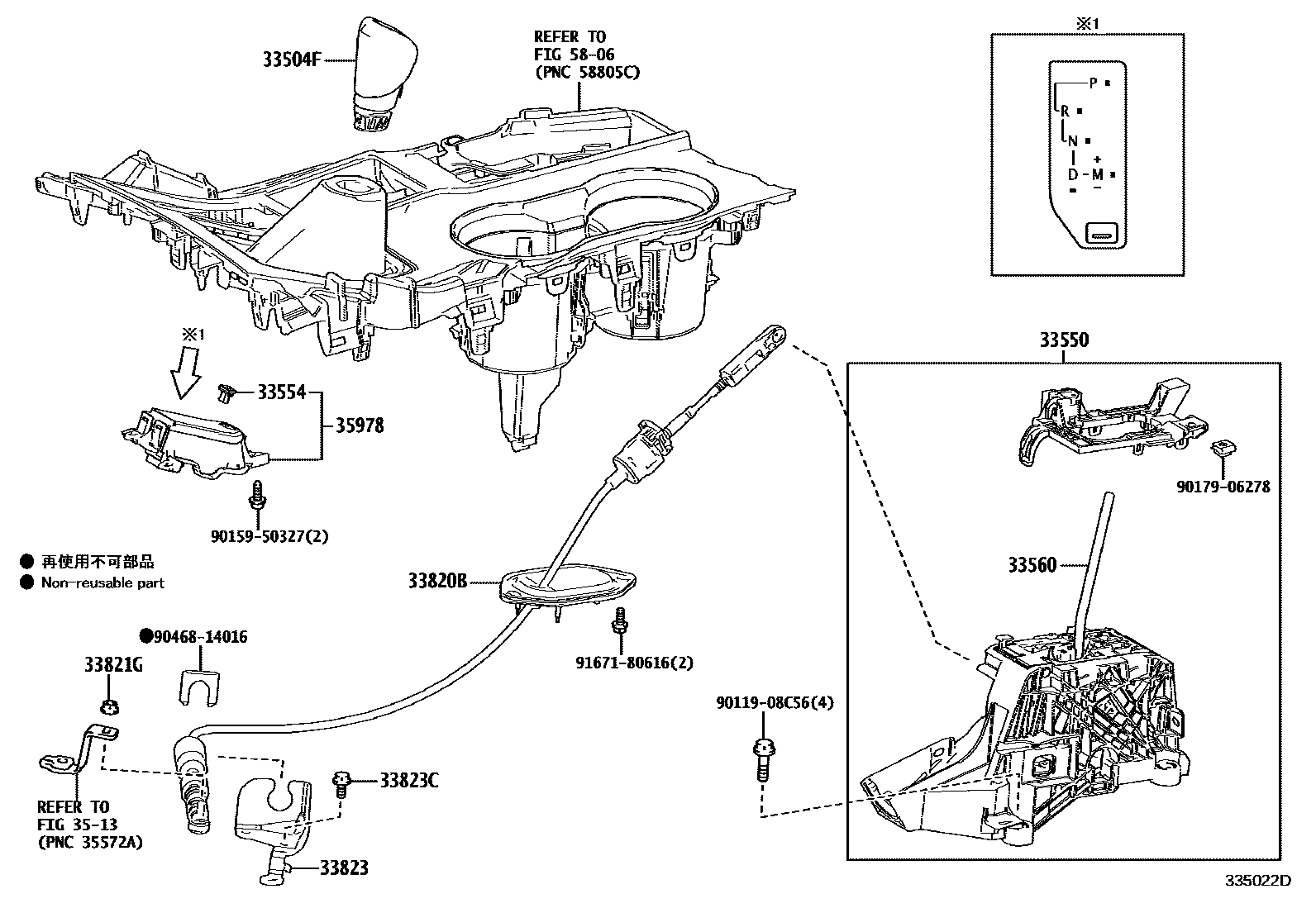

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-53110-C1iAGZ1#,AYZ1#201407-201709

BLACK,TRIM0#,1#,2#,3#,4#,5#

sub33504-48110

main33504-53130-C0iAGZ1#,AYZ1#201709

BLACK,TRIM0#,2#,3#,4#,6#,7#,9#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-78010iAGZ1#,AYZ1#201407-201709

sub33550-78011

main33550-78011iAGZ1#,AYZ1#201709

33554CAP, SHIFT LEVER

main33554-78010iAGZ1#,AYZ1#201407-201709

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-78010iAGZ1#,AYZ1#201407-201709

sub33560-78011

main33560-78011iAGZ1#,AYZ1#201709

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-78010iAGZ1#201407-201709

main33820-78020iAYZ1#201407-201709

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-08040iAGZ1#,AYZ1#201407-201812

main94151-80800iAGZ1#,AYZ1#201812

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-28280iAYZ1#201407-201709

main33823-42040iAGZ1#201407-201709

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91611-60814iAYZ1#201407-201709

main91671-80816iAGZ1#201407-201709

3513

35978INDICATOR, SHIFT POSITION

main35978-78010iAGZ1#201407-201709

main35978-78030iAYZ1#201407-201709

5806

9011908C56

main90119-08C56

9015950327

main90159-50327

9017906278

main90179-06278

9046814016

main90468-14016

9167180616

main91671-80616

16 parts on this diagram · 2 diagrams in section
