Toyota LEXUS NX SERIES — VACUUM PUMP

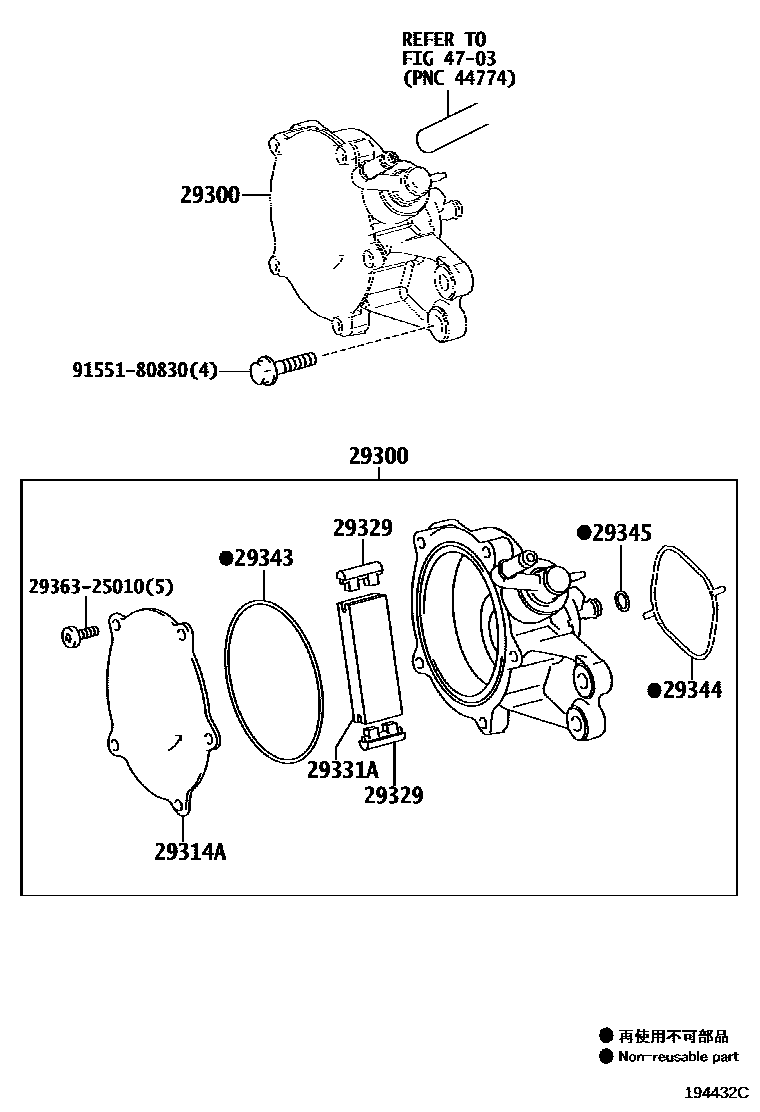

Parts diagram

29300PUMP ASSY, VACUUM

29314ACOVER, END

29329CAP, VACUUM PUMP VANE

29331AVANE, VACUUM PUMP

29343RING, O VACUUM PUMP, NO.1

29344RING, O VACUUM PUMP, NO.2

29345RING, O VACUUM PUMP, NO.3

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

9155180830

10 parts on this diagram · 1 diagram in section

VACUUM PUMP for Toyota LEXUS NX SERIES

This section contains 10 genuine Toyota parts for the VACUUM PUMP system of the Toyota LEXUS NX SERIES. Key components include: PUMP ASSY, VACUUM, COVER, END, CAP, VACUUM PUMP VANE, VANE, VACUUM PUMP, RING, O VACUUM PUMP, NO.1.
