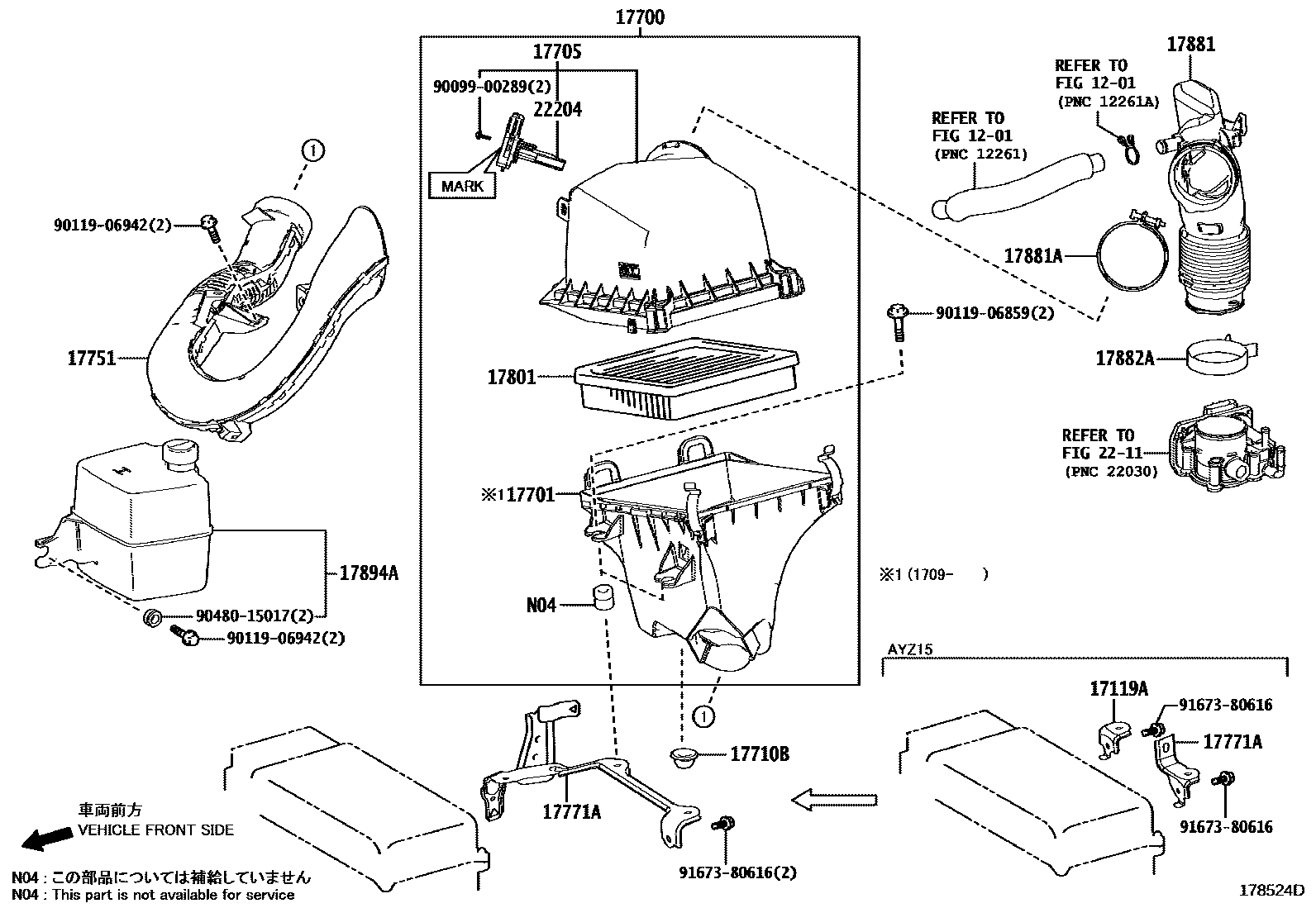

AIR CLEANER

0001 1 0002 1���������� 0003 1����������

1201VENTILATION HOSE

→ Go to FIG 12-01

17119ABRACKET, AIR CLEANER

main17119-36030i2ARFXE..AYZ15201709

17700CLEANER ASSY, AIR

main17700-36320i2ARFXE..AYZ1#201407-201709

main17700-36360i8ARFTS..AGZ1#201407-201709

17701CASE SUB-ASSY, AIR CLEANER

main17701-36250i2ARFXE..AYZ1#201709

main17701-36260i8ARFTS..AGZ1#201709

17705CAP SUB-ASSY, AIR CLEANER

main17705-36110i2ARFXE..AYZ1#201709

main17705-36140i8ARFTS..AGZ1#201407-201709

17710BGROMMET

main90480-18006i2ARFXE,8ARFTS..AGZ1#,AYZ1#201407-201709

17751INLET, AIR CLEANER, NO.1

main17751-36080i2ARFXE..AYZ1#201407-201709

main17751-36120i8ARFTS..AGZ1#201407-201709

17771ABRACKET, AIR CLEANER

main17771-36060i2ARFXE..AYZ15201407-201709

main17771-36070i2ARFXE..AYZ10201709

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31131i8ARFTS..AGZ1#201407-201709

main17801-37021i2ARFXE..AYZ1#201709-202109

17881HOSE, AIR CLEANER, NO.1

main17881-36140i2ARFXE..AYZ1#201709

main17881-36150i8ARFTS..AGZ1#201407-201709

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850i2ARFXE..AYZ1#201407-201709

main96111-10900i8ARFTS..AGZ1#201709-201809

17882HOSE, AIR CLEANER, NO.2

main17882-36040i8ARFTS..AGZ1#201407-201709

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-70003i8ARFTS..AGZ1#201407-201709

main90466-62002i2ARFXE..AYZ1#201709

17894ARESONATOR, INTAKE AIR, NO.2

main17894-36040i2ARFXE..AYZ1#201407-201709

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2ARFXE,8ARFTS..AGZ1#,AYZ1#201407-201709

main22204-0V010i2ARFXE,8ARFTS..AGZ1#,AYZ1#201709

main22204-0V020i2ARFXE,8ARFTS..AGZ1#,AYZ1#201407-201709

main22204-28010i2ARFXE,8ARFTS..AGZ1#,AYZ1#201407-201709

9009900289

main90099-00289

9011906859

main90119-06859

9011906942

main90119-06942

9048015017

main90480-15017

9167380616

main91673-80616

21 parts on this diagram · 3 diagrams in section
