ENGINE OVERHAUL GASKET KIT

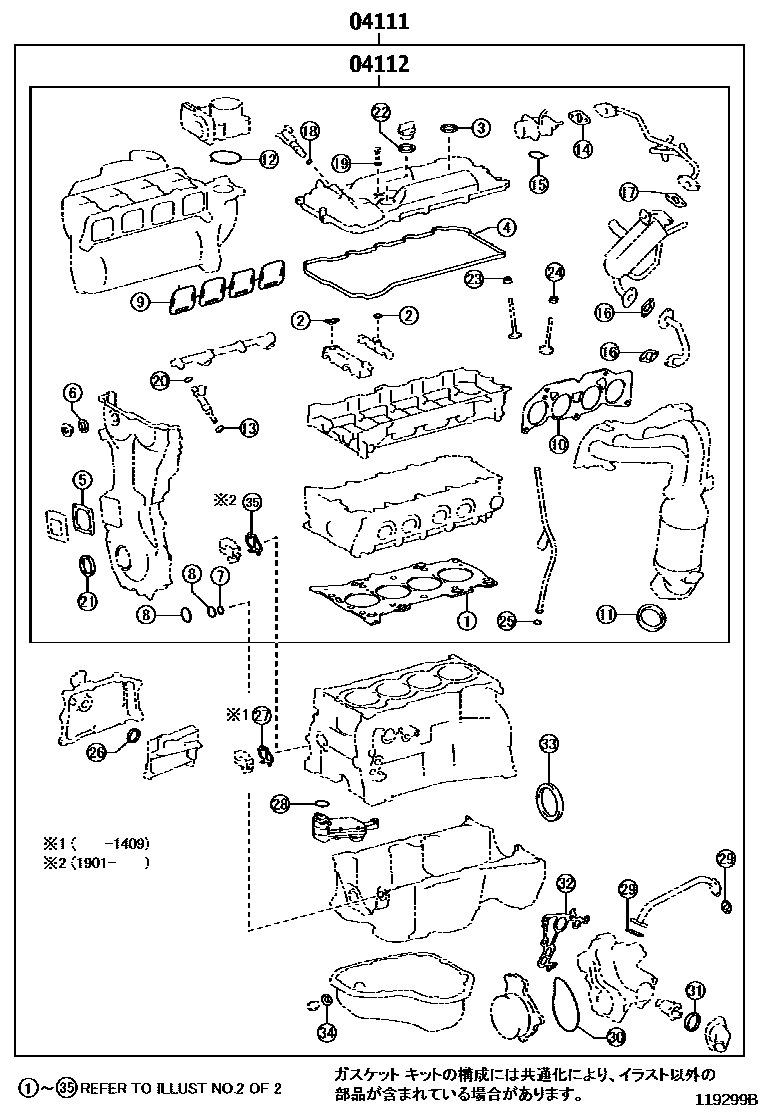

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-36190i201407-201409

main04111-36191i201709

main04111-36230i201407-201412

main04111-36231i201412-201506

main04111-36273i201810-202004

main04111-36300i201506-201602

main04111-36301i201602-201704

main04111-36302i201709-201710

main04111-36303i201710-201810

main04111-36390i202004

04112GASKET KIT, ENGINE VALVE GRIND

main04112-36092i201407-201409

main04112-36093i201409-201709

main04112-36094i201901

main04112-36180i201407-201506

main04112-36222i201810-202004

main04112-36250i201506-201704

main04112-36251i201709-201710

main04112-36252i201710-201810

main04112-36340i202004

2 parts on this diagram · 4 diagrams in section
