STANDARD TOOL

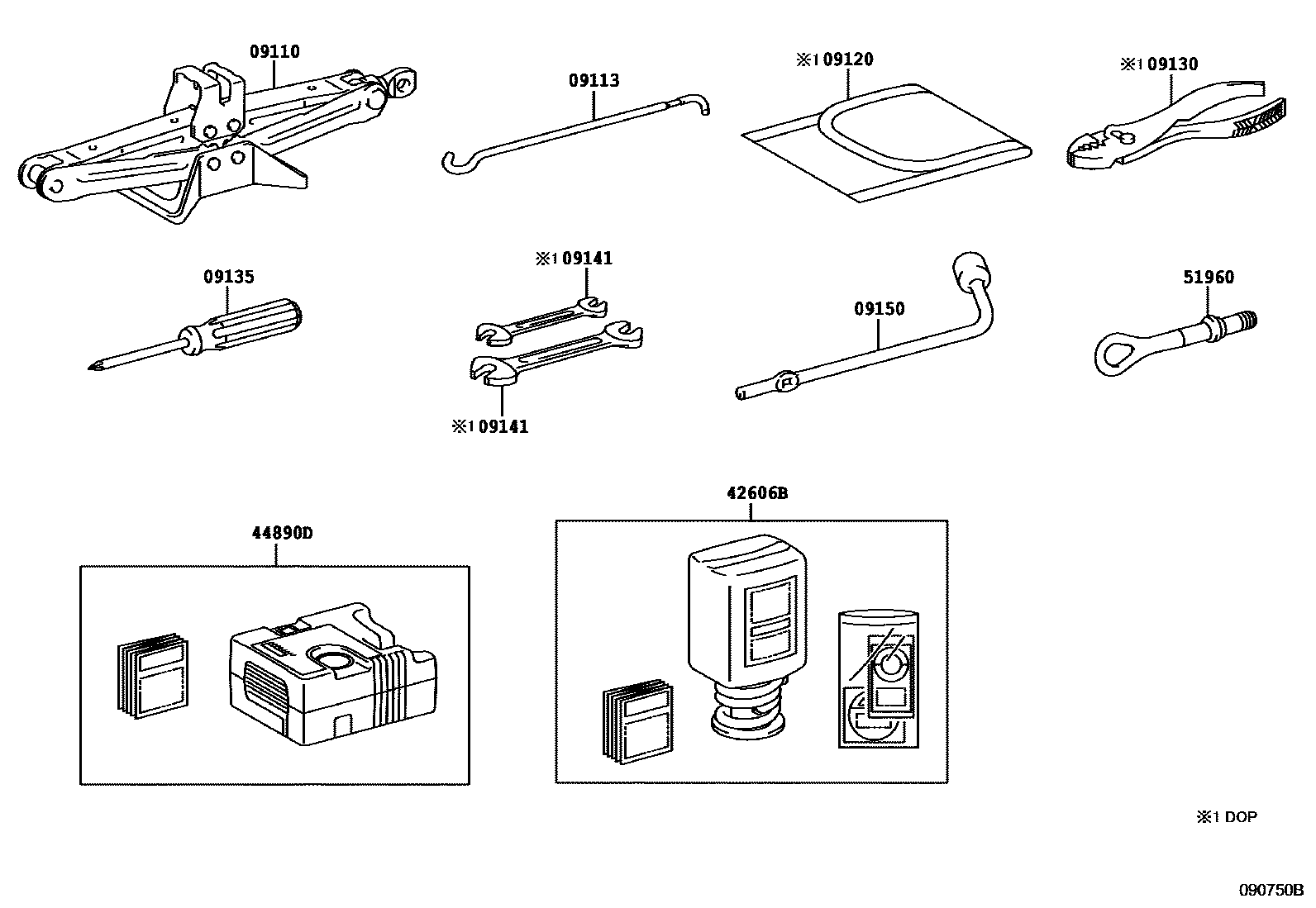

Parts diagram

09110JACK ASSY

main09111-0E011i201407-201602

main09111-0W150i201603-201709

09113HANDLE, JACK

main09113-42030i201407-201709

09120BAG, TOOL

main09120-24020i201709

09130PLIERS

main09130-50040i201407-201709

09135DRIVER, SCREW

main09135-50060i201407-201709

main99915-10700i202004

09141SPANNER

main09141-60010i201709

main09141-60020i201407-201709

09150WRENCH, HUB NUT BOX

main09150-30020i201407-201709

42606BREPAIR KIT, TUBELESS TIRE

main42606-50040i201407-201709

44890DCOMPRESSOR ASSY, AIR

main44890-78010i201407-201709

51960HOOK ASSY, FRONT

main51961-78010×2i201407-201709

main51961-78020×2i201709

10 parts on this diagram · 1 diagram in section
