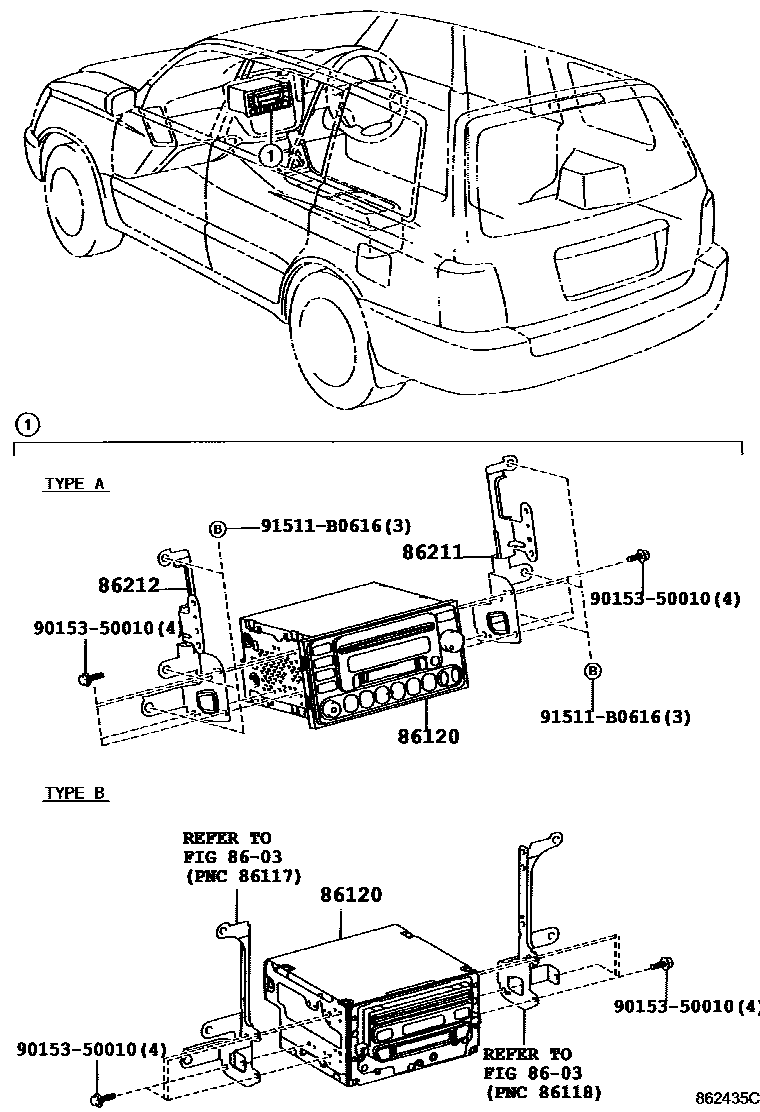

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER & NOISE FILTER

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-48112supersedes 86120-63011iMHU28200503-200705

86211BRACKET, RADIO, NO.1

main86211-48040iMHU28200503

86212BRACKET, RADIO, NO.2

main86212-48040iMHU28200503

9015350010

main90153-50010

91511B0616

main91511-B0616

6 parts on this diagram · 2 diagrams in section
