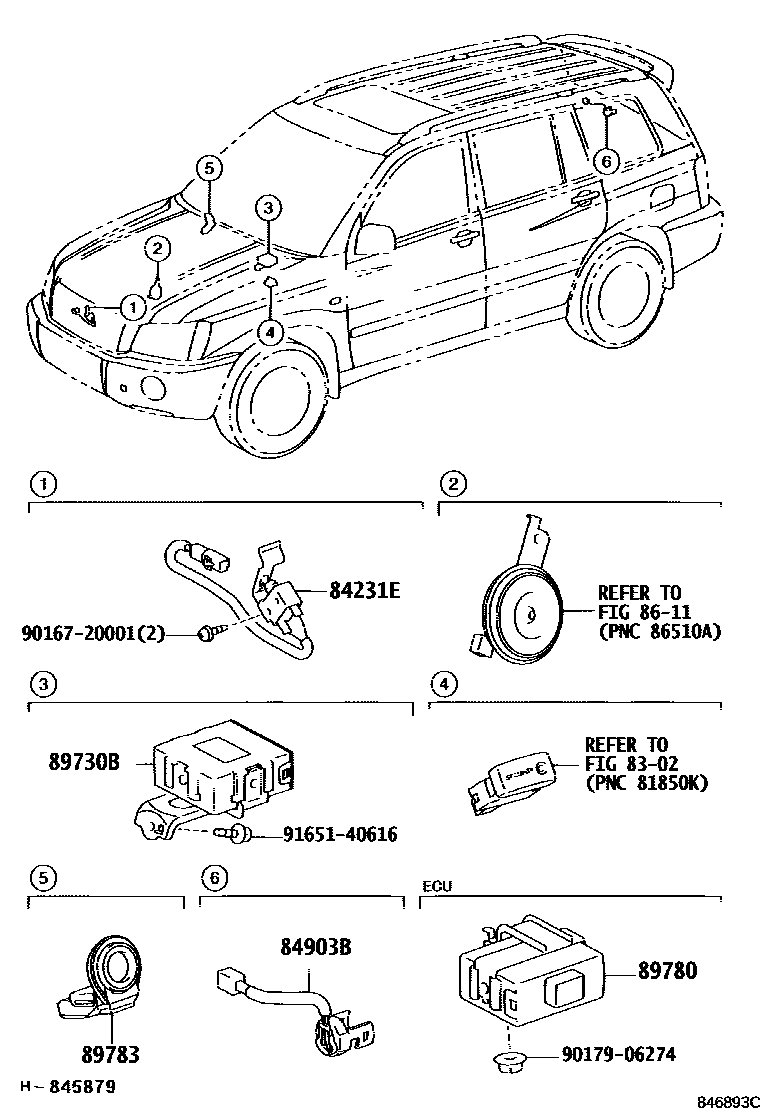

ANTI-THEFT DEVICE

8302INDICATOR

→ Go to FIG 83-02

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-48080iMHU28200503-200705

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-48010iMHU28200503-200705

8611HORN

→ Go to FIG 86-11

89730BCOMPUTER ASSY, THEFT WARNING

main89730-48050iMHU28200503-200606

main89730-48070iMHU28200606

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-48030iMHU28200503-200606

main89780-48060iMHU28200606

89783AMPLIFIER, TRANSPONDER KEY

main89783-48080iMHU28200503

9016720001

main90167-20001

9017906274

main90179-06274

9165140616

main91651-40616

10 parts on this diagram · 1 diagram in section
