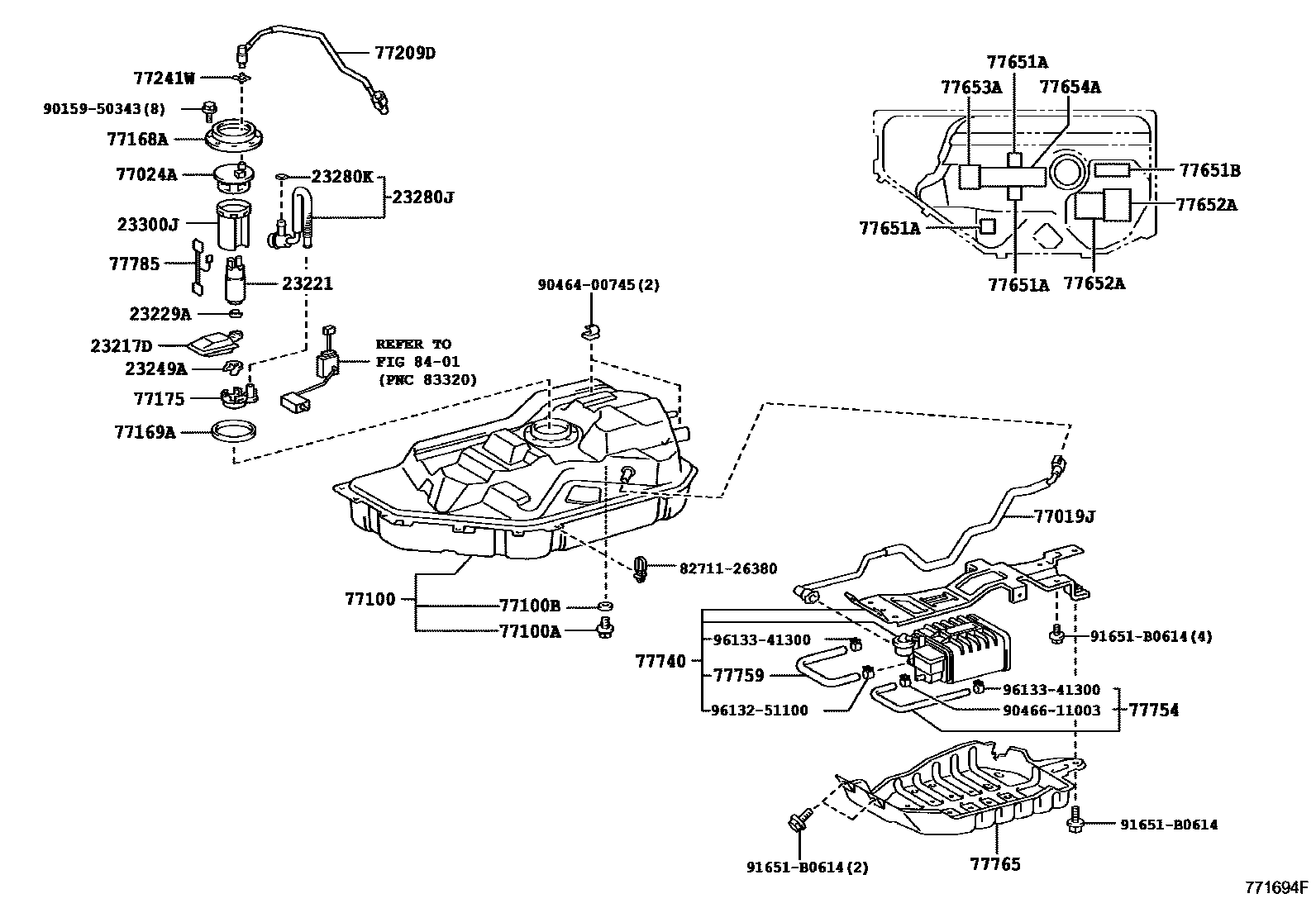

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23229ACLIP(FOR FUEL PUMP FILTER)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
77024APLATE SUB-ASSY, FUEL SUCTION
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77241WCLIP, TUBE JOINT
77651ACUSHION, FUEL TANK, NO.1
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
sub77652-33010
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77740CANISTER ASSY, CHARCOAL
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
77759HOSE, CHARCOAL CANISTER
77765PROTECTOR, CHARCOAL CANISTER
77785HARNESS, FUEL PUMP
8401
8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-26380
9015950343
main90159-50343
9046400745
main90464-00745
9046611003
main90466-11003
91651B0614
main91651-B0614
9613251100
main96132-51100
9613341300
main96133-41300
35 parts on this diagram · 3 diagrams in section
