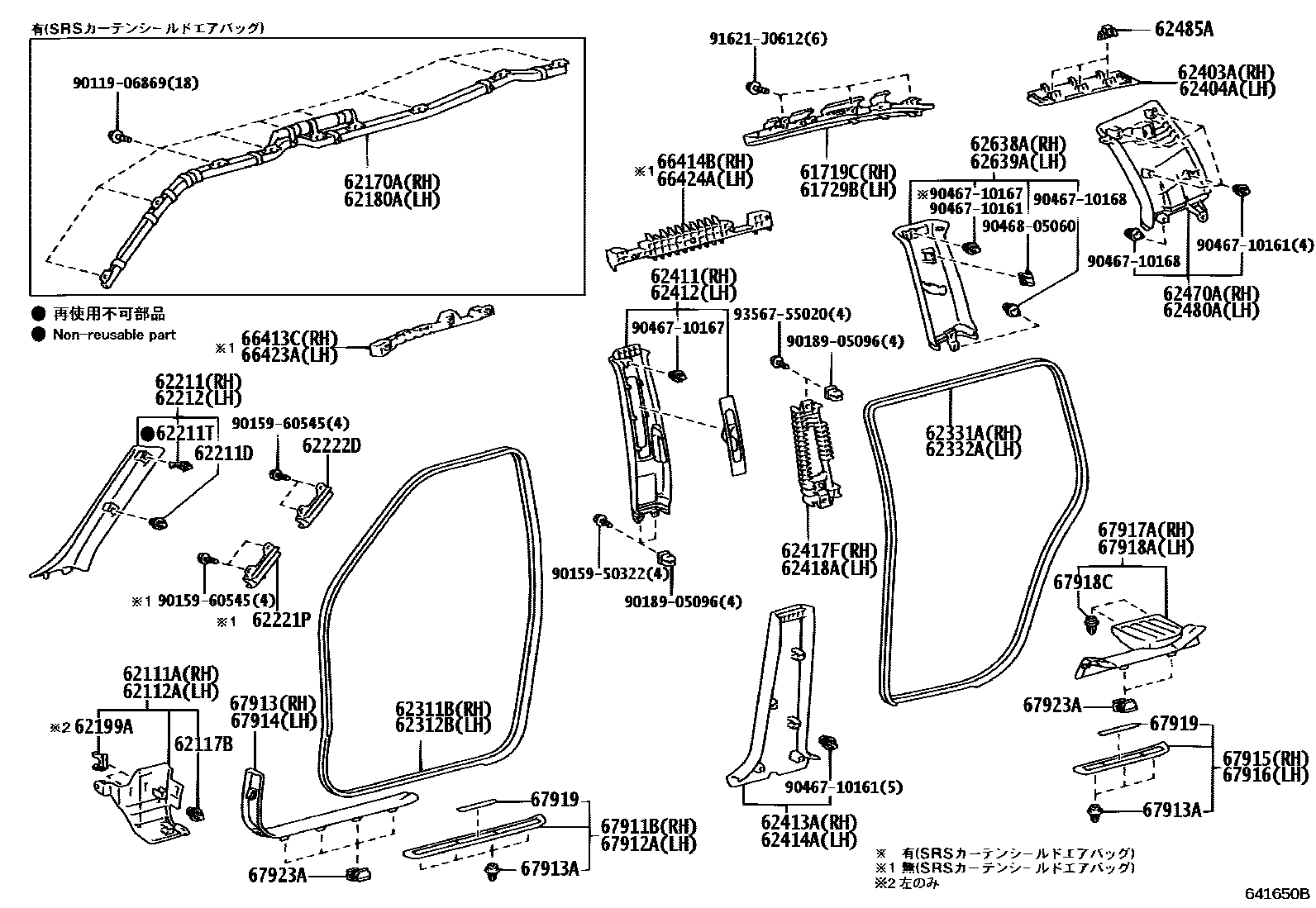

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
61719CBRACKET, ROOF SIDE RAIL, RH
61729BBRACKET, ROOF SIDE RAIL, LH
62111ATRIM SUB-ASSY, COWL SIDE, RH
BLACK,TRIM2#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM2#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62199AHOLDER, FUSEE
62211GARNISH, FRONT PILLAR, RH
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
62221PSPACER, FRONT PILLAR, NO.1 RH
62222DSPACER, FRONT PILLAR, NO.2 RH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM2#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM2#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
BLACK,TRIM2#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
BLACK,TRIM2#
62403AGARNISH SUB-ASSY, ROOF SIDE RAIL, RH
GRAY,TRIM2#
62404AGARNISH SUB-ASSY, ROOF SIDE RAIL, LH
GRAY,TRIM2#
62411GARNISH, CENTER PILLAR, RH
GRAY,TRIM2#
62412GARNISH, CENTER PILLAR, LH
GRAY,TRIM2#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM2#
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM2#
62417FPAD, CENTER PILLAR GARNISH, RH
62418APAD, CENTER PILLAR GARNISH, LH
62470AGARNISH ASSY, ROOF SIDE, INNER RH
GRAY,TRIM2#
62480AGARNISH ASSY, ROOF SIDE, INNER LH
GRAY,TRIM2#
62485ARETAINER, ROOF SIDE INNER GARNISH
62638AGARNISH, QUARTER PILLAR, RH
62639AGARNISH, QUARTER PILLAR, LH
66413CSPACER, SIDE RAIL, FRONT RH
66414BSPACER, SIDE RAIL, REAR RH
66423ASPACER, SIDE RAIL, FRONT LH
66424ASPACER, SIDE RAIL, REAR LH
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM2#
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#
67918CCLIP(FOR REAR SCUFF PLATE)
67919ORNAMENT, DOOR SCUFF
67923ACLAMP, DOOR SCUFF PLATE, NO.1
9011906869
main90119-06869
9015950322
main90159-50322
9015960545
main90159-60545
9018905096
main90189-05096
9046710161
main90467-10161
9046710167
main90467-10167
9046710168
main90467-10168
9046805060
main90468-05060
91621J0612
main91621-J0612
9356755020
main93567-55020
57 parts on this diagram · 1 diagram in section
