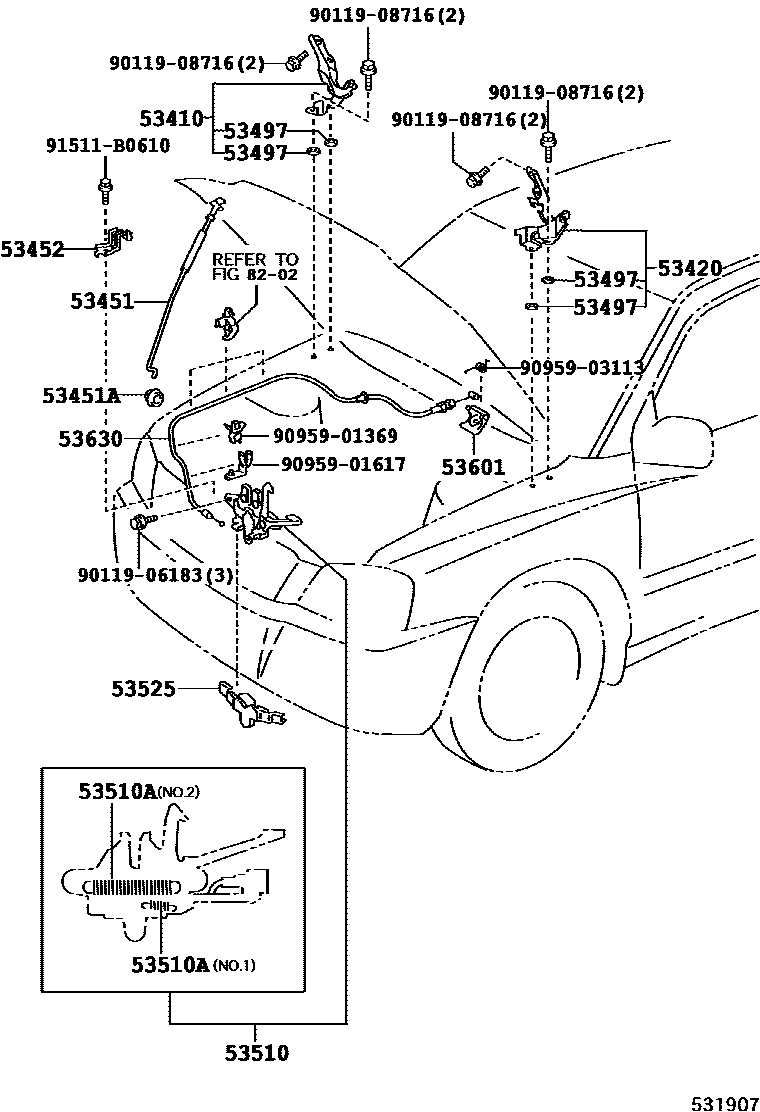

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-48020iMHU28200503-200705

53420HINGE ASSY, HOOD, LH

main53420-48020iMHU28200503-200705

53451ROD, HOOD SUPPORT

main53440-48040iMHU28200503

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15027iMHU28200503

53452HOLDER, HOOD STAY

main53452-48020iMHU28200503

53497PAD, HOOD HINGE, NO.1

main53497-50020×4iMHU28200503

53510LOCK ASSY, HOOD

main53510-48100iMHU28200503

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iMHU28200503

main90506-20065iMHU28200503

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-48010iMHU28200503

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-22010-C0iMHU28200503-200705

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-48020iMHU28200503

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906183

main90119-06183

9011908716

main90119-08716

9095901369

main90959-01369

9095901617

main90959-01617

9095903113

main90959-03113

91511B0610

main91511-B0610

18 parts on this diagram · 1 diagram in section
