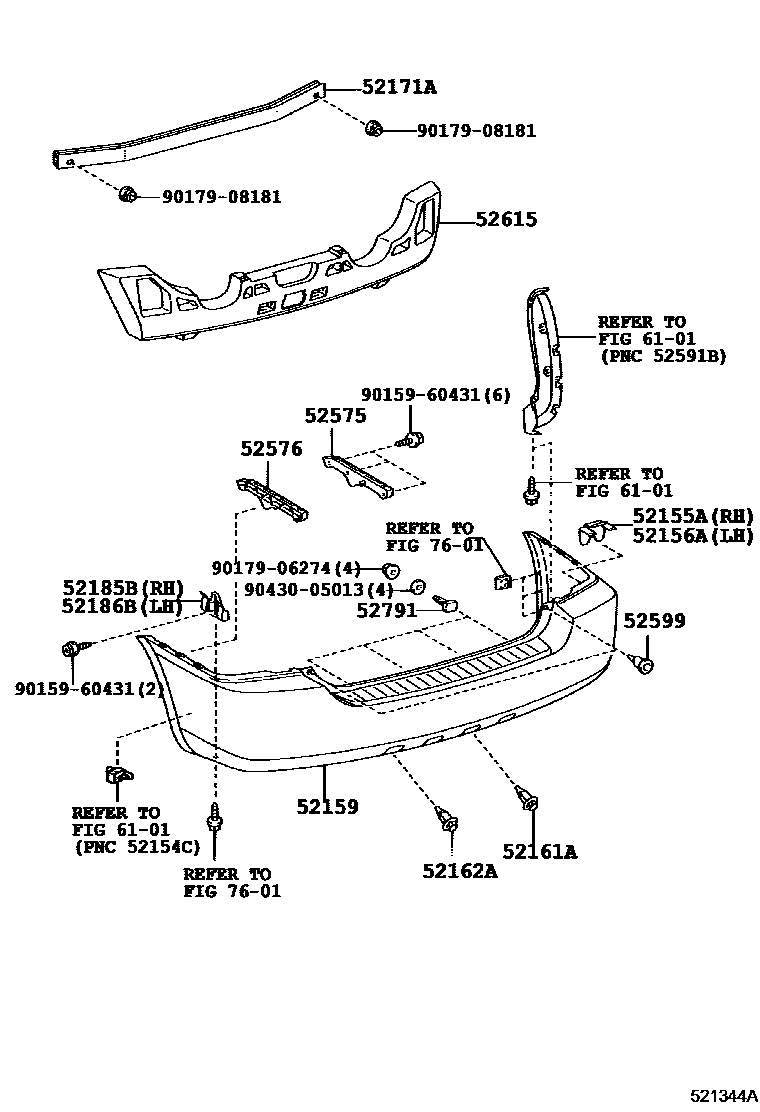

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-16120iMHU28200503

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-16120iMHU28200503

52159COVER, REAR BUMPER

main52159-48070-A1iMHU28200503-200705

WHITE PEARL CS.,062

main52159-48070-B0iMHU28200503-200705

SILVER ME.,1C0

main52159-48070-C0iMHU28200503-200705

BLACK,202

main52159-48070-E1iMHU28200503-200606

LT.BROWN M.M.,4S5

main52159-48070-E2iMHU28200503-200705

COPPER BROWN MC.,4S6

main52159-48070-G1iMHU28200606-200705

LT.OLIVE M.M.,6T1

52161APIECE, REAR BUMPER, RH

main52161-16010iMHU28200503

52162APIECE, REAR BUMPER, LH

main52161-16010iMHU28200503

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-48100iMHU28200503-200705

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-48020iMHU28200503

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-48020iMHU28200503

52575RETAINER, REAR BUMPER SIDE, RH

main52575-48010iMHU28200503

52576RETAINER, REAR BUMPER SIDE, LH

main52576-48010iMHU28200503

52599STOPPER, REAR BUMPER, UPPER

main52599-48020×2iMHU28200503

52615ABSORBER, REAR BUMPER ENERGY

main52615-48090iMHU28200503

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-33010×4iMHU28200503

6101SIDE MEMBER

→ Go to FIG 61-01

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9015960431

main90159-60431

9017906274

main90179-06274

9017908181

main90179-08181

9043005013

main90430-05013

19 parts on this diagram · 1 diagram in section
