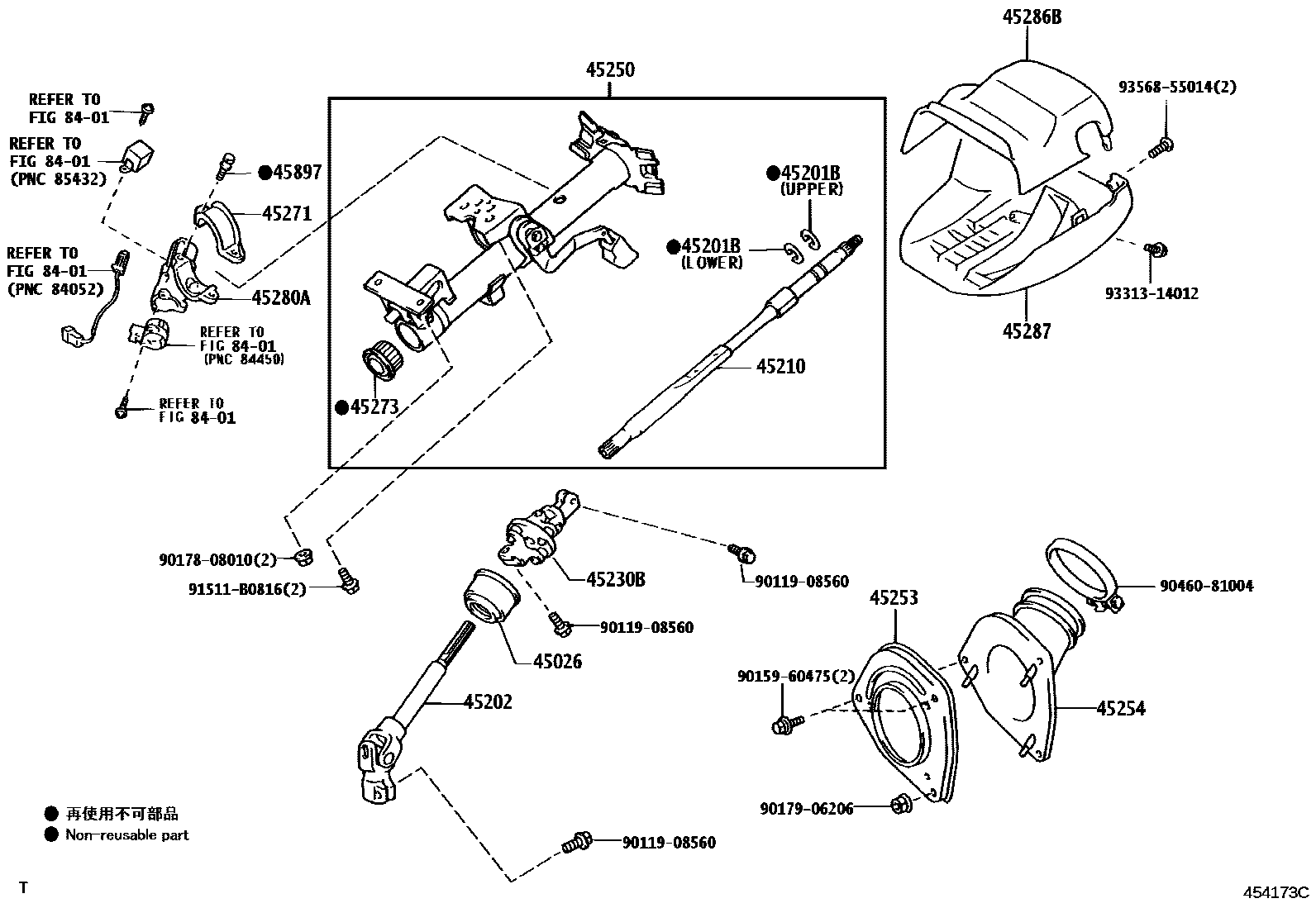

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45202SHAFT SUB-ASSY, STEERING INTERMEDIATE
45210SHAFT ASSY, STEERING MAIN
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45250COLUMN ASSY, STEERING
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
8401SWITCH & RELAY & COMPUTER
9011908560
main90119-08560
9015960475
main90159-60475
9017808010
main90178-08010
9017906206
main90179-06206
9046081004
main90460-81004
91511B0816
main91511-B0816
9331314012
main93313-14012
9356855014
main93568-55014
23 parts on this diagram · 1 diagram in section
