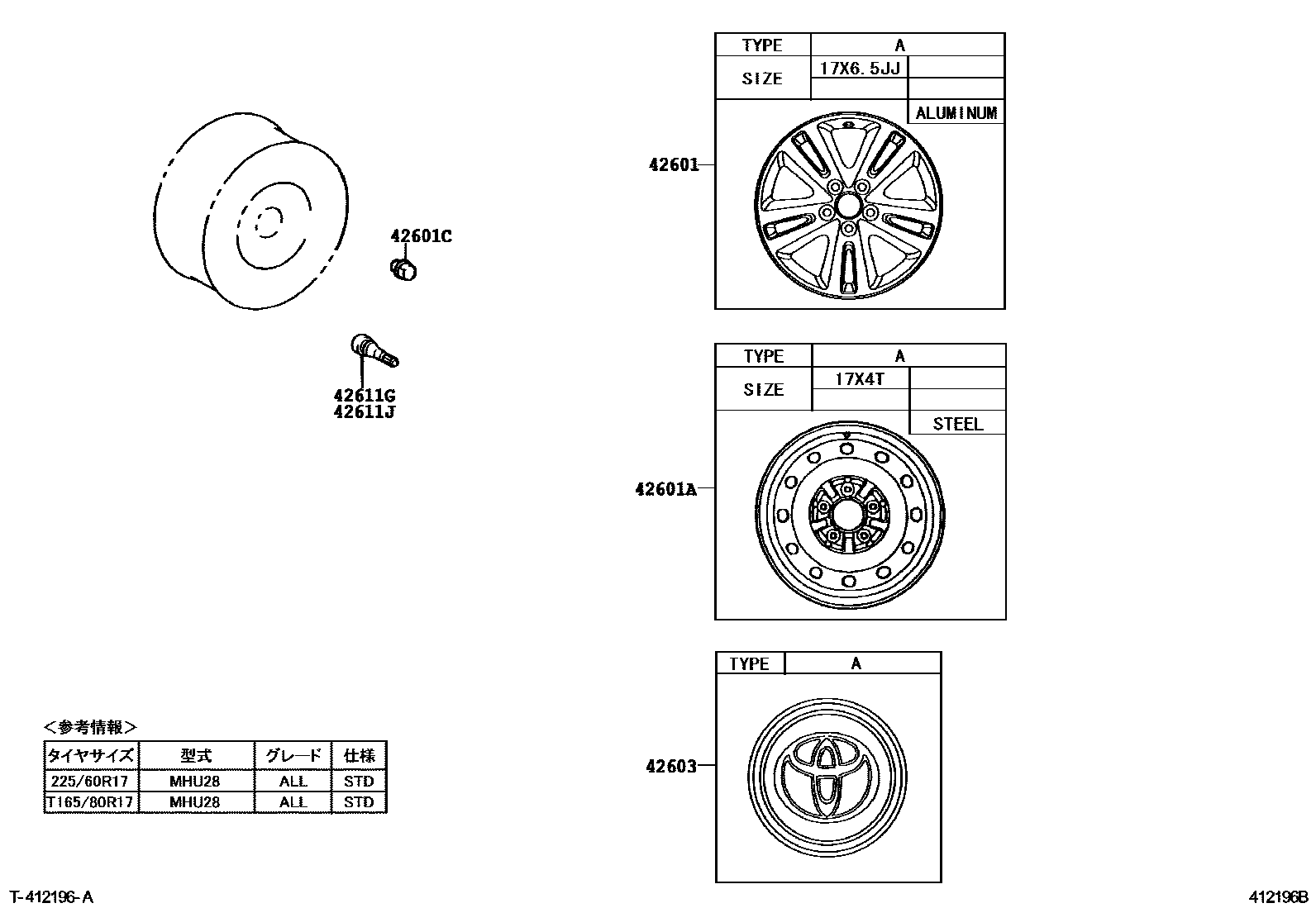

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-48320×4iMHU28200503

42601AWHEEL, DISC (FOR SPARE)

main42611-50090iMHU28200503

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iMHU28200503

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-33090×4iMHU28200503

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iMHU28200503

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMHU28200503

6 parts on this diagram · 2 diagrams in section
