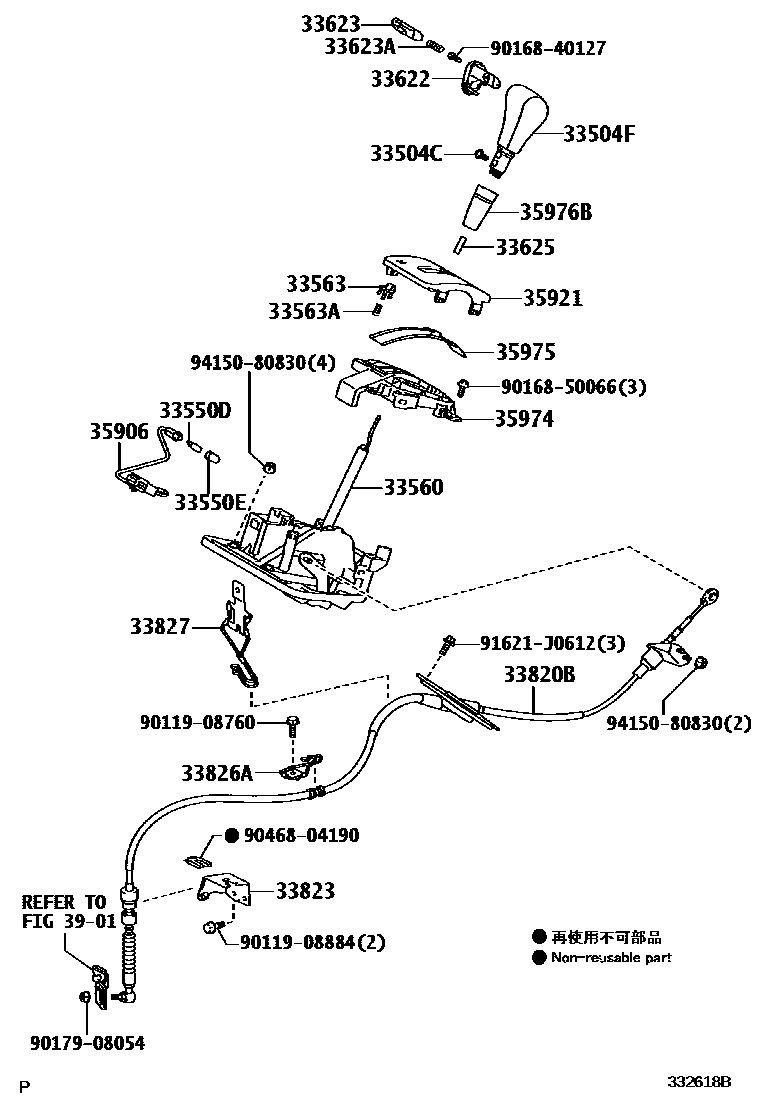

SHIFT LEVER & RETAINER

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40238iMHU28200503

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-48020-C0iMHU28200503-200705

BLACK,TRIM2#

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iMHU28200503

33550ECAP, POSITION INDICATOR LAMP

main90339-04055iMHU28200503

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-48270iMHU28200503

33563BUTTON, SHIFT LOCK RELEASE

main33563-48030iMHU28200503

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-06089iMHU28200503

33622COVER, SHIFT LEVER KNOB, NO.1

main33622-48060-C0iMHU28200503-200705

BLACK,TRIM2#

33623BUTTON, SHIFT LEVER KNOB

main33623-48010-C0iMHU28200503-200705

BLACK,TRIM2#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07116iMHU28200503

33625SLEEVE, SHIFT LEVER KNOB

main33625-48010iMHU28200503

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-48210iMHU28200503

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-48070iMHU28200503-200705

33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-48060iMHU28200503

33827BRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33827-48010iMHU28200503

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-48060iMHU28200503

35921PLATE, CONTROL POSITION INDICATOR

main35921-48100iMHU28200503

35974HOUSING, POSITION INDICATOR, LOWER

main35974-48030iMHU28200503

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-48020iMHU28200503

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main33622-48010iMHU28200503-200705

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

9011908760

main90119-08760

9011908884

main90119-08884

9016840127

main90168-40127

9016850066

main90168-50066

9017908054

main90179-08054

9046804190

main90468-04190

91621J0612

main91621-J0612

9415080830

main94150-80830

29 parts on this diagram · 1 diagram in section
