STANDARD TOOL

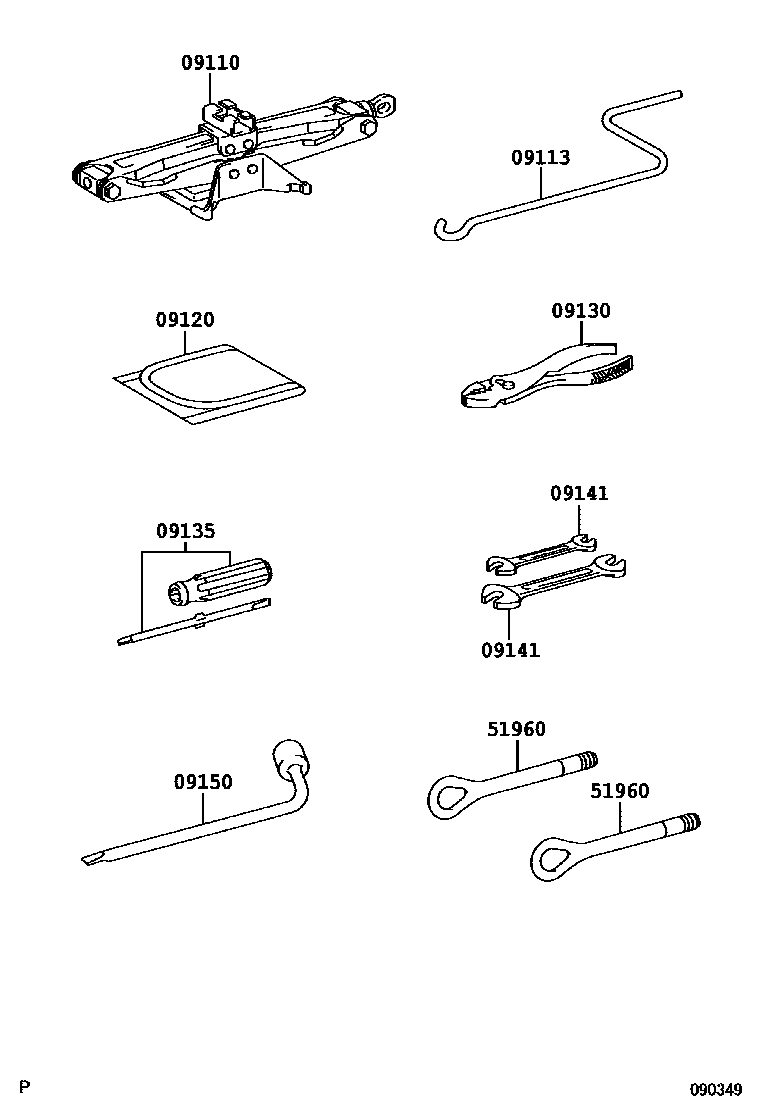

Parts diagram

09110JACK ASSY

main09111-0W090i200503-200703

main09111-0W091i200704-200705

09113HANDLE, JACK

main09113-06020i200503

09120BAG, TOOL

main09120-48040i200503

09130PLIERS

main99913-11500i200503

09135DRIVER, SCREW

main99915-10700i200503

09141SPANNER

main99914-10810i200503

main99914-11214i200503

09150WRENCH, HUB NUT BOX

main09150-40010i200503

51960HOOK ASSY, FRONT

main51961-48030×2i200503

8 parts on this diagram · 1 diagram in section
