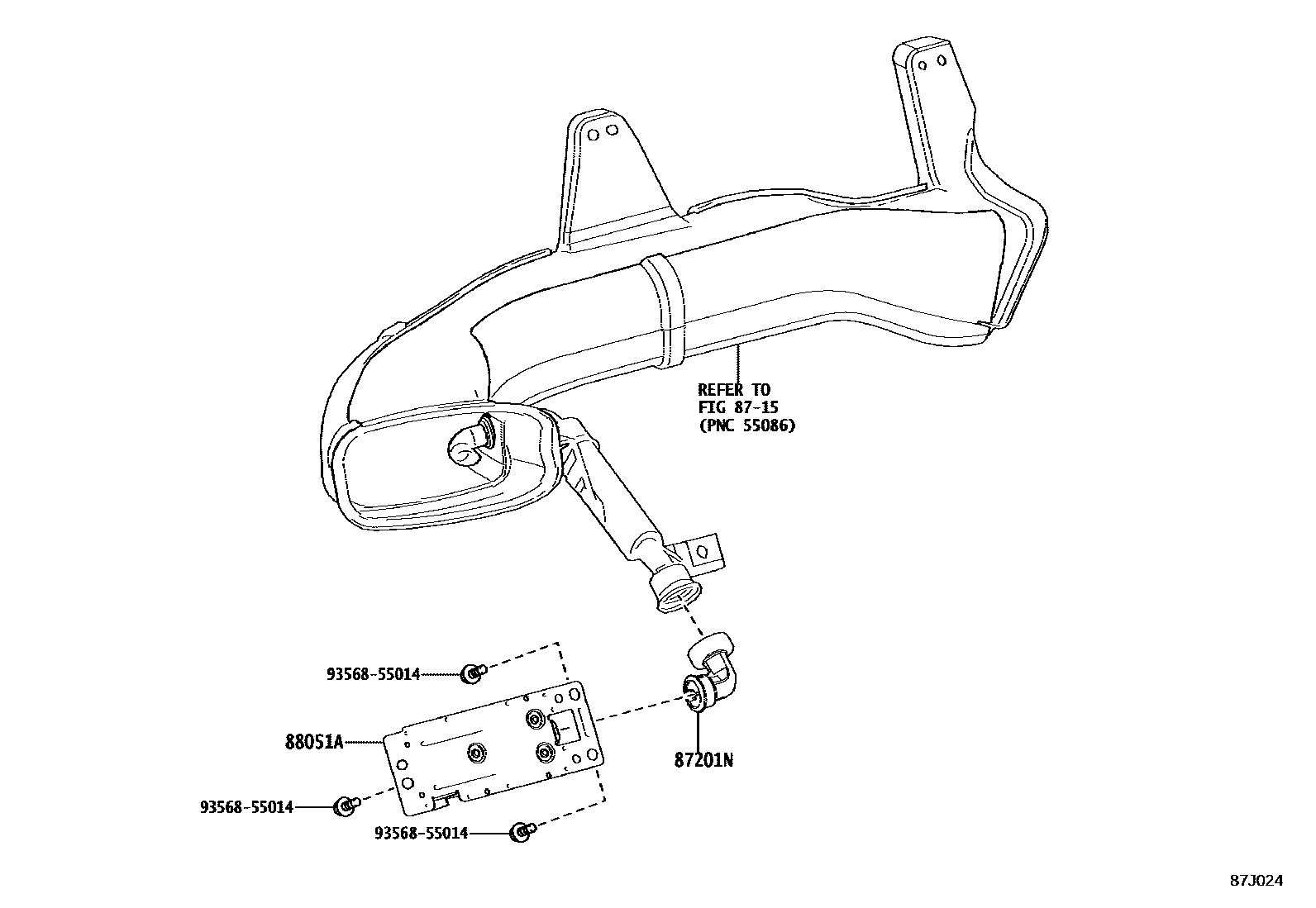

AIR PURIFIER OR ION GENERATOR

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87201NDUCT SUB-ASSY, AIR

main87201-48270iAXUH8#,MXUA8#..G,Z202006-202210

88051AGENERATOR SUB-ASSY,ION

main88051-48010iAXUH8#,MXUA8#..G,Z202006-202210

9356855014

main93568-55014

4 parts on this diagram · 1 diagram in section
